3.5 kW Off-Grid Solar System (5kW Energy Storage with 3.5kW Inverter + 1600W Solar Array)
- Comprehensive Solution: Inverter, battery, solar panels, and all necessary equipment.
- High-Capacity Storage: Expandable Growatt 5kW battery up to 400kWh.
- High-Performance Panels: 1600W total from ROCKSOLAR 200W panels.
- Efficient Inverter: Growatt Off-Grid Inverter for reliable power.
- Durable Construction: Weather-resistant panels with aluminum frames.
- Safe and Reliable: Advanced BMS and protective inverter features.
- Flexible Installation: Easy setup with pre-drilled holes and stackable battery.
- Remote Management: WIFI/GPRS monitoring included.
- Long Lifespan: 25+ years for panels, 5-year battery and inverter warranty.
- Environmental Benefit: Reduce carbon footprint with solar power.
- Scalable System: Expandable with more batteries or panels.
- All-Weather Performance: Effective under various conditions.
3.5 kW Off-Grid Solar System (5kW Energy Storage with 3.5kW Inverter + 1600W Solar Array) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Free Shipping
Free Shipping
Orders Over $100? Shipping's On Us!
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Lifetime Customer Support
Lifetime Customer Support
Endless Support, Because You Matter.
Description
Description
Introducing the Ultimate Home Solar Storage Kit, a comprehensive and powerful solution for residential solar energy needs. This robust system combines the efficiency of the Growatt Off-Grid Storage Inverter SPF 3500TL LVM-US, the reliability of the Growatt AXE 5.0L-C1 5kW Battery, and the high-performance 1600W Rigid Solar Panels to provide an unrivaled off-grid experience.
Engineered for seamless integration, the system ensures that your home can run independently of the grid, whether as a primary power source or as a backup during outages. It's an ideal setup for environmentally conscious homeowners looking to reduce their carbon footprint and harness the power of the sun.
Product Features

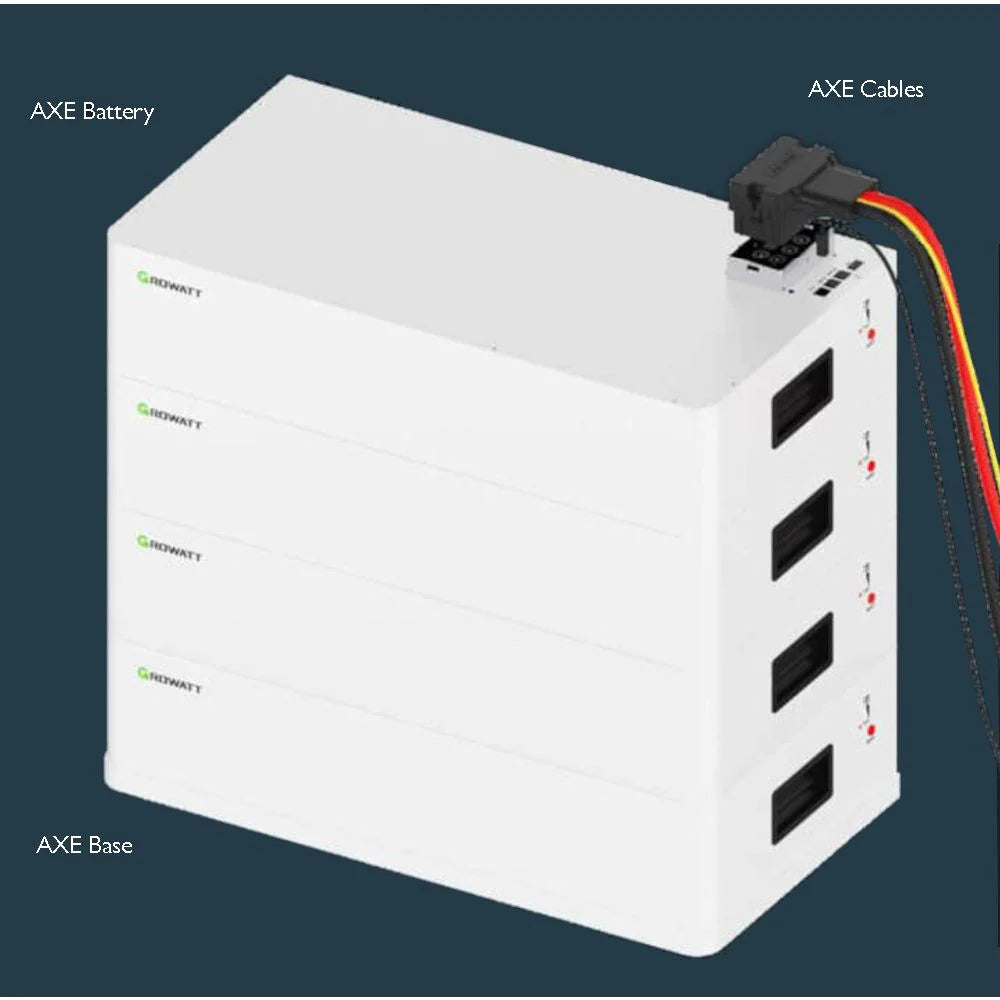

Growatt AXE 5.0L-C1 5kW Battery:
- Modular 5kWh capacity, expandable in parallel for up to 400kWh
- Cobalt-free LiFePO4 battery cells for safety and longevity
- Quick, cable-free stacking installation
- Remote management for firmware updates and diagnostics via WiFi or GRPS
- Integrated BMS for real-time monitoring and protection
- 10-year warranty ensuring peace of mind
Growatt Off-Grid Storage Inverter SPF 3500TL LVM-US:
- Highly versatile with 3500W rated power
- Integrated MPPT charge controller for maximum solar efficiency
- Supports parallel operation up to 20kW and Split phase 120/240Vac output with two in parrallel.
- Flexible scheduling for inverter charging and discharging
- Configurable grid or solar input priority and Generator Connection ready
- WIFI/GPRS remote monitoring (WiFi Module included)
ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel (x8):
- High-efficiency monocrystalline cells for superior performance
- 200W power output per panel with a total array power of 1600W
- Durable aluminum frame and anti-reflective glass for weather resistance
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact on performance
- Over 25 years of service life with a 10-year manufacturer warranty
- Eco-friendly power generation to reduce carbon footprint
With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy the assurance of a reliable power supply. Experience the combined benefits of modern solar technology and battery storage in one seamless package.
SPECIFICATIONS
SPECIFICATIONS
Growatt AXE 5.0L-C1 5kW Battery | Details |
---|---|
Model | Growatt AXE 5.0L-C1 |
Energy Capacity | 5.0kWh |
Max Charge/Discharge Power | 3kW |
Max Charge/Discharge Current | 60A |
Dimensions | 650 x 350 x 165mm (W x D x H) |
Weight | 42kg |
Nominal Voltage | 51.2V |
Warranty | 5 years |
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
Operating Voltage Range | 48 - 57.6V |
Installation | Floor installation |
Operation Temperature | 0°C-50°C/32-122°F |
DoD | 92% |
Parallel Capability | Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh) |
Communication Port | CAN/RS485 |
Performance Warranty | 10 years |
Certification | CE, ROHS, UL1973+FCC, UN38.3 + IP65 |
Growatt Off-Grid Storage Inverter SPF 3000~3500TL LVM-US | Details |
---|---|
Battery Voltage | 48VDC |
Battery Type | Lithium/Lead-acid |
Inverter Output | Rated Power: 3500VA 3500W Parallel Capability: Yes, 6 units maximum AC Voltage Regulation (Battery Mode): 100Vac/110Vac/120Vac @ 50/60Hz Surge Power: 6000VA Efficiency (Peak): 90% Waveform: Pure Sine Wave Transfer Time: 10ms typical, 20ms max |
Solar Charger | Maximum PV Array Power: 4000W MPPT Range @ Operating Voltage: 120VDC – 225VDC Maximum PV Array Open Circuit Voltage: 280VDC Maximum Solar Charge Current: 80A |
AC Charger | Charge Current: 40A AC Input Voltage: 120VAC Selectable Voltage Range: 95-140VAC (For Personal Computers); 65-140VAC (For Home Appliances) Frequency Range: 50Hz/60Hz (Auto sensing) |
Physical | Protection Degree: IP20/NEMA Type1 Dimension (W/H/D): 330/485/135mm Net Weight: 12kg |
Operating Environment | Humidity: 5% to 95% Relative Humidity (Non-condensing) Operating Temperature: 0°C - 50°C (32°F - 122°F) Storage Temperature: -15°C - 60°C (-5°F - 140°F) |
Warranty | 2 Years |
ROCKSOLAR Black Diamond 200W 12V Monocrystalline Rigid Solar Panel Specification | Details |
---|---|
Panel Type | Monocrystalline |
Power Output | 200W |
System Voltage | 12V |
Cell Efficiency | 20-22% |
Frame Material | Aluminum |
Dimensions | 1480mm x 670mm |
Weight | approx. 25-30 lbs |
Operating Temperature | -40°C to +85°C |
Waterproof Rating | IP65 |
Front Glass | High light transmittance, low-iron tempered glass |
Bypass Diodes | Integrated |
Connectors | MC4 |
Cable Length | Varies depending on the brand (approx. 3-6 ft) |
Mounting Hole Locations | Pre-drilled |
Service Life | 25 years or more |
Warranty | 10 years |
