6 KW Split phase 120/240Vac Off-Grid Solar System
- 6kW split-phase 120/240V off-grid solar power system for residential use
- 6000W Growatt SPF off-grid inverter with pure sine wave output
- 10kWh lithium battery storage system (Growatt or GSL Energy option)
- Supports both Growatt AXE 5.0L and GSL Energy LiFePO₄ batteries
- 4400W bifacial monocrystalline solar panel array for higher energy yield
- Expandable battery capacity to meet growing energy demands
- Advanced MPPT charge controller for maximum solar harvesting efficiency
- LiFePO₄ battery chemistry for enhanced safety and long service life
- Smart WiFi/GPRS monitoring for real-time system management
- Designed for off-grid homes, backup power, cabins, and rural properties
- Reliable operation during power outages and grid failures
- High durability components built for all-weather performance
- Reduces electricity bills and dependence on the utility grid
- Eco-friendly solar energy solution with reduced carbon footprint
6 KW Split phase 120/240Vac Off-Grid Solar System - Option 1: 2x Growatt AXE 5.0L 10.0Kwh Battery is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.

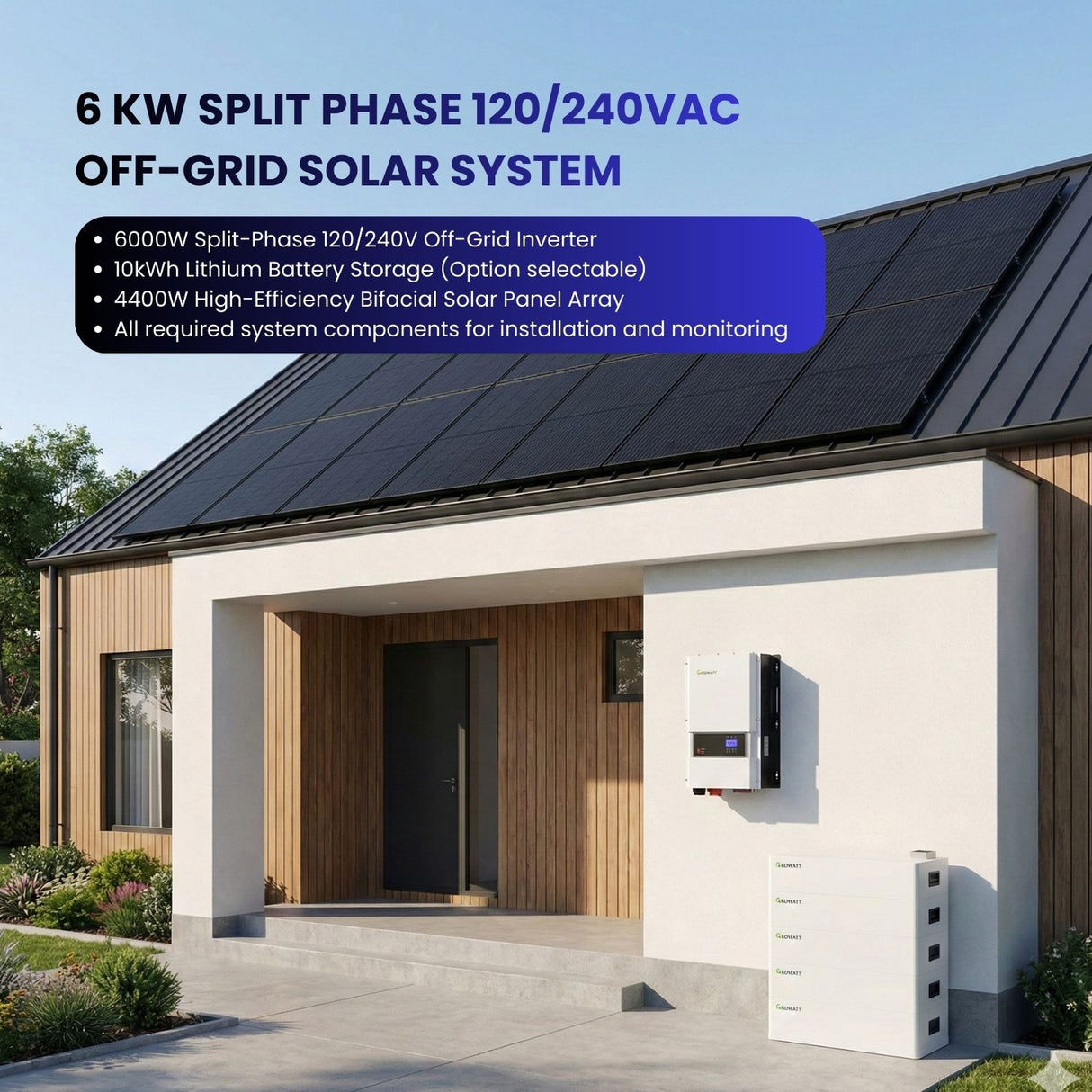

6 KW Split phase 120/240Vac Off-Grid Solar System
Description
Description

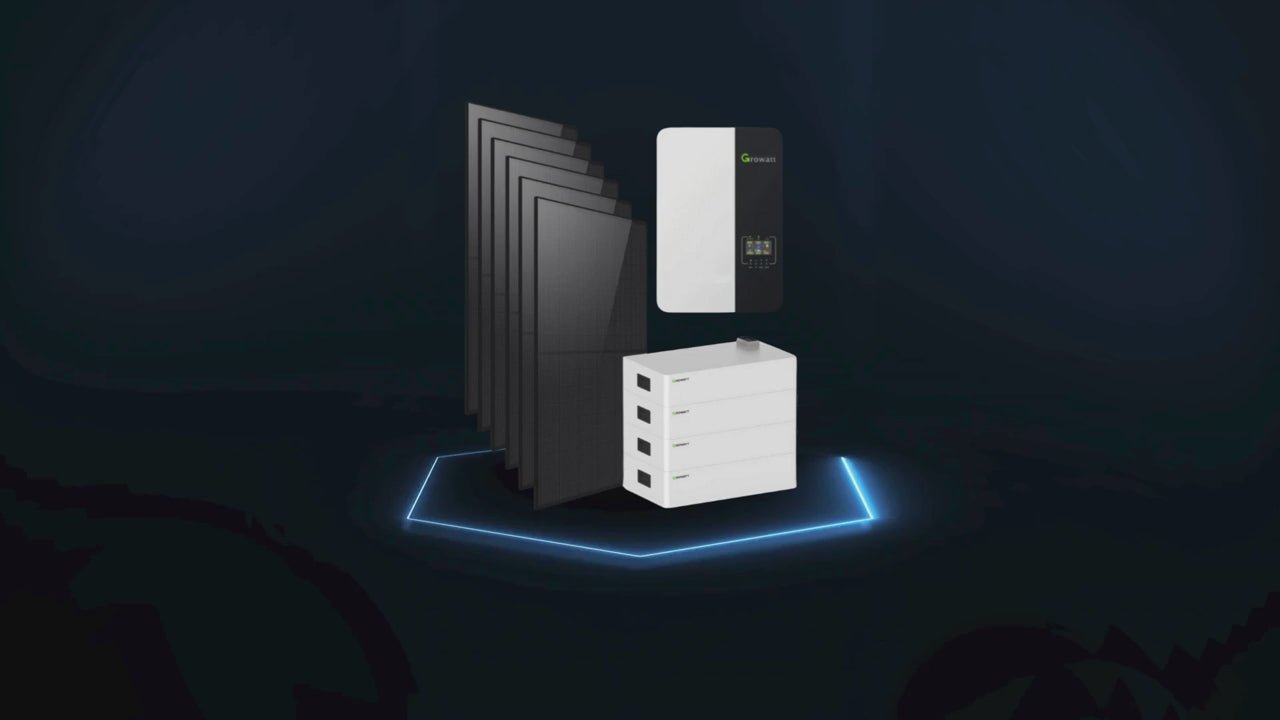

The 6kW Split Phase 120/240VAC Off-Grid Solar System is a complete, high-performance energy solution designed for residential homes, cabins, farms, and backup power applications. This system combines a Growatt 6000W off-grid inverter, 10kWh lithium battery storage, and a 4400W bifacial solar panel array to deliver reliable, scalable, and energy-independent power.
Engineered for seamless off-grid operation, the system supports both primary power generation and backup power during outages, making it ideal for homeowners looking to reduce grid dependence and energy costs while maintaining reliable electricity.

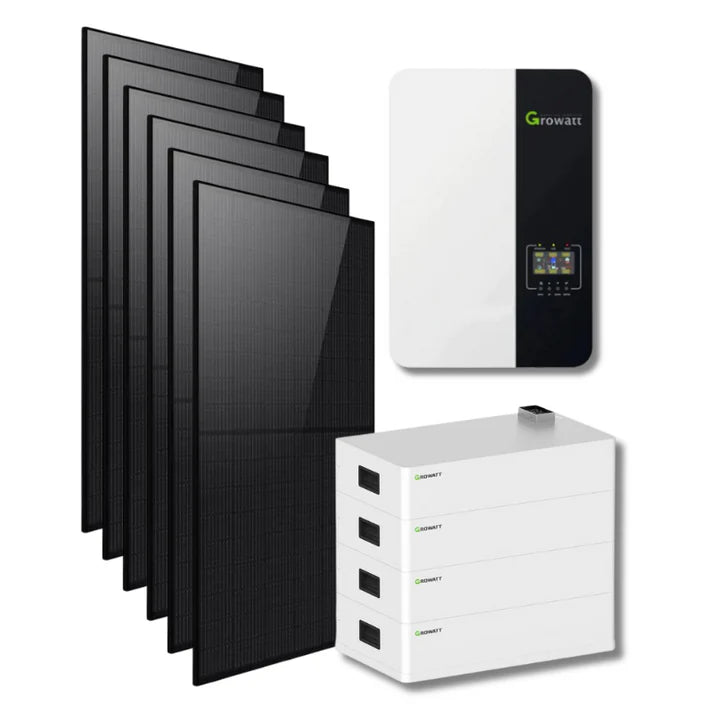

Complete System Includes
- 6000W Split-Phase 120/240V Off-Grid Inverter
- 10kWh Lithium Battery Storage (Option selectable)
- 4400W High-Efficiency Bifacial Solar Panel Array
- All required system components for installation and monitoring
Battery Storage Options (Selectable)

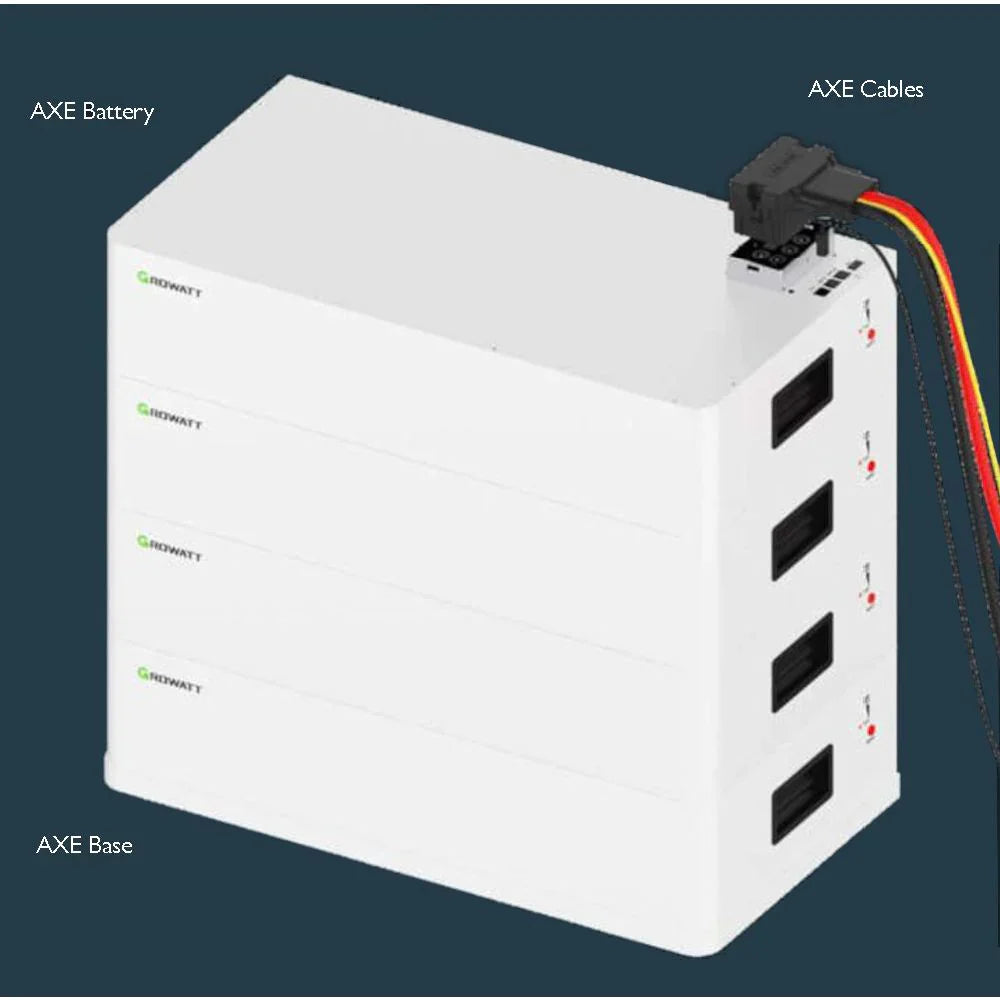

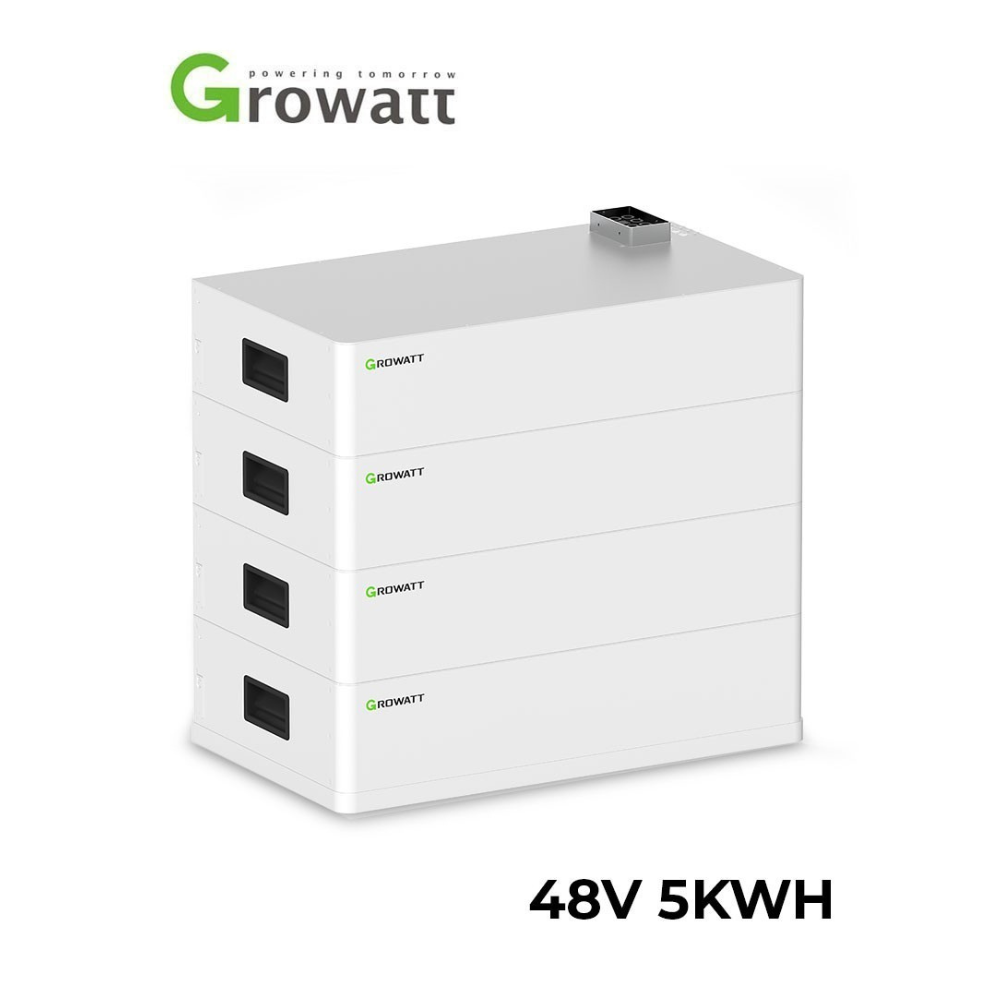

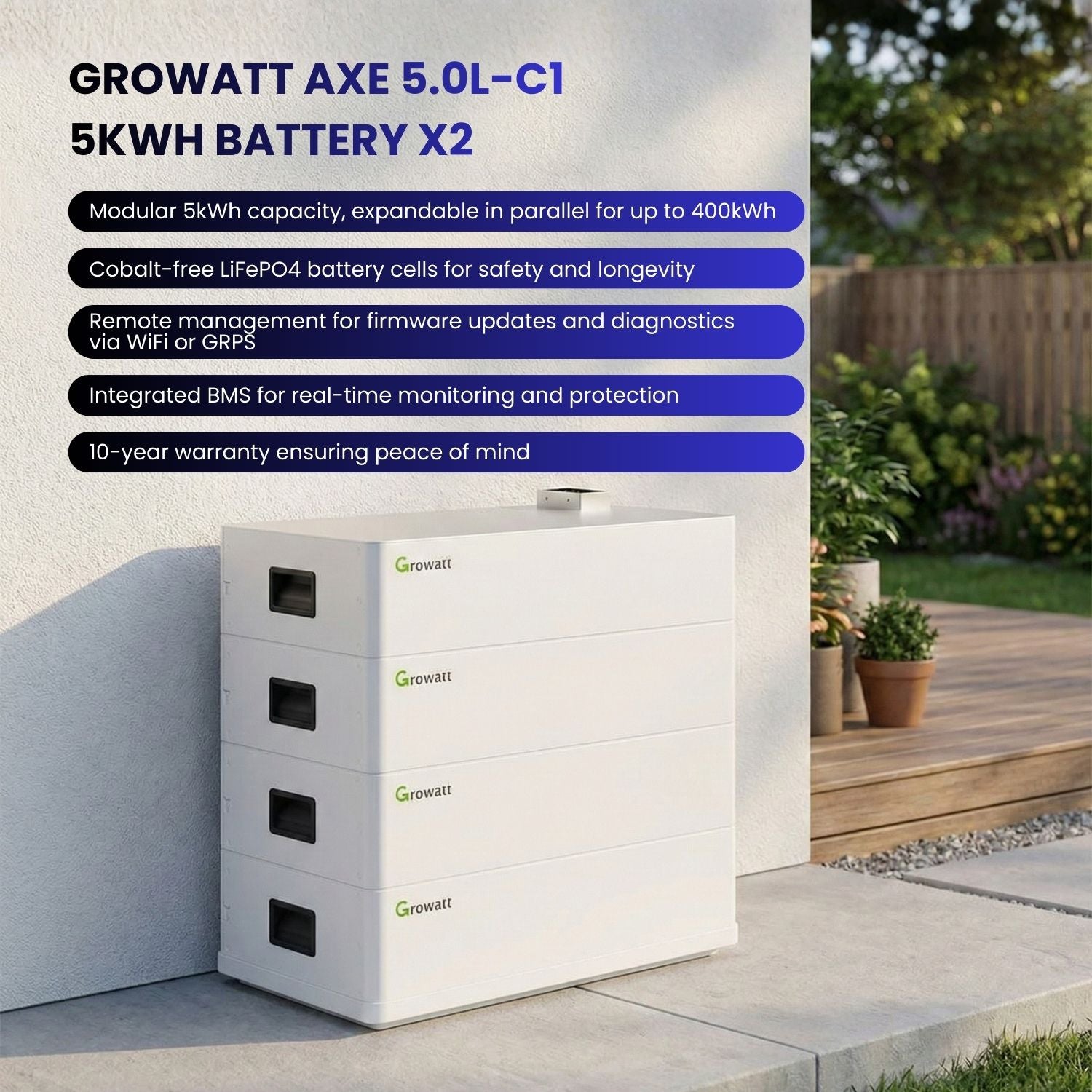

Option 1: Growatt AXE 5.0L Battery System (10kWh Total)
- 2 × Growatt AXE 5.0L 5kWh lithium batteries
- Modular design expandable up to 400kWh
- Cobalt-free LiFePO₄ chemistry for safety and long life

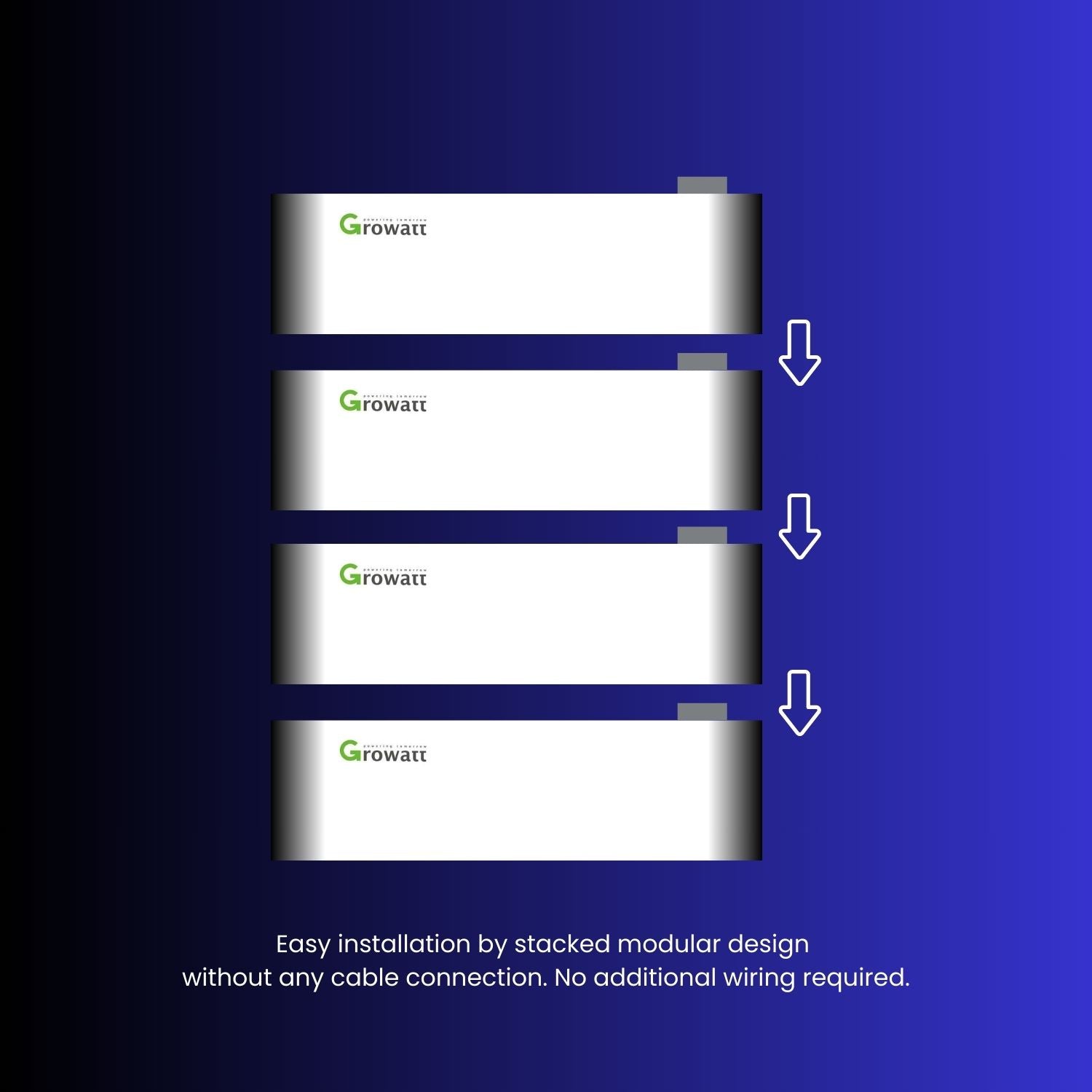

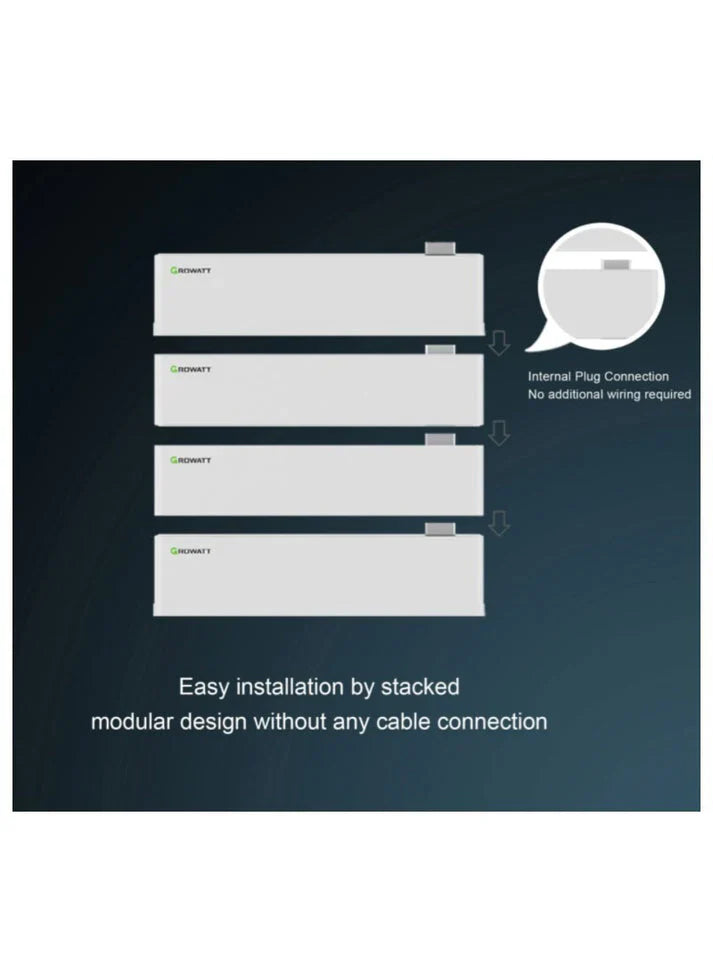

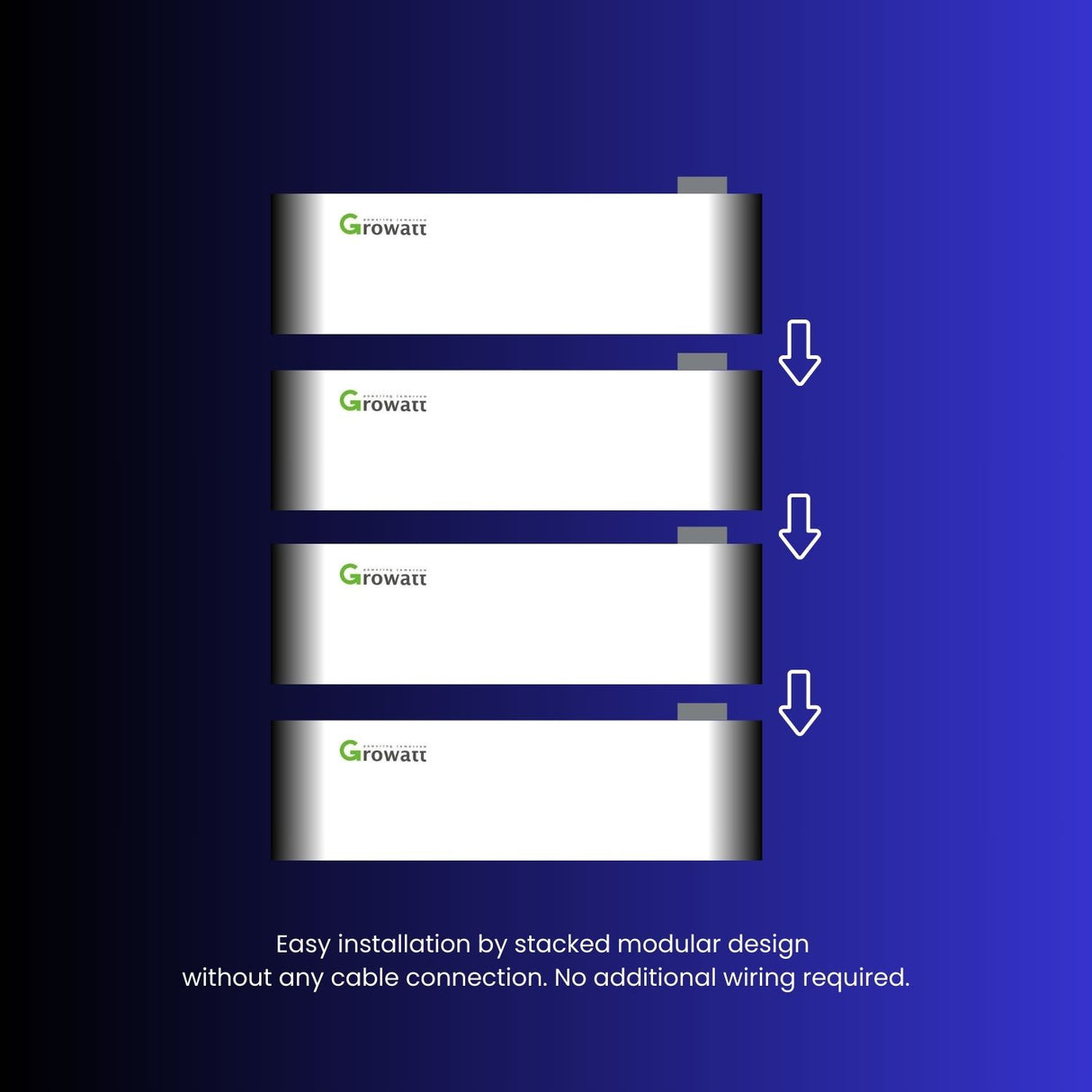

- Cable-free stacking installation
- Integrated BMS with WiFi / GPRS monitoring
- 10-year battery warranty

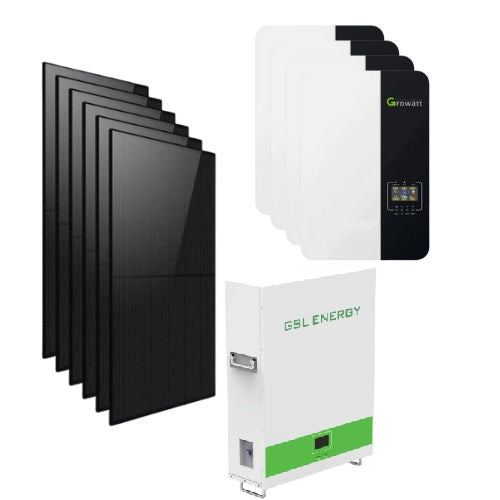

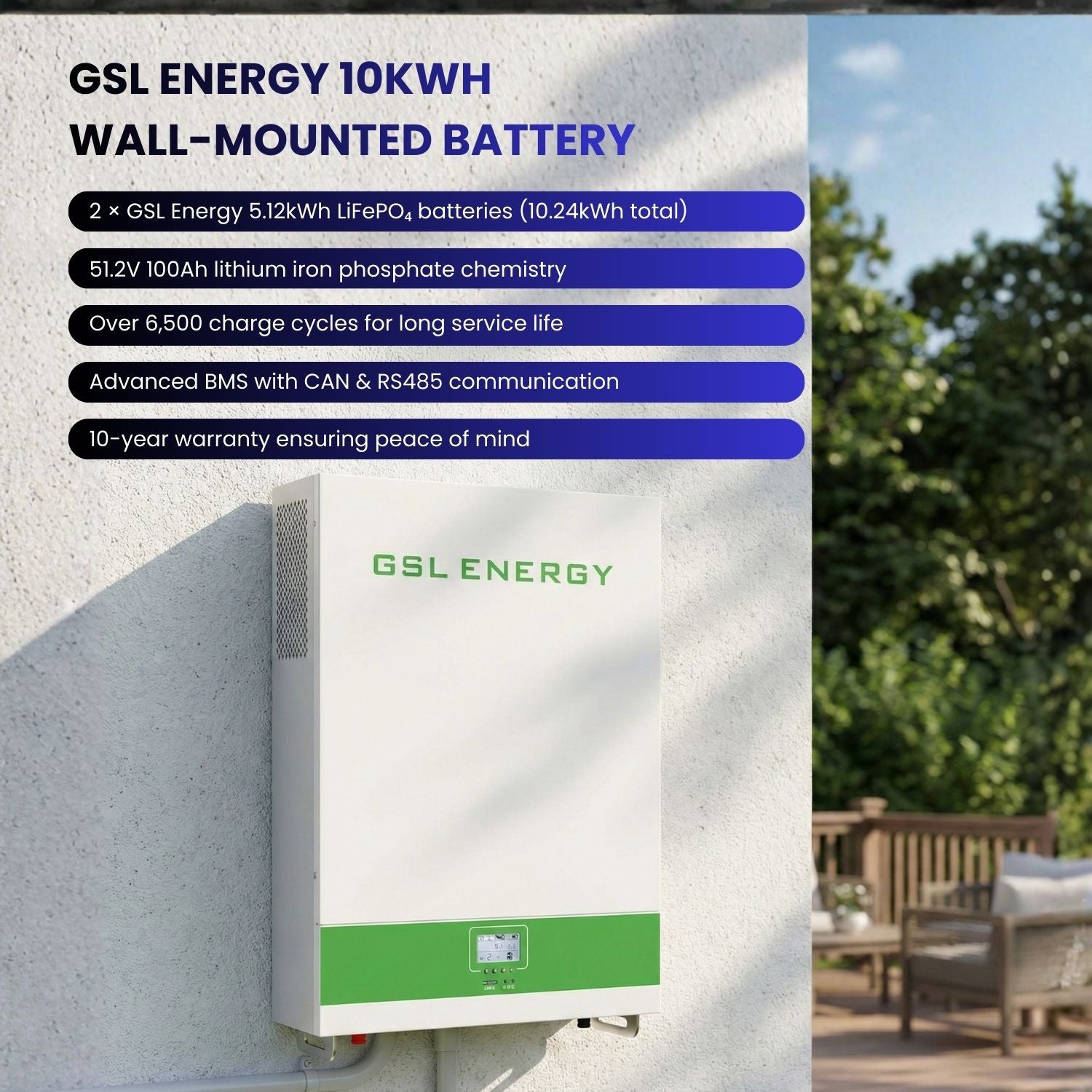

Option 2: GSL Energy 10kWh Wall-Mounted Battery
- 2 × GSL Energy 5.12kWh LiFePO₄ batteries (10.24kWh total)
- 51.2V 100Ah lithium iron phosphate chemistry
- Over 6,500 charge cycles for long service life
- Advanced BMS with CAN & RS485 communication
- Parallel expansion support up to 16 batteries
- Wall-mounted, compact, and professional design
- 10-year warranty

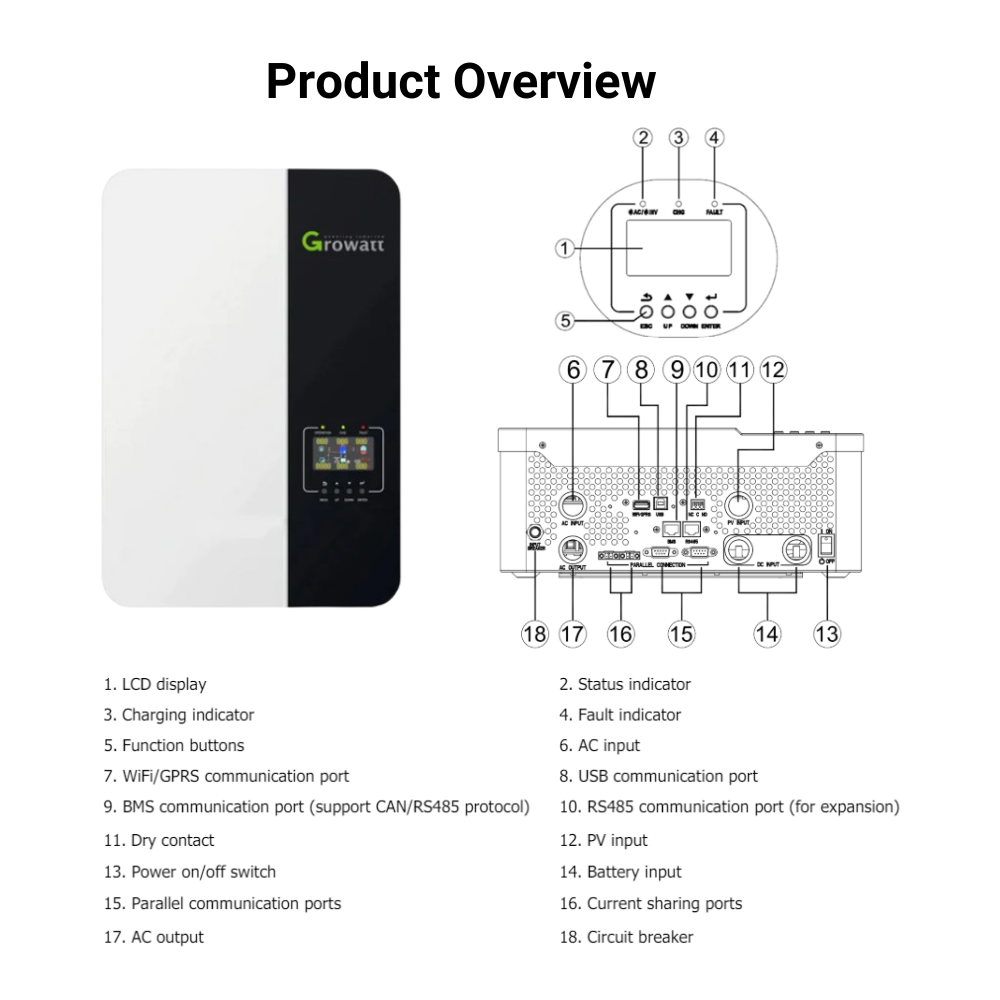

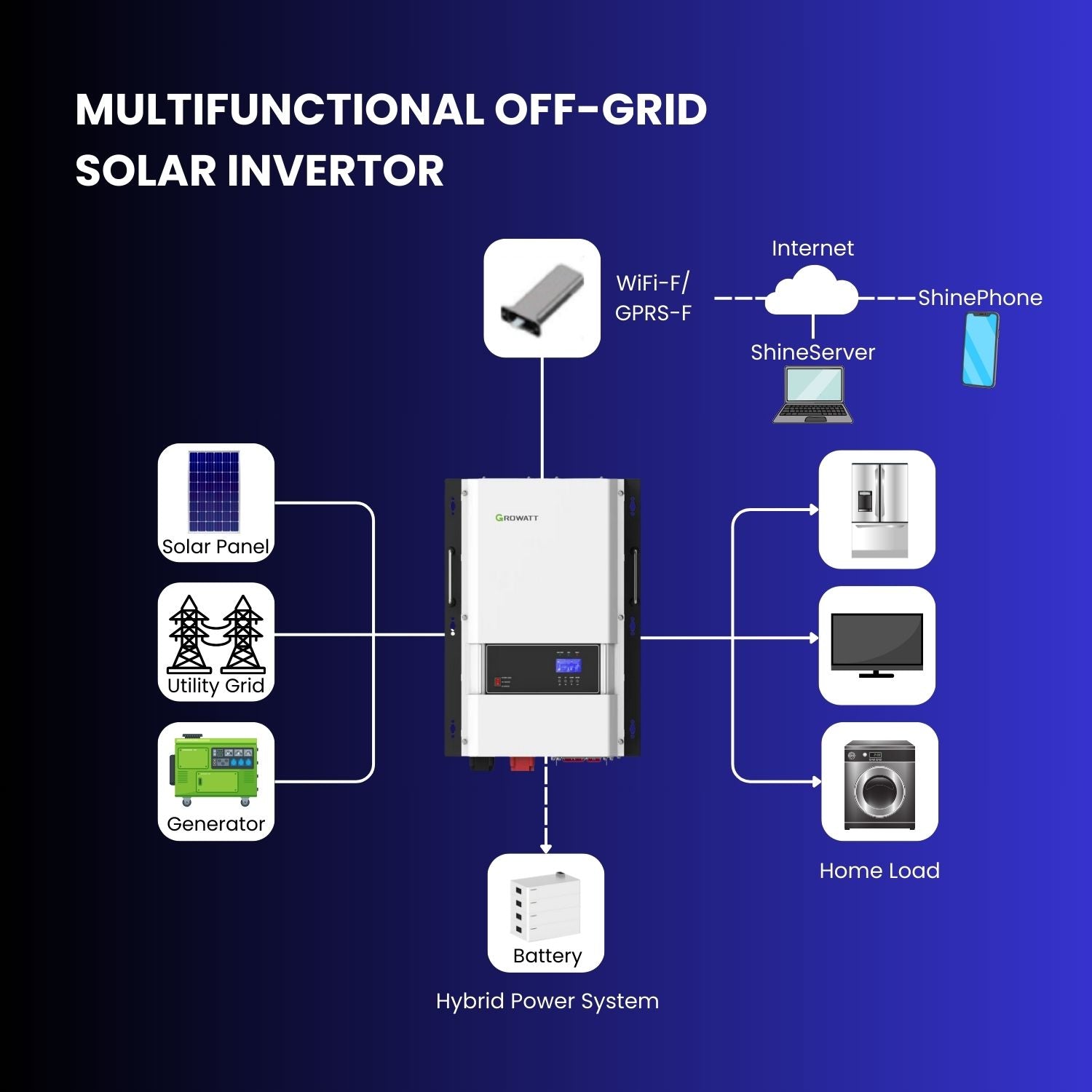

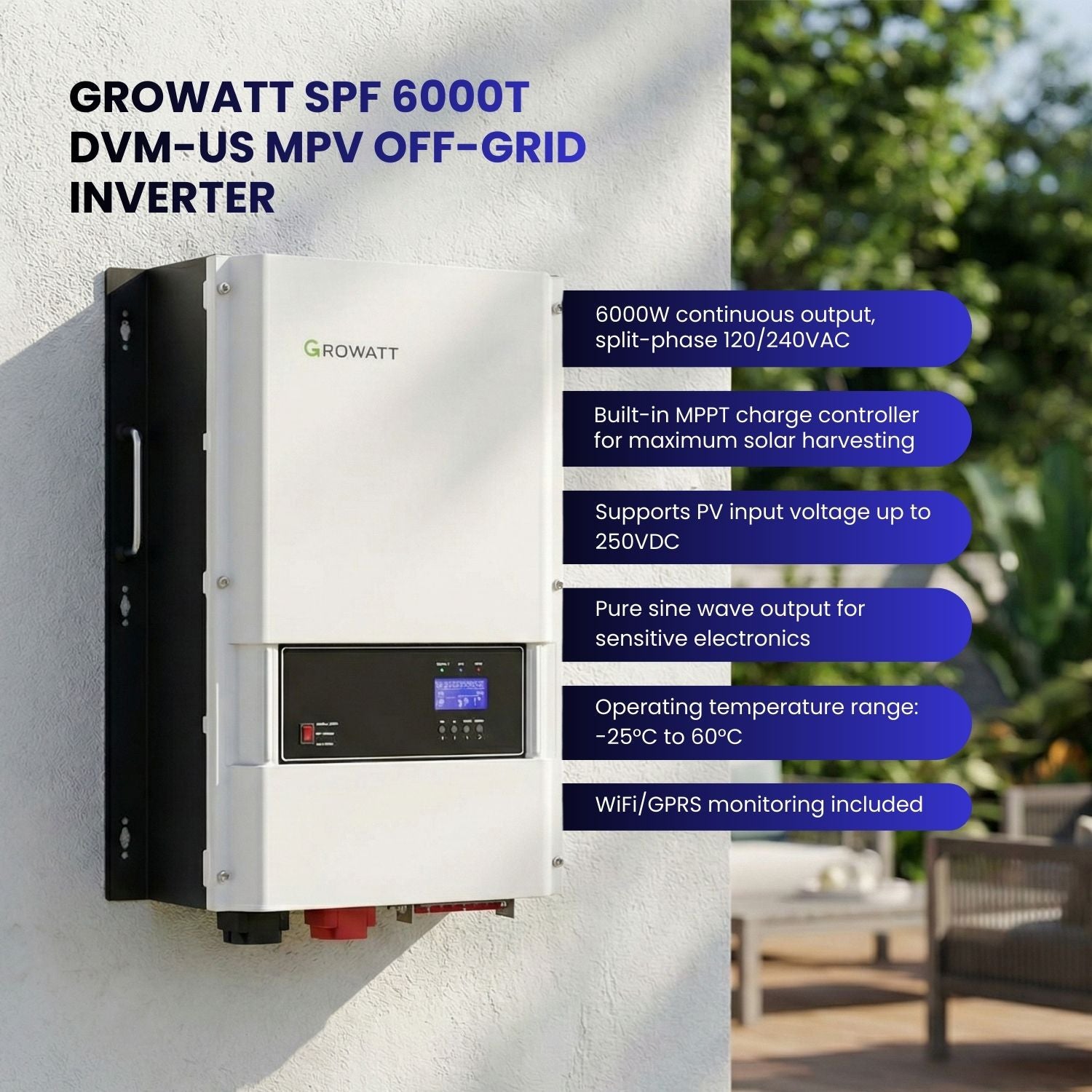

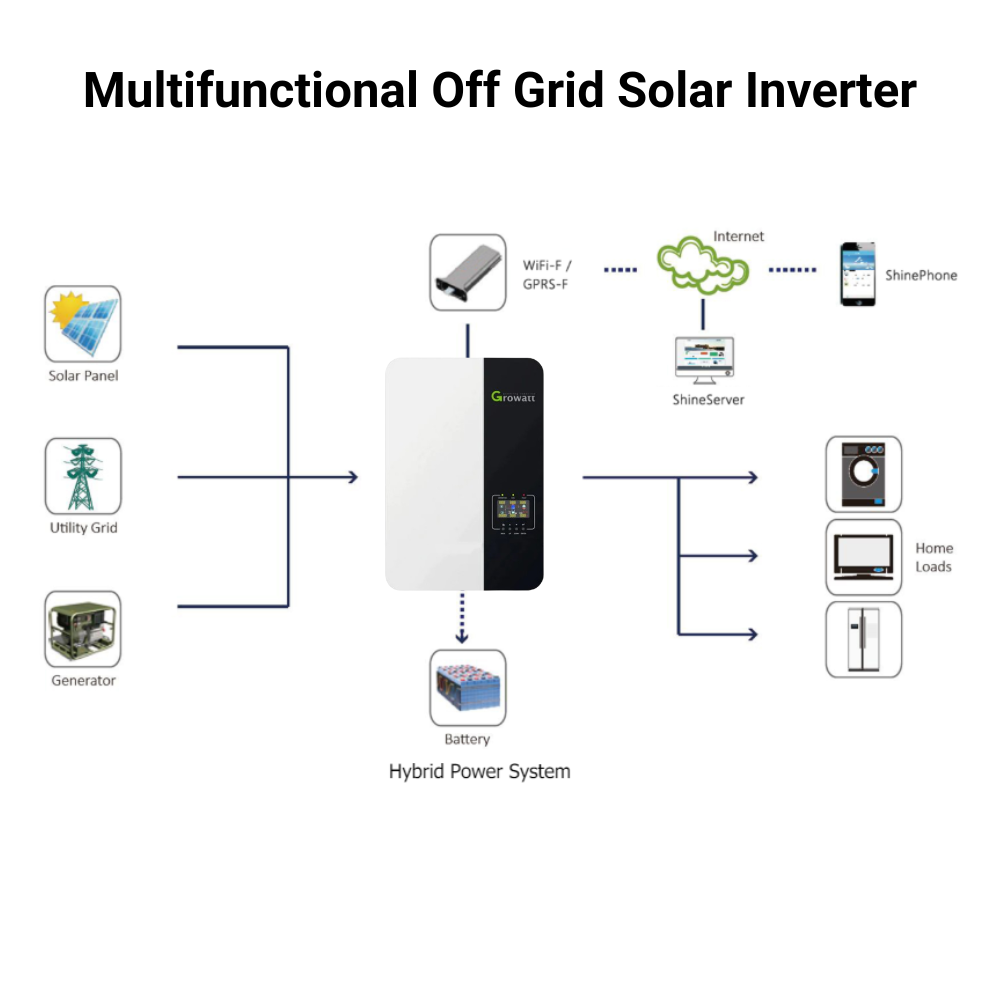

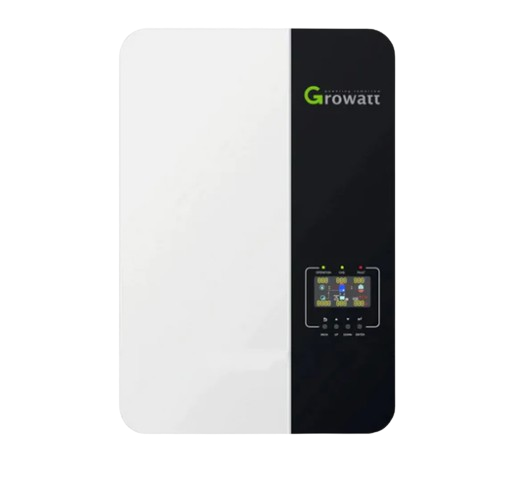

Growatt SPF 6000T DVM-US MPV Off-Grid Inverter
- 6000W continuous output, split-phase 120/240VAC
- Built-in MPPT charge controller for maximum solar harvesting
- Supports PV input voltage up to 250VDC
- Operates with or without batteries
- Pure sine wave output for sensitive electronics
- Operating temperature range: -25°C to 60°C
- WiFi/GPRS monitoring included
- Fast transfer switching for uninterrupted power
4400W Bifacial Solar Panel Array
- 10 × 440W bifacial monocrystalline solar panels
- Higher energy yield with rear-side light capture
- Durable aluminum frames with anti-reflective glass
- Bypass diodes to reduce shading losses
- Designed for 30+ years of service life
- 12-year manufacturer warranty
Why Choose This Off-Grid Solar System
- True energy independence
- Scalable battery storage as energy needs grow
- High efficiency and long system lifespan
- Smart monitoring and remote management
- Reduced electricity bills and carbon footprint
- Reliable power during grid outages
Ideal Applications
- Residential off-grid homes
- Backup power systems
- Cabins and remote properties
- Farms and rural installations
SPECIFICATIONS
SPECIFICATIONS

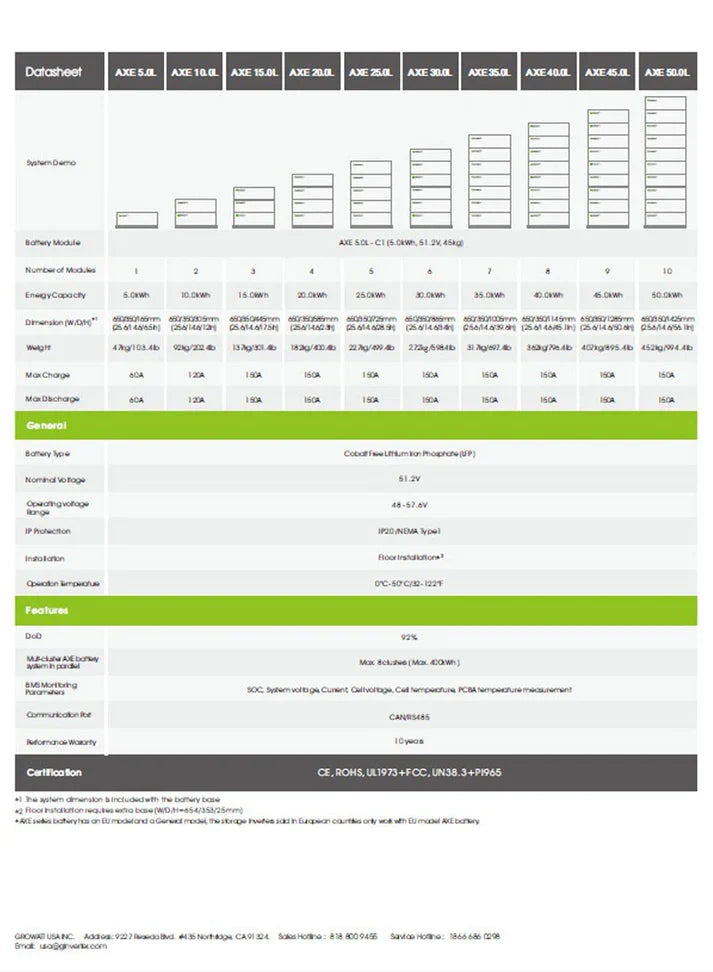

| Growatt AXE 5.0L-C1 5kW Battery | Details |
|---|---|
| Model | Growatt AXE 5.0L-C1 |
| Energy Capacity | 5.0kWh |
| Max Charge/Discharge Power | 3kW |
| Max Charge/Discharge Current | 60A |
| Dimensions | 650 x 350 x 165mm (W x D x H) |
| Weight | 42kg |
| Nominal Voltage | 51.2V |
| Warranty | 10 years |
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
| Operating Voltage Range | 48 - 57.6V |
| Installation | Floor installation |
| Operation Temperature | 0°C-50°C/32-122°F |
| DoD | 92% |
| Parallel Capability | Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh) |
| Communication Port | CAN/RS485 |
| Performance Warranty | 10 years |
| Certification | CE, ROHS, UL1973+FCC, UN38.3 + IP65 |
| Growatt Off-Grid Storage SPF 6000T DVM-US | Details |
|---|---|
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid |
| Inverter Output (Rated Power) | 6KW |
| Surge Rating | 18KW |
| Waveform | Pure sine wave/ same as input (bypass mode) |
| Nominal Output Voltage RMS | 104-110-115-120/208-220-230-240VAC(optional) |
| Output Frequency | 50Hz/60Hz +/-0.5 Hz |
| Inverter Efficiency (Peak) | 88% |
| Transfer Time | 10ms |
| Solar Charger (Maximum PV Charge Current) | 80A |
| Maximum PV Array Power | 5000W |
| AC Input Voltage | 240VAC |
| Max. Charging Current | 120A |
| Protection Degree | IP20 |
| Dimensions (W/H/D) | 360/540/218mm |
| Weight | 52kg |
| Operating Environment (Temperature Range) | -25°C to 50°C |
| Warranty | Complies with UL STD.1741, CSA STD CSA C22.2 No.107.1 |
| ROCKSOLAR 440W 12V Bifacial Rigid Solar Panel | Details |
|---|---|
| Panel Type | Bifacial Panel |
| Power Output | 440W |
| System Voltage | 32.8V |
| Cell Efficiency | 20-23% |
| Frame Material | Aluminum |
| Dimensions | 1480mm x 670mm |
| Weight | approx. 25-30 lbs |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP68 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
| Warranty | 10 years |
