Pitched Roofs / Flat Roofs / Ground Based

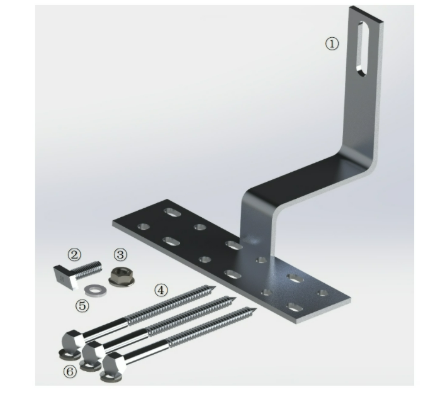

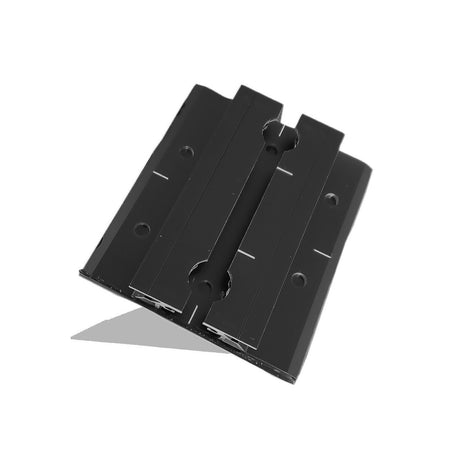

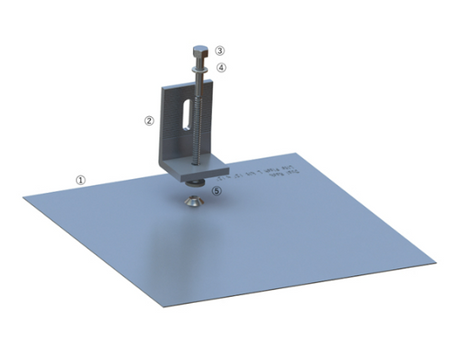

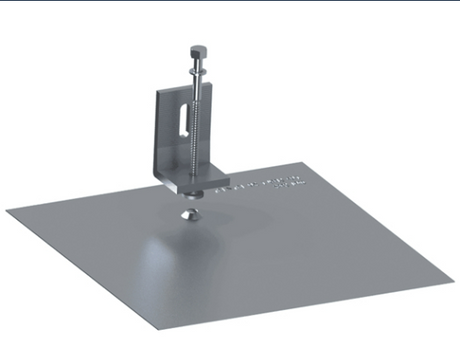

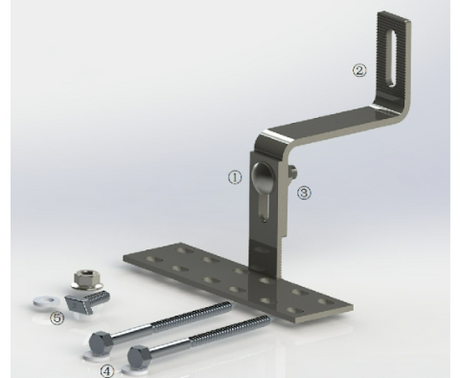

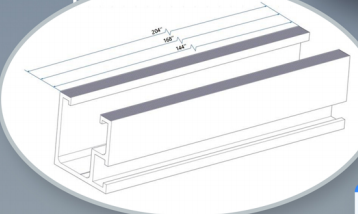

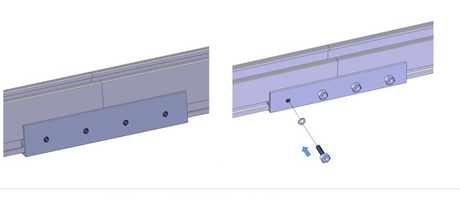

Rail-based mounting for shingle, tile and flat roofs: Roof Tech RT-MINI II flashed feet with AlphaSeal butyl, L-feet, Lite Rail in 168 in lengths, splice bars, mid and end clamps with built-in grounding, S-tile hooks, wood screws and cable clips. The same rail hardware serves a ground frame.
Read moreRead less
A standard install runs two rails per row of panels, an RT-MINI foot typically every 48 in of rail, a grounding mid clamp between panels and an end clamp at each end, plus one grounding lug per rail. The Complete Roof Mount Package for Pitched Roof bundles this for a typical array; the individual parts let you extend it or replace pieces.
Racking is quoted separately from our solar kits because it depends on your roof. Send us the roof type, pitch and panel count and we will size the rail, feet and clamps, or use the finder and add racking at the quote stage.
