12KW Split Phase 120/240Vac Off-Grid Solar System
Description
Description

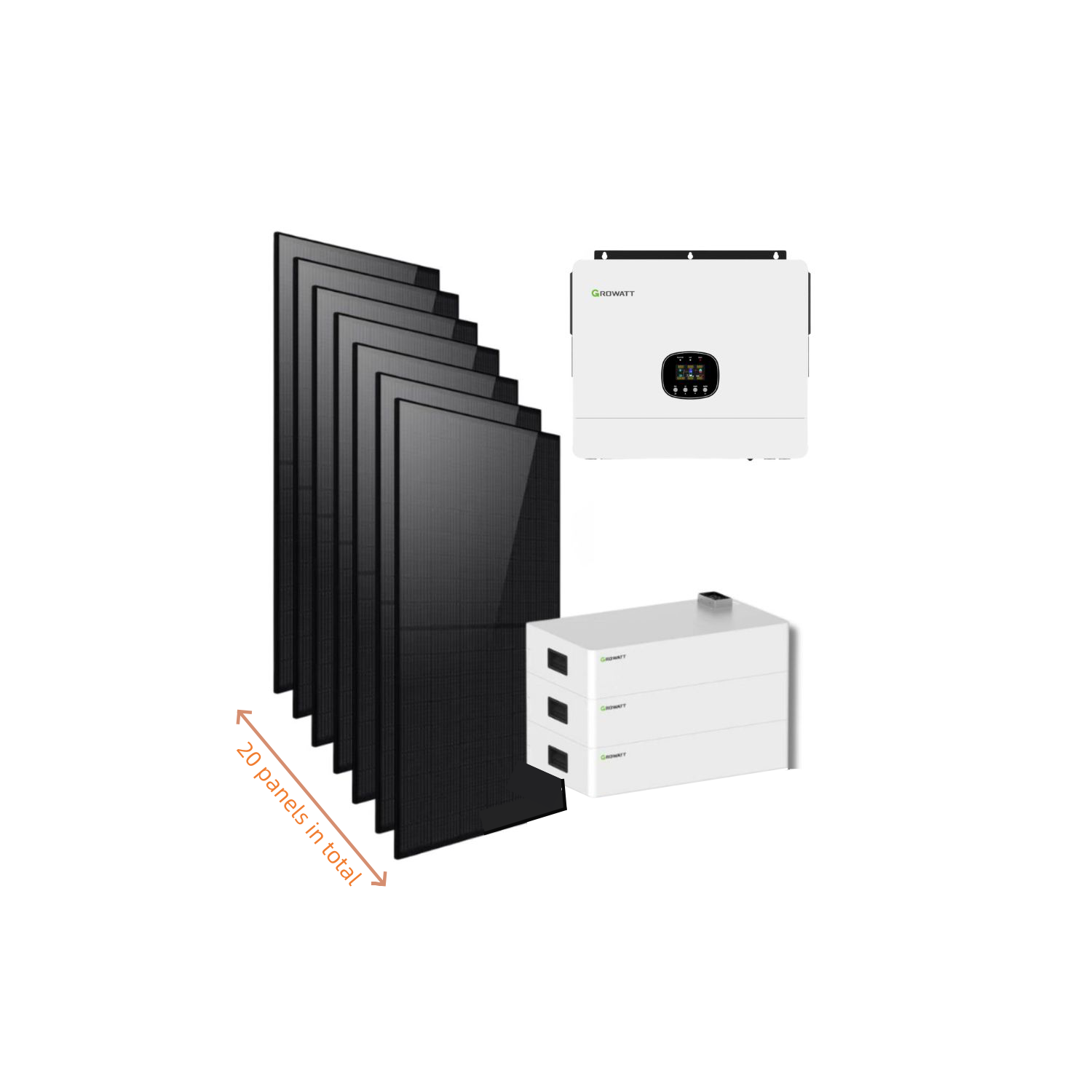

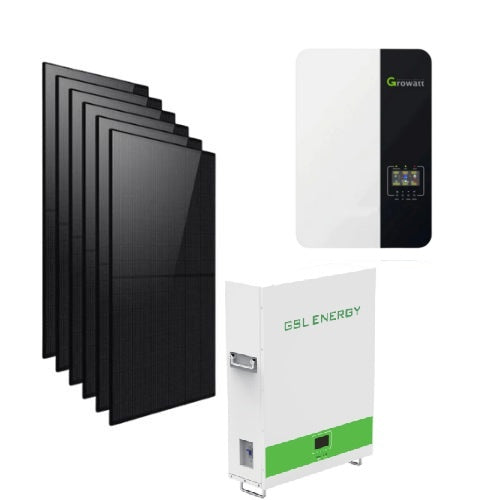

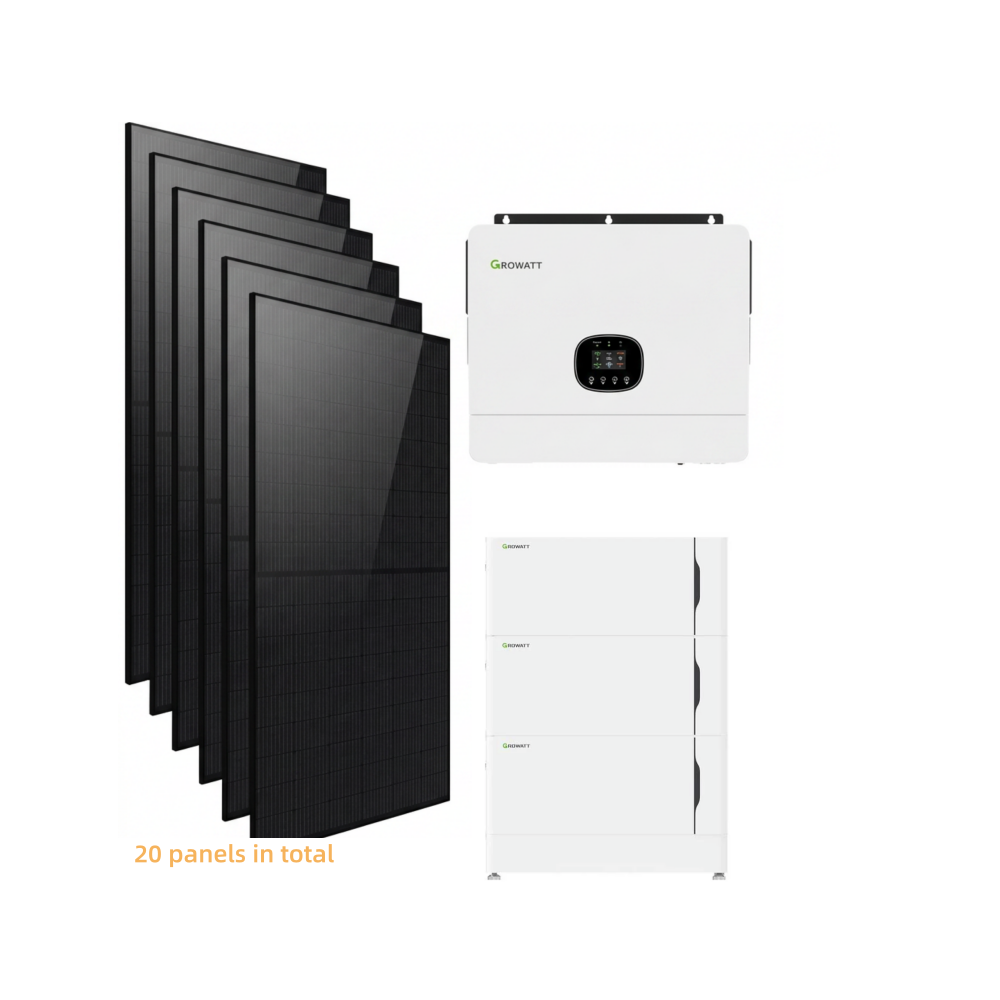

Introducing the Advanced Home Solar Storage Kit
Introducing the Advanced Home Solar Storage Kit - 15kWh Energy Storage with Hybrid 12kW Inverter + 8800W Solar Array, a premium solar energy systems designed for 120V/240V 100AMP house, cottage, cabin, etc. This all-encompassing kit features GROWATT SPE12000 US a 12kW Hybrid power inverter known for its seamless energy integration and intelligent power management, alongside three 5kWh batteries for a total energy storage of 15kWh, and a robust 8800W solar panel array comprised of 10 high-efficiency 440W Monocrystalline N Type Topcon Bifacial panels.
Key Highlights

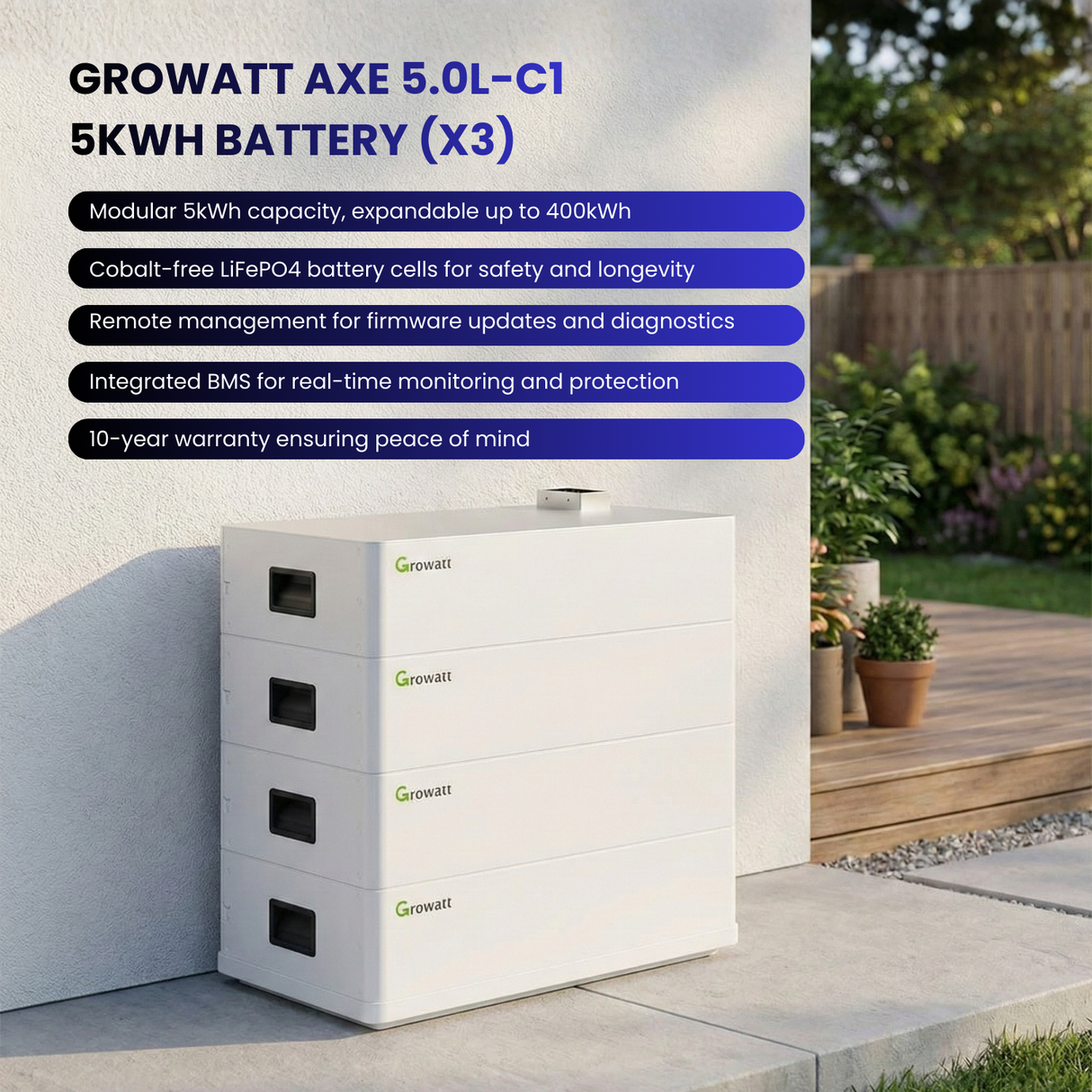

Growatt AXE 5.0L-C1 5kWh Lithium Battery (x3):
- Modular 5kWh capacity, expandable up to 400kWh
- Cobalt-free LiFePO4 battery cells for safety and longevity

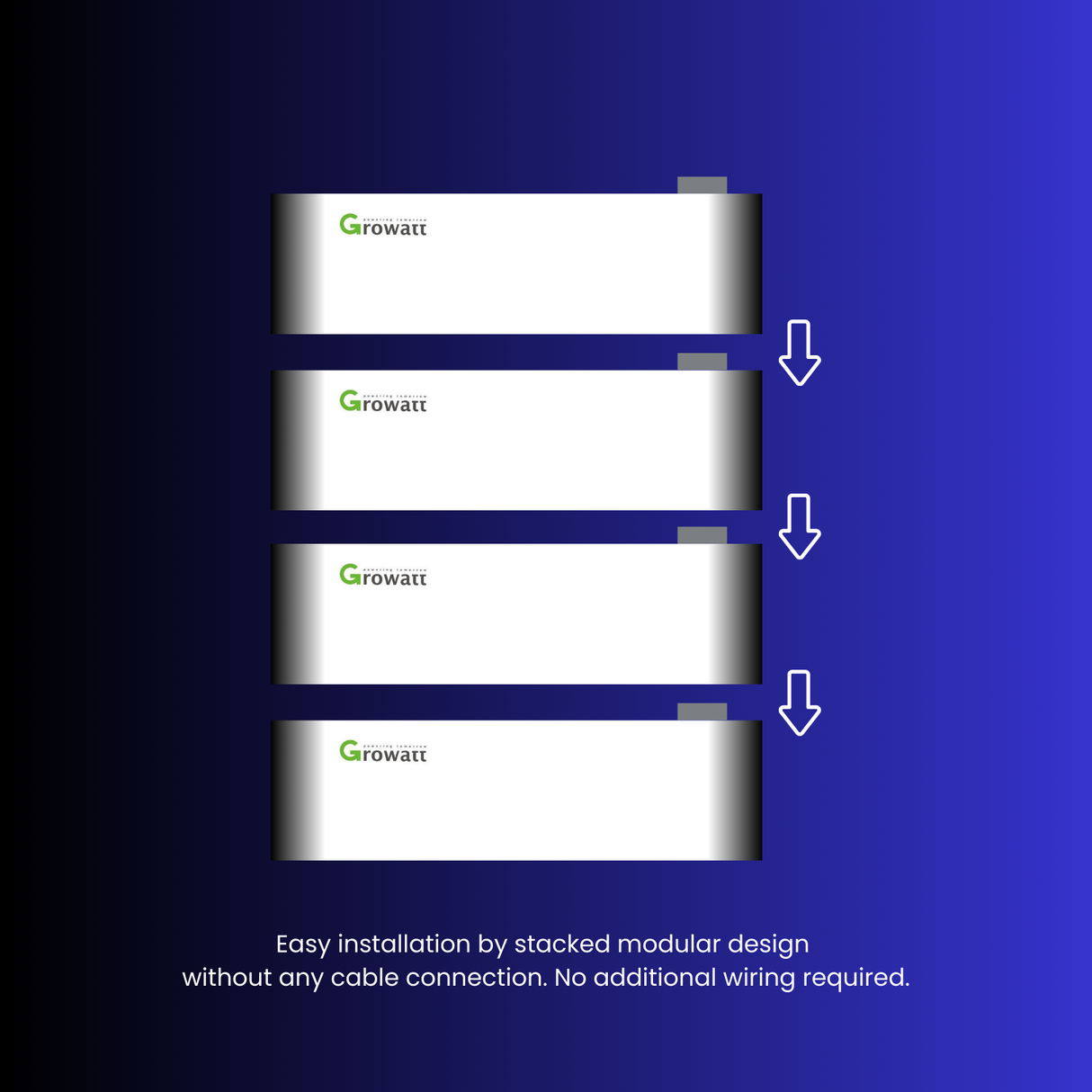

- Quick, cable-free stacking installation
- Remote management for firmware updates and diagnostics
- Integrated BMS for real-time monitoring and protection
- 10-year warranty

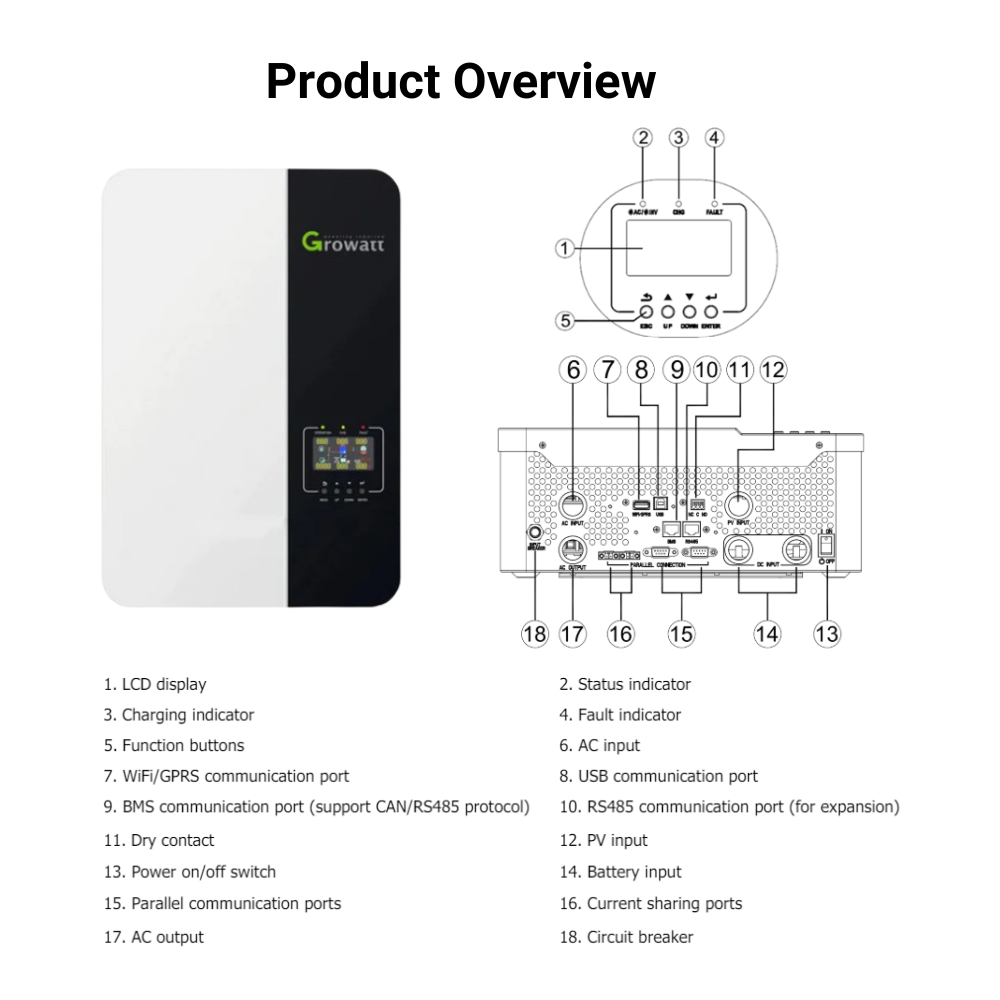

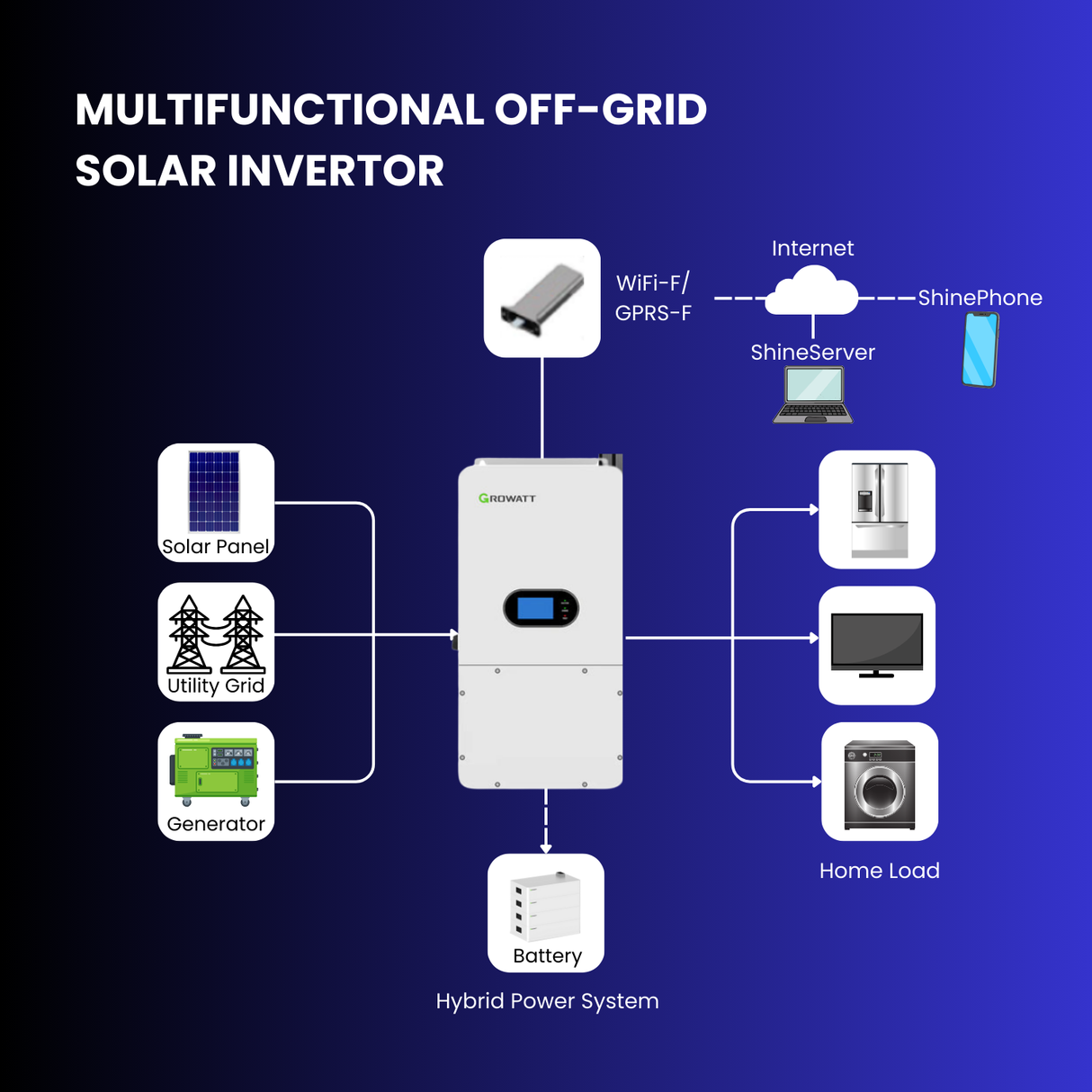

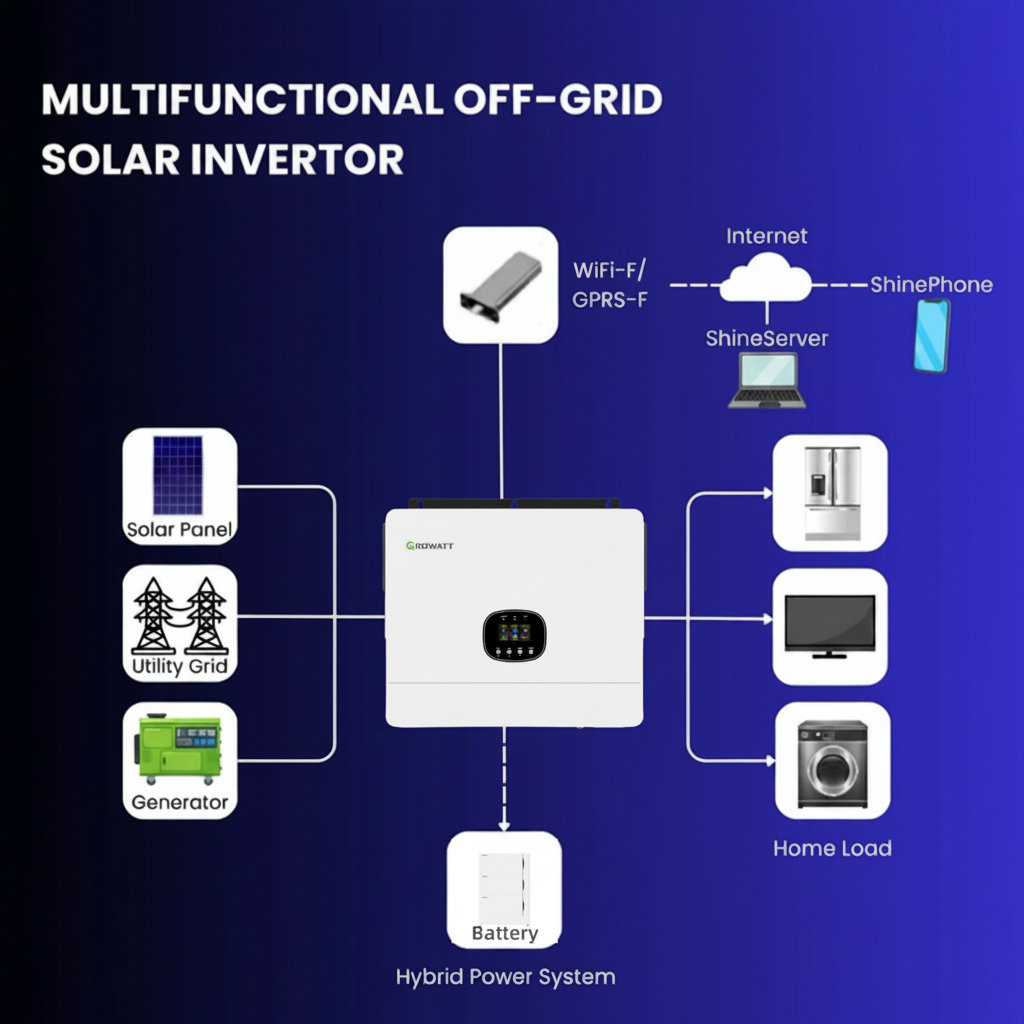

Growatt SPE12000 US Off Grid Inverter:
- Maximum 18KW solar input
- 1.5 DC/AC Ratio with 2 MPPTs
- Support charge from diesel generator
- Support up to 9 units in parallel
- S upport form a 220V or 208V three-phase system
- 120V/240V Split Phase AC output

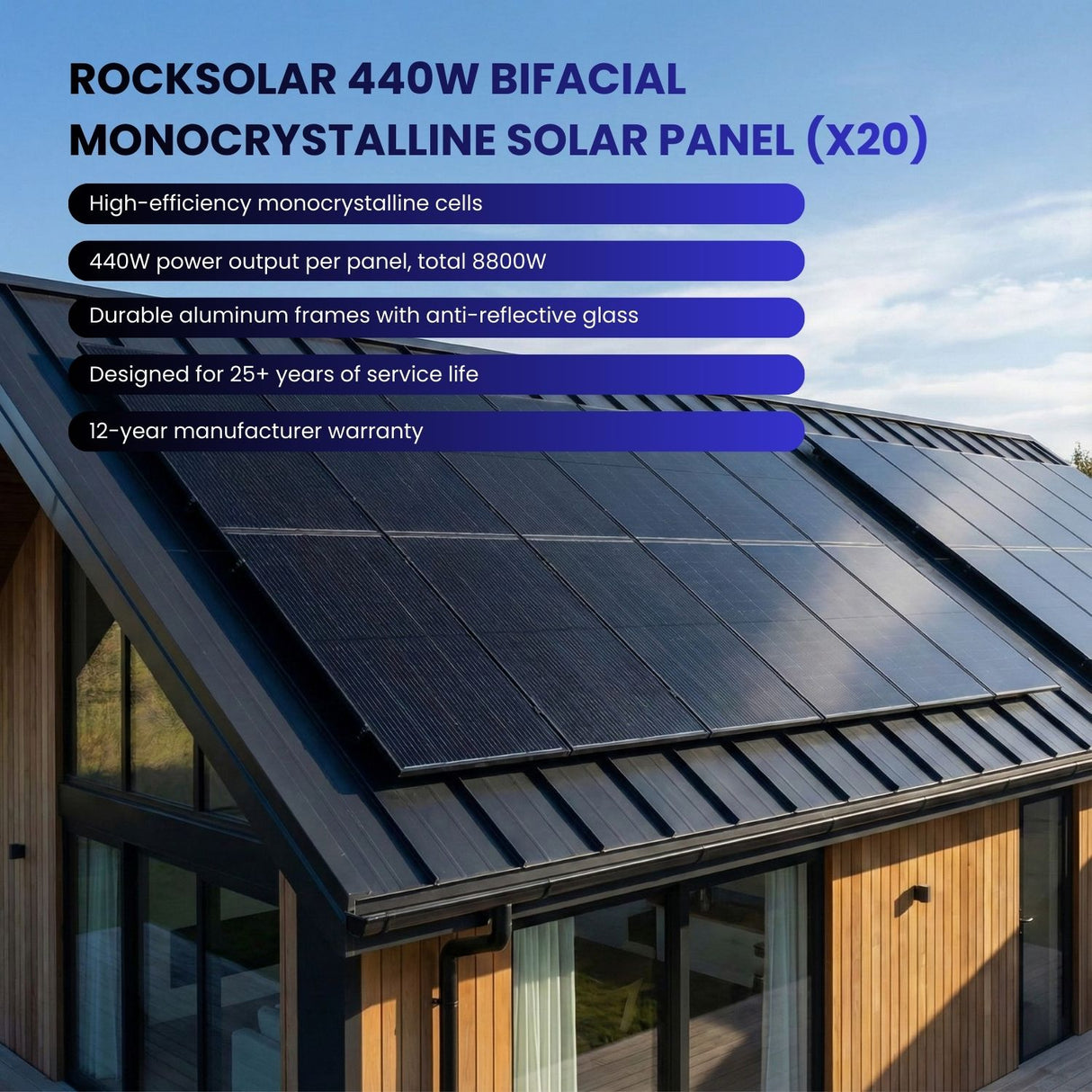

ROCKSOLAR 440W Bifacial Monocrystalline Solar Panel (x20):
- High-efficiency monocrystalline cells
- 440W power output per panel, total 8800W
- Durable aluminum frame and anti-reflective glass
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact
- 25+ years service life, 10-year warranty
- Eco-friendly power generation
With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy reliable power. Experience modern solar technology and battery storage in one seamless package.
SPECIFICATIONS
SPECIFICATIONS
| Growatt AXE 5.0L-C1 5kW Battery | Details |
|---|---|
| Model | Growatt AXE 5.0L-C1 |
| Energy Capacity | 5.0kWh |
| Max Charge/Discharge Power | 3kW |
| Max Charge/Discharge Current | 60A |
| Dimensions | 650 x 350 x 165mm (W x D x H) |
| Weight | 42kg |
| Nominal Voltage | 51.2V |
| Warranty | 10 years |
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
| Operating Voltage Range | 48 - 57.6V |
| Installation | Floor installation |
| Operation Temperature | 0°C-50°C/32-122°F |
| DoD | 92% |
| Parallel Capability | Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh) |
| Communication Port | CAN/RS485 |
| Performance Warranty | 10 years |
| Certification | CE, ROHS, UL1973+FCC, UN38.3 + IP65 |
| Growatt Off-Grid Storage SPE12000 US | Details |
|---|---|
| Battery Voltage | 46 – 60 VDC (Lithium) |
| Battery Type | Lithium/Lead-acid |
| Inverter Output (Rated Power) | 12KW |
| Surge Rating | 36KW |
| Waveform | Pure sine wave/ same as input (bypass mode) |
| Nominal Output Voltage RMS | 120/240Vac (195-255Vac)(optional) |
| Output Frequency | 60Hz (58.3~61.7Hz) |
| Inverter Efficiency (Peak) | 96.50% |
| Transfer Time | ≤20ms Single /≤30ms Parallel |
| Solar Charger (Maximum PV Charge Current) | 27A(Per MPPT) |
| Maximum PV Array Power | 18000W(9000W per MPPT) |
| AC Input Voltage | 120/240Vac |
| Max. Charging Current | 70A |
| Protection Degree | IP20 |
| Dimensions (W/H/D) | 550/465/150 mm |
| Weight | 21.5kg |
| Operating Environment (Temperature Range) | 0°C to 50°C |
| Warranty | 5-year standard warranty |
| ROCKSOLAR 440W Bifacial Rigid Solar Panel | Details |
|---|---|
| Panel Type | Bifacial Panels |
| Power Output | 440W |
| System Voltage | 32.8V |
| Cell Efficiency | 20-23% |
| Frame Material | Aluminum |
| Dimensions | 1480mm x 670mm |
| Weight | approx. 25-30 lbs |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP68 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
| Warranty | 10 years |
