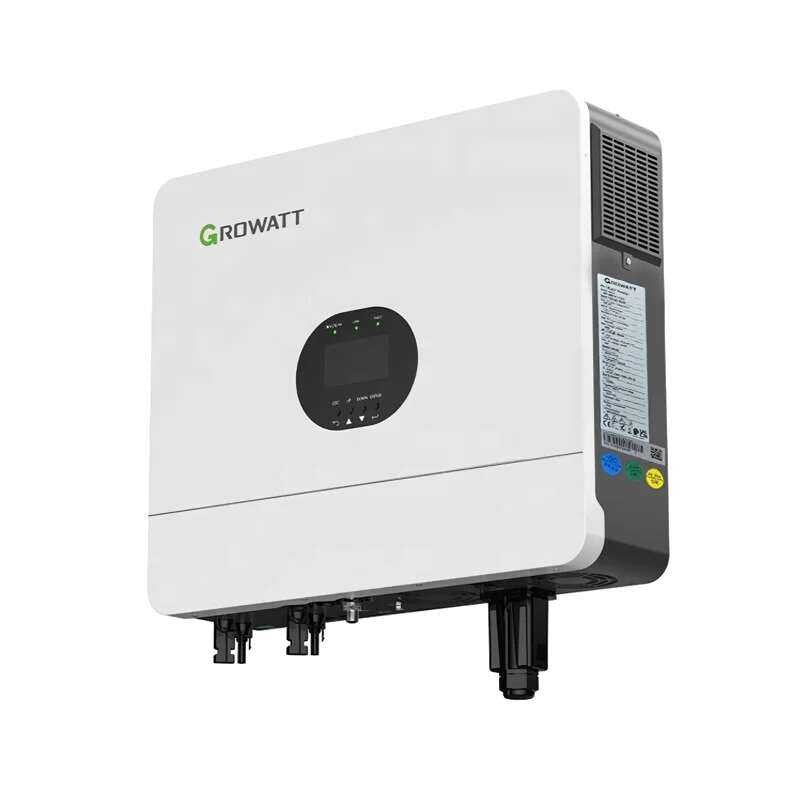

Growatt SPE12000 US Split-Phase Off-Grid Solar Inverter | 12000W | 120/240V
- High-power split-phase 120/240V off-grid inverter
- Rated output power of 12000W for high-load applications
- Dual MPPT trackers with maximum input current up to 27A per MPPT
- Maximum PV input voltage up to 550V DC
- Compatible with lithium and lead-acid battery systems (48V)
- Supports charging from diesel generator
- Smart load connection supported
- Supports parallel operation up to 9 units
Growatt SPE12000 US Split-Phase Off-Grid Solar Inverter | 12000W | 120/240V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Growatt SPE12000 US Split-Phase Off-Grid Solar Inverter | 12000W | ...
Support smart load connection
Support charge from diesel generator
Description
Description
Product Description
The Growatt SPE 12000 US is a high-efficiency split-phase off-grid inverter designed for residential and light commercial solar power systems in North America. It supports 120/240V output, dual MPPT solar inputs, battery storage, and generator charging, making it ideal for off-grid homes and backup power applications.
Key Features
- Rated AC output power: 12000W
- Split-phase 120/240V output for US electrical systems
- Dual MPPT solar charge controllers
- Maximum PV input voltage up to 550V DC
- Supports lithium and lead-acid batteries (48V systems)
- Generator input supported (diesel compatible)
- Smart load management supported
- Parallel operation up to 9 units
- Fast transfer time for backup power
- Built-in WiFi for remote monitoring
- UL1741 and FCC certified
Technical Specifications
AC Output
- Rated power: 12000W
- Nominal voltage: 120/240V
- Nominal frequency: 60Hz
- Max output current: 50A
- Power factor: 0.8 leading to 0.8 lagging
- THDi: <5%
Solar (DC Input)
- Max recommended PV power: 18000W
- MPPT voltage range: 60–480V
- Number of MPPTs: 2
- Max input current per MPPT: 27A
Battery
- Battery voltage range: Lithium: 46–60V, Lead-acid: 38.4–60V
- Max charge/discharge current: 280A
- Battery communication: CAN / RS485
Efficiency
- Peak efficiency: 96.5%
- CEC efficiency: 94.5%
- MPPT efficiency: 99%
General
- Dimensions: 550 × 465 × 150 mm
- Weight: 21.5 kg
- Operating temperature: -10°C to 50°C
- Protection rating: IP20
- Cooling: DC fan
- Warranty: 5 years
Applications
- Off-grid homes and cabins
- Solar + battery backup systems
- Farms and rural properties
- Remote power installations
