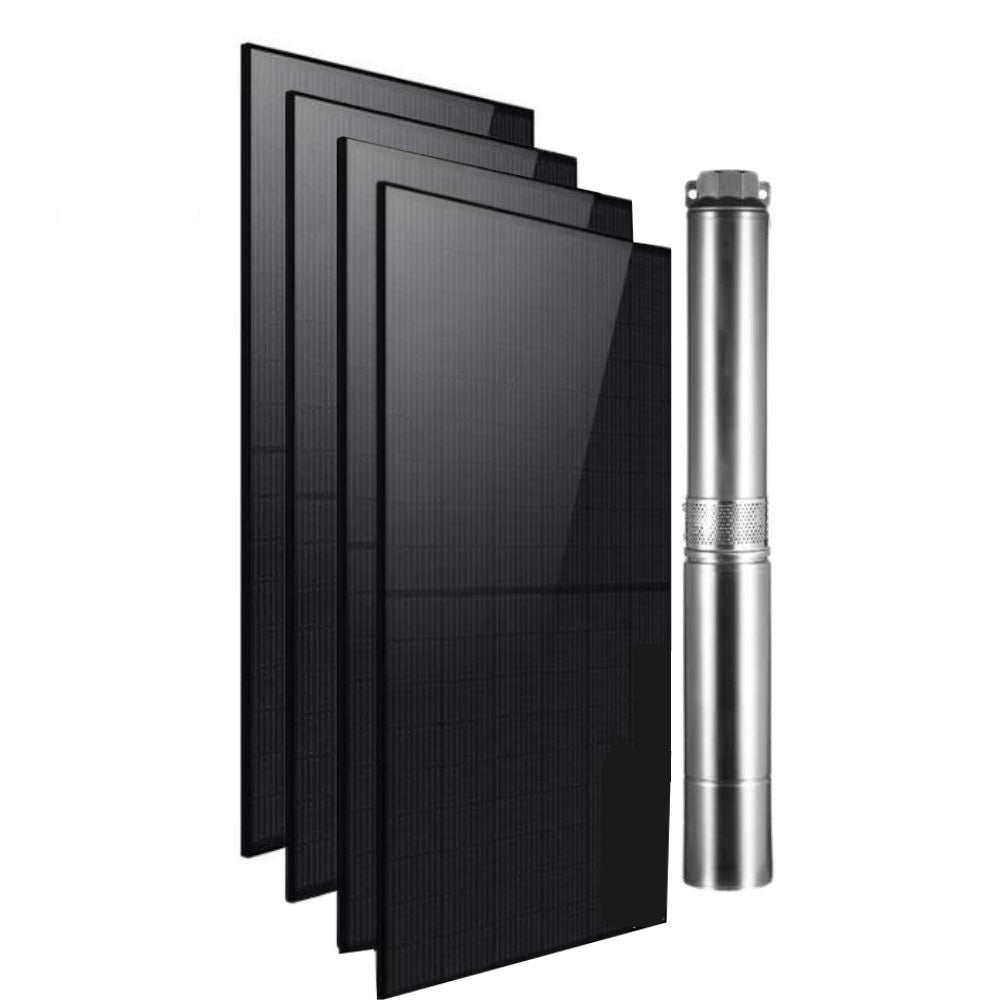

Rocksolar 1.61HP Hybrid Solar DC/AC Submersible Pump Kit

Pump Specification

• Power: 1.61 HP (1200W) brushless DC motor
• Voltage Range: 80–150V (optimal 96–130V)
• Max Flow: 17.6 GPM at 0 ft
• Max Head: 393 ft
• Diameter / Outlet: 3" body, 1.5" outlet
• Pressure: Up to 174 PSI
• Built-in controller, no external unit required
• Dry-run protection & water-cooled design
• Material: SS304 stainless steel
• Franklin-standard motor structure

Solar Panel Specification

• Power: 440W monocrystalline (bifacial)
• Efficiency: Up to 22.57%
• Design: Half-cell Topcon technology
• Durability: 2400 Pa wind / 5400 Pa snow load
• Dimensions: 1722 × 1134 × 30 mm
• Weight: 22 kg
• Operating Temp: −40°C to +85°C
• Waterproof Rating: IP68
• Front Glass: Anti-reflective tempered
• Service Life: 30+ years (12-year product warranty)

Included in the Kit

• 1 × 1.61 HP Solar DC Submersible Pump
• 4 × 440W Bifacial Solar Panels
• 2 × 10 ft 10 AWG Solar Cables
• 1 × Dual-string DC Disconnect Box (1000V 40A)
• Mounting brackets & racks (optional)
• User manuals + warranty card
