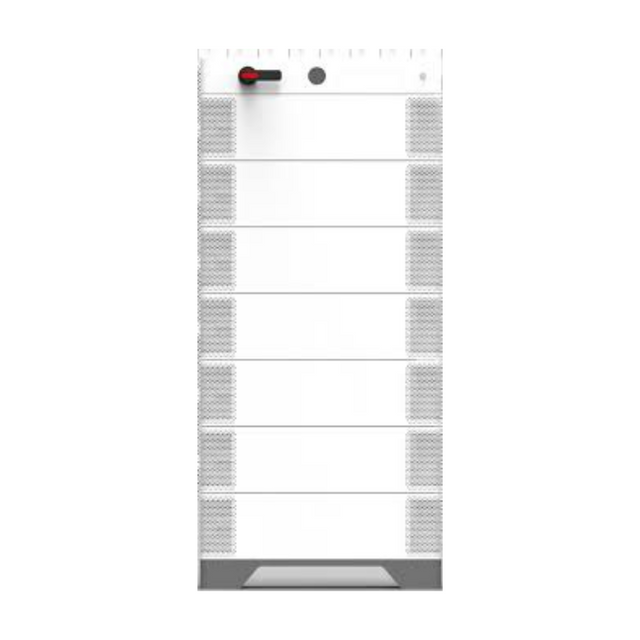

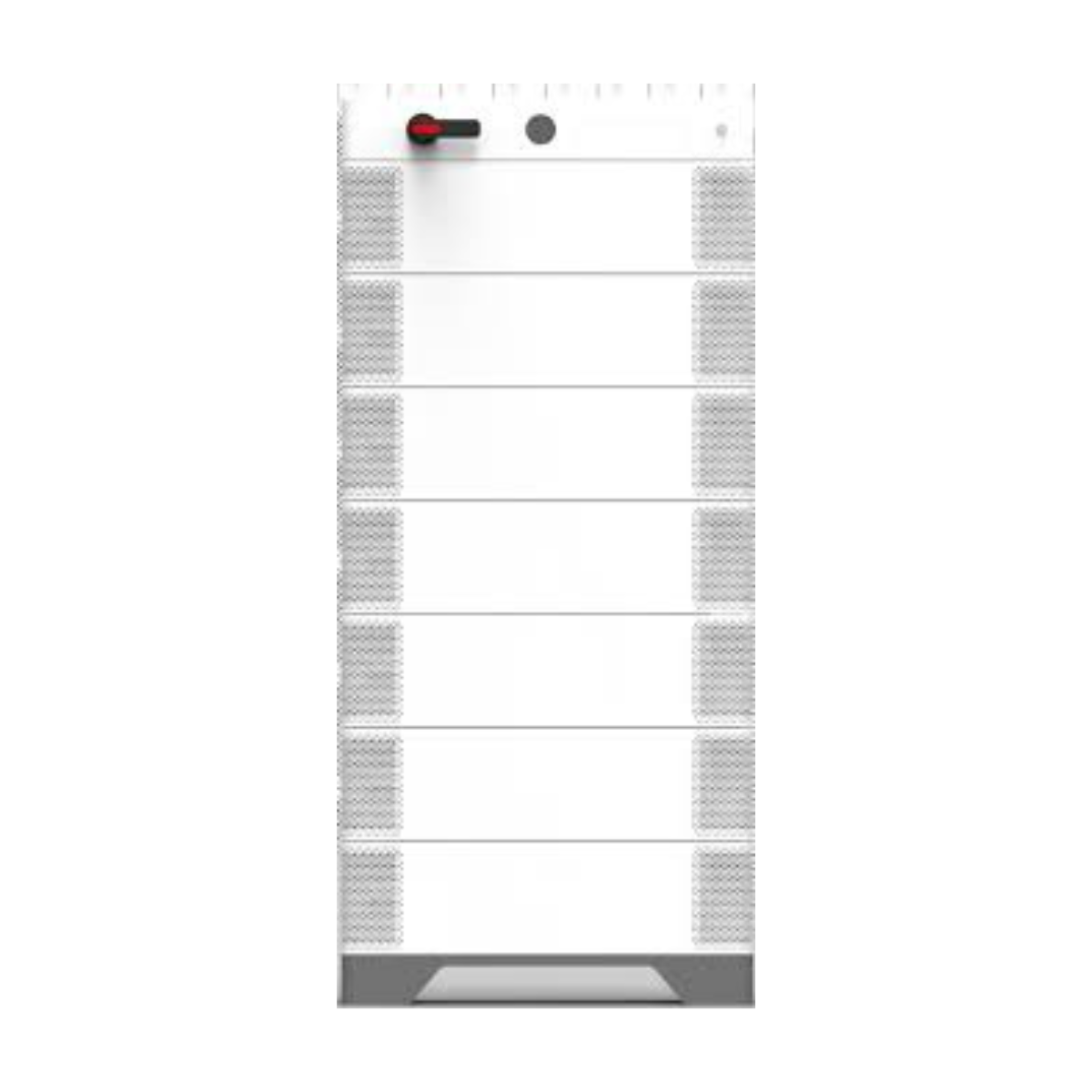

Growatt 86kWh APX Commercial LiFePO4 Battery

$34,999.99 $42,999.99
Shipping calculated at checkout.
  • 86.01kWh Energy: High capacity for commercial use.
  • LFP Technology: Safe, cobalt-free, long-lasting.
  • Modular Design: Easy installation and scalability.
  • IP66 Protection: Durable in tough conditions.
  • Intelligent Monitoring: Optimized performance.
  • Smart Cooling: Maintains optimal temperature.
  • 768V Voltage: Efficient high-voltage support.
  • 10-Year Warranty: Reliable with extensive coverage.

Free Shipping

Orders Over $100? Shipping's On Us!

Hassle Free Warranty

Effortless Warranty for Your Ease.

Lifetime Customer Support

Endless Support, Because You Matter.

Description

Growatt APX 86.0P-S1 86kWh Battery System: Enhanced Capacity for Advanced Commercial Energy Solutions

The Growatt APX 86.0P-S1 represents a leap forward in battery storage systems, offering a robust solution tailored for commercial energy requirements. This system is a testament to Growatt's commitment to driving innovation and enhancing operational efficiency in large-scale energy storage.

  • Expanded Energy Storage: Boasting a nominal energy capacity of 86.01kWh and a rated energy of 77.41kWh, this system is capable of meeting extensive commercial energy demands.
  • Enhanced Power Delivery: Capable of delivering a maximum output power of 43kW and reaching peak output power of 68kW for 60 seconds to handle intense power requirements.
  • Reliable and Safe Battery Chemistry: Features Cobalt Free Lithium Iron Phosphate (LFP) technology, renowned for its safety and longevity.
  • High-Level Protection: Comes with an IP66 rating, offering excellent protection against dust and water intrusion for various industrial environments.
  • Streamlined Installation: The modular and stackable configuration of the system facilitates easy setup and provides the adaptability required for diverse space layouts.
  • Smart Energy Management: Integrates intelligent cooling and monitoring capabilities to efficiently manage critical parameters like SOC, system voltage, current, cell voltage, and temperature.
  • Wide Inverter Compatibility: Compatible with WIT 50-100kW/400V series inverters and supports a nominal voltage of 768V, accommodating a broad operating voltage range.
  • Scalable System Design: Designed for series connection of up to 14 units, this system allows for future expansion up to 200kWh to support evolving energy needs.
  • Assured Longevity: Growatt backs this advanced battery system with a 10-year warranty, assuring long-term dependability and user confidence.
  • Global Safety and Quality Standards: Adheres to stringent international standards, including IEC62619, IEC60730, VDE2510-50, CE, CEC, RCM, UN38.3, UL1973, UL9540, and UL9540A for global market readiness.

With the Growatt APX 86.0P-S1 86kWh Battery System, businesses can look forward to achieving higher levels of energy self-sufficiency, operational efficiency, and sustainable growth.

SPECIFICATIONS

Specification Details
Number of Battery Modules 6
Nominal Energy 86.01kWh
Rated Energy 77.41kWh
Max Output Power 43kW
Peak Output Power 68kW, 60s
Dimension (W/D/H) 920/510/1956 mm
Weight 883 kg
Compatible Inverter WIT 50-100kW/400V series inverter
Nominal Voltage 768V
Operating Voltage Range 650V~945V
Output Full Load Voltage Range 720V~880V
Nominal Capacity Not specified
Rated Capacity Not specified
Battery Type Cobalt Free Lithium Iron Phosphate (LFP)
Ingress Protection IP66
Installation Floor installation
DOD 90%
Operating Ambient Temperature –10℃~50℃
Relative Humidity 5%–95%
Cooling Smart air cooling
Altitude ≤4000m
Warranty 10 years
Communication Port CAN
Operating Voltage Range (Communication Port) 250V~950V
Maximum Current 125A
Certification & Licensing IEC62619(Cell&Pack)/IEC60730/IEC62400/IEC62477/CE/CEC/RCM/UN38.3/UL1973/UL9540/UL9540A/FCC
