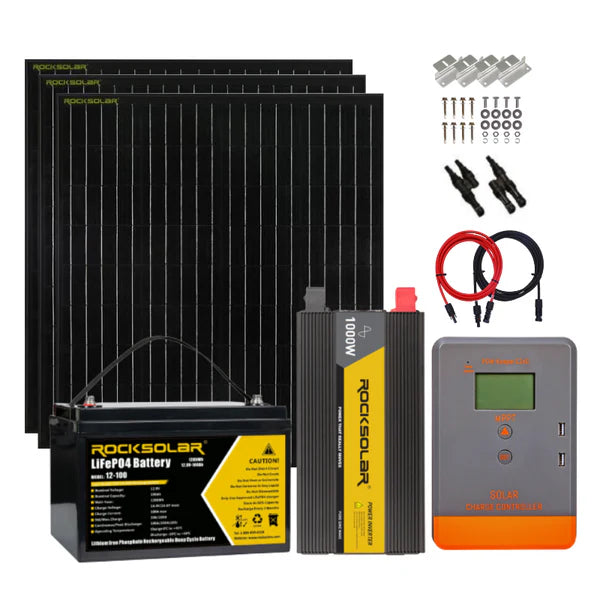

ROCKSOLAR 1000W 12V Off-Grid Solar System
- Enhanced Kit: Includes battery, panels, inverter, controller.
- Large Capacity Battery: 12V 100Ah LiFePO4 with BMS.
- Powerful Solar Panels: Three 100W Monocrystalline, 22% efficiency.
- High Power Inverter: 1000W Pure Sine Wave for reliable output.
- Advanced Controller: 40A MPPT for optimal charging and efficiency.
- Durable Construction: Panels with waterproof, corrosion-resistant frames.
- Safe & Secure: BMS for temperature, circuit, overcharge protection.
- Wide Application: Suitable for cottages, RVs, and outdoor needs.
- Extended Warranty: 10 years for battery and panels.
- User-Friendly Installation: Comes with mounting Z-Brackets and MC4 connectors.
- Scalable System: Ready for future power expansion.
- All-Weather Battery: Operates from -20°C to 60°C, Controller -20°C to 55°C.
ROCKSOLAR 1000W 12V Off-Grid Solar System is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Free Shipping
Free Shipping
Orders Over $100? Shipping's On Us!
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Lifetime Customer Support
Lifetime Customer Support
Endless Support, Because You Matter.
Description
Description
The ROCKSOLAR 1000W 12V Off-Grid Solar System is the ultimate power solution for cottage owners in Canada. Designed for reliability and efficiency, this system ensures dependable off-grid power whenever you need it. This advanced solar system includes five essential components: a 12V 100AH LiFePO4 Battery, two 100W Rigid Solar Panels, a 20A MPPT Solar Charge Controller, and a 1000W Pure Sine Wave Inverter. It is engineered to provide constant power for vital devices like a mini fridge, LCD TV, wifi routers, DC brushless water pump, coffee machine (<1000W), lighting, stereo, laptop, and phone chargers. Perfect for usage throughout the summer months, the ROCKSOLAR 1000W 12V Off-Grid Solar System guarantees a consistent power source you can rely on. The 12V 100AH LiFePO4 Battery and 100W Rigid Solar Panels come with a robust 10-year warranty, while the remaining components are covered for 1 year. This off-grid solar system is also designed for future power needs, offering hassle-free upgrade services and interchangeable key components. ROCKSOLAR ensures that all components hold their value, maximizing the return on your investment. With the ROCKSOLAR 1000W 12V Off-Grid Solar System, you can enjoy uninterrupted power at your cottage. Experience the convenience of 24/7 power and the confidence of a dependable, long-term warranty.
Product Features
ROCKSOLAR 12V 100Ah Deep Cycle LiFePO4 Battery with BMS System:
- 12V 100AH capacity
- Over 3500 cycle life with 100% discharge rate for ultra-long service life
- Consistent power: Flat voltage curve ensures steady power output, with no dramatic drop like SLA batteries
- LiFePO4 Battery Technology for reliable deep cycling
- Smart Battery Management System for safety and longevity
- Lightweight: Only 27 pounds for easy portability and installation
- Suitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing
- Operating temperature range for charging: 0°C to 45°C, discharging: -20°C to 60°C. BMS auto-shuts off the battery outside the working temperature
- Warranty: 11-year warranty and 10+ year service life

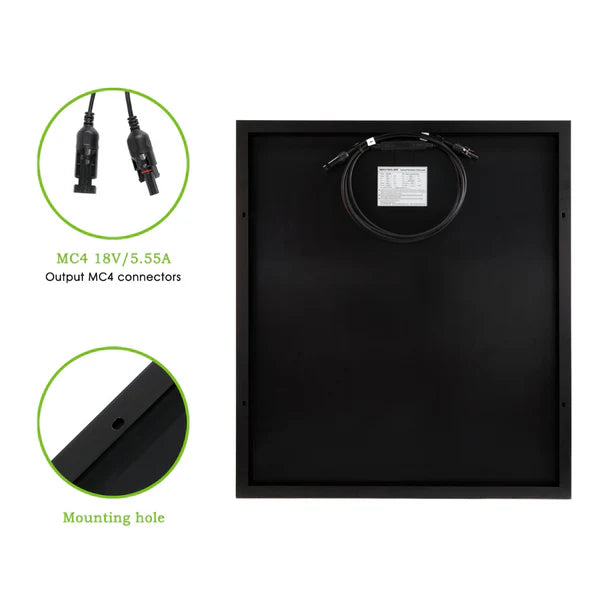

ROCKSOLAR 100W 12V Rigid Monocrystalline Solar Panel - Waterproof with Corrosion-Resistant Aluminum Alloy Frame:
- 100W 12V output (Each Panel)
- Rigid Monocrystalline Solar Panel
- Waterproof and Corrosion-Resistant Aluminum Alloy Frame
- High-Efficiency Solar Cell with 22% Conversion Efficiency
- Pre-drilled holes for easy mounting and securing to any surface
ROCKSOLAR 20A MPPT Solar Charge Controller:
- 20A MPPT Solar Charge Controller
- Compatible with Lithium and Lead Acid batteries
- Maximum open voltage of 75Vdc and MPP tracking efficiency of 99.5%
- 3-stage charge algorithm and 12/24V nominal system voltage
- Rated charging current of 20A and battery voltage range of 8-32V
- High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V
- Operating temperature range of -20°C to 55°C
- IP30 rated for protection
ROCKSOLAR 1000W Pure Sine Wave Power Inverter:
- 1000W Pure Sine Wave Power Inverter
- DC 12V to 110V AC Conversion
- 2.1A USB Charging Port
- Ideal for RVs, Camping, Off-grid power solutions, and more
SPECIFICATIONS
SPECIFICATIONS
12V 100Ah Deep Cycle LiFePO4 Battery Details
Product Dimensions | 12.99 x 6.81 x 8.66 Inches |
Battery Type | Lithium Ion battery |
Special Features | Deep cycle |
Working Temperature | -20C - 60C |
Voltage | 12 Volts (DC) |
Item Weight | 12.52 kg |
Warranty | 11 Years |

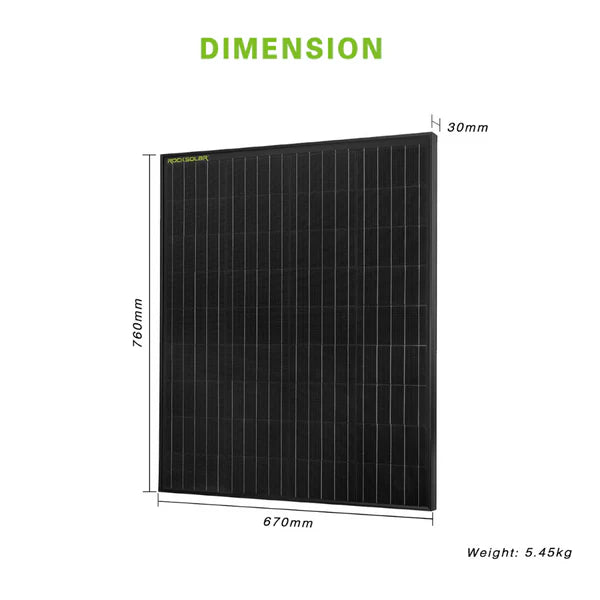

100W 12V Rigid Monocrystalline Solar Panel Details
Rated Power | 100W |
Type | Mono-crystalline silicon |
System Voltage | 12V |
Cell Efficiency | 20-22% |
Frame Material | Aluminum |
Dimensions | 1120*670*30 mm |
Weight | approx. 8.30 kg |
Operating Temperature | -20~70 °C |
Waterproof Rating | IP65 |
Front Glass | High light transmittance, low-iron tempered glass |
Bypass Diodes | Integrated |
Connectors | MC4 |
Cable Length | Varies depending on the brand (approx. 3-6 ft) |
Mounting Hole Locations | Pre-drilled |
Service Life | 25 years or more |
Warranty | 10 Years |
20A MPPT Solar Charge Controller Details
Max Open Voltage of PV Module | 75Vdc |
MPP Tracking Efficiency | 99.50% |
Light Control Voltage | 5V |
Charge Algorithm | 3 Stage |
Battery Type | Lithium and Lead Acid Battery |
Nominal System Voltage | 12/24V |
Rated Charging Current | 20A |
Battery Voltage Range | 8~32V |
High Voltage Disconnection | 16V (24V x 2) |
Duration for Absorption Charging | 2 hours |
Charge Loop Voltage Drop | ≤0.29V |
Self-consumption | ≤ 9.2mA 12V; ≤ 11.7mA 24V |
Equalized Charging Voltage | AGM: 14.6V; GEL: No; FLd: 14.8V |
Absorption Charging Voltage | AGM: 14.4V; GEL: 14.2V; FLd: 14.6V |
Floating Charging Voltage | AGM/ GEL/ FLd: 13.8V |
Low Voltage Re-connection (LVR) | AGM/ GEL/ FLd: 12.6V |
Low Voltage Disconnection (LVD) | AGM/ GEL/ FLd: 10.8V |
Operating Temperature Range | -20℃~55℃ (To run at full rated current continuously) |
LCD Temperature Range | -20℃~70℃ |
Humidity Range | ≤95% No condensation |
Protection Class | IP30 |
Dimension | 123*178*48 mm |
Installation Hole | 108*120 ∅5 mm |
Warranty | 1 Year |
1000W Pure Sine Wave Power Inverter Details
Rated Power | 1000W |
AC Voltage | 120V |
Frequency | 60HZ |
Resistive Load Continuous Output Power | 1000W |
Inductive Load Continuous Output Power | 1000W |
Capacitive Load Continuous Output Power | 420±20W,PF:0.6 |
Waveform | Pure Sine Wave |
Waveform Distortion(THD) | ≤5% |
Voltage Range | 9~17Vdc; 18V~32V |
Battery Voltage | 12Vdc; 24Vdc |
DC Current | 98A(Load 1000W when entering 12Vdc); 47.9A(Load 1000W when entering 24Vdc) |
No Load Loss | 0.8A; 0.7A |
Shutdown Mode Static Current | 1mA |
Maximum Efficiency | 90% |
Battery Type | All 12V batteries |
Insurance Slice | 40A*2 |
Battery Low Voltage Alarm | 9.5/10/10.5/11/11.5/12/12.5V,Buzzer alarm, LED display E06 |
Battery Low Voltage Alarm Recovery | 11Vdc |
Battery Low Voltage Protection | 10Vdc Peak buzzer alarm, bright red and green lights |
Battery Low Voltage Protection Recovery | Recovery voltage within 30S:11/11.5/12/12.5/13/13.5/14V |
Battery High Voltage Protection | 17V,LED display shows E02, automatic shutdown after 30S |
Battery High Voltage Protection Recovery | Recovery voltage within 30S:16.5V |
Over Temperature | Buzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted output |
Output Short Circuit | Buzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30S |
Overload | Over 1600W 300ms locked after shutting off output (below 1600W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S |
USB Output Voltage | 5V |
USB Output Current | 2.1A |
Working Temperature | -20~40℃ |
Operating Humidity | 10~90%RH |
Storage Temperature, Humidity | -30℃~70℃, 10~95%RH |
Weight | Net weight: 2.82 kg |
Size | 357.6*171.9*78 mm (L*W*H) |
Warranty | 1 Year |
