JA Solar JAM66D45 LB 605W N-Type Double Glass Bifacial Module(0.395/W)

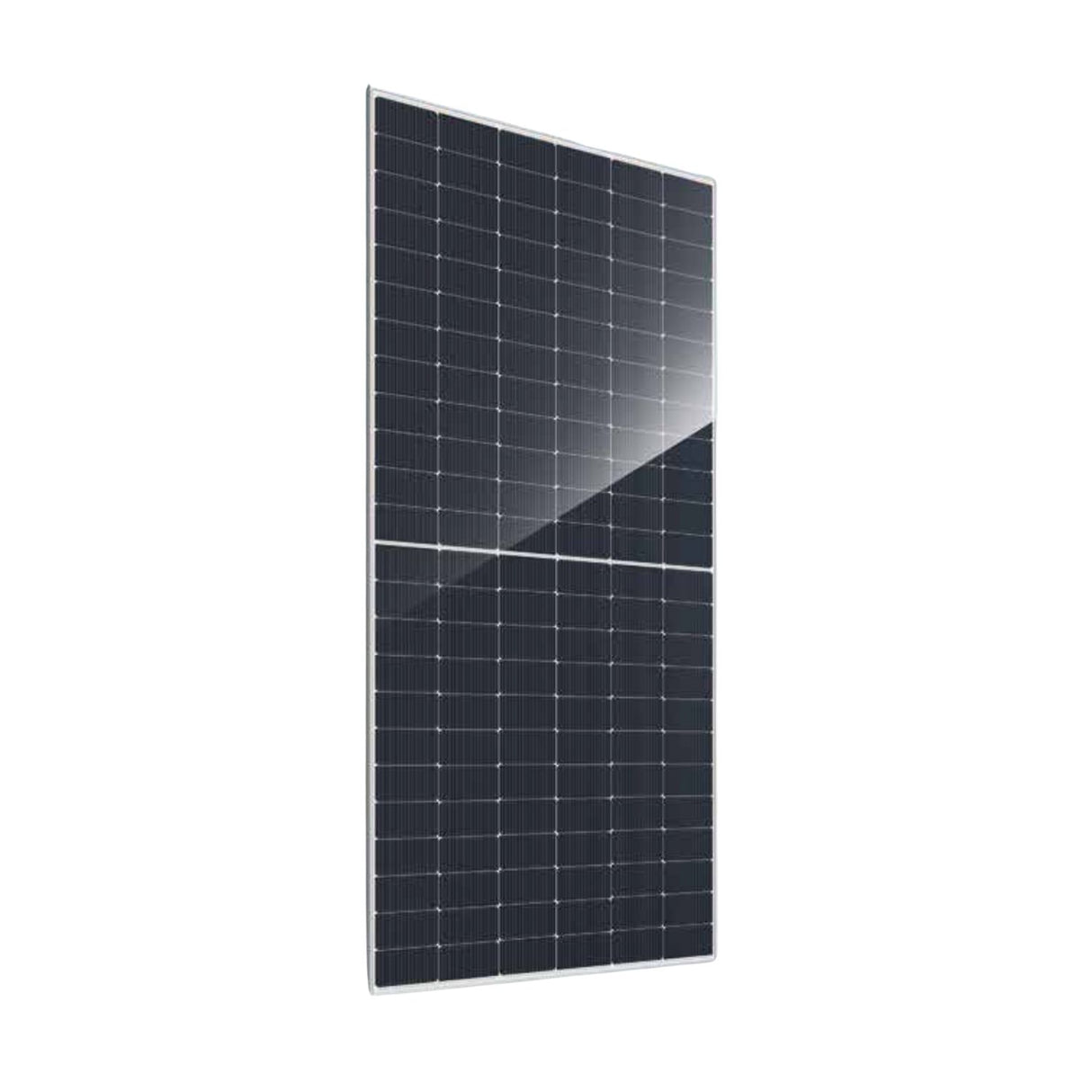

JA Solar JAM66D45 LB 605W Bifacial Solar Panel is a high-efficiency N-Type double-glass module designed for commercial, industrial, and utility-scale solar projects. Built on JA Solar’s advanced DeepBlue 4.0 Pro platform, this module delivers excellent energy yield, improved durability, and long-term reliability.
The panel uses advanced N-Type Bycium+ cells with 16-busbar (16BB) half-cell technology to improve efficiency and reduce power loss. Its bifacial double-glass design allows power generation from both the front and rear sides of the panel, increasing overall energy production depending on installation conditions.
- Rated Power: 605W
- Module Efficiency: Up to 22.4%
- Cell Technology: N-Type Bycium+ with 16BB half-cell design
- Bifacial Design: Generates power from both sides of the module
- Low Temperature Coefficient: −0.29%/°C for better performance in hot climates

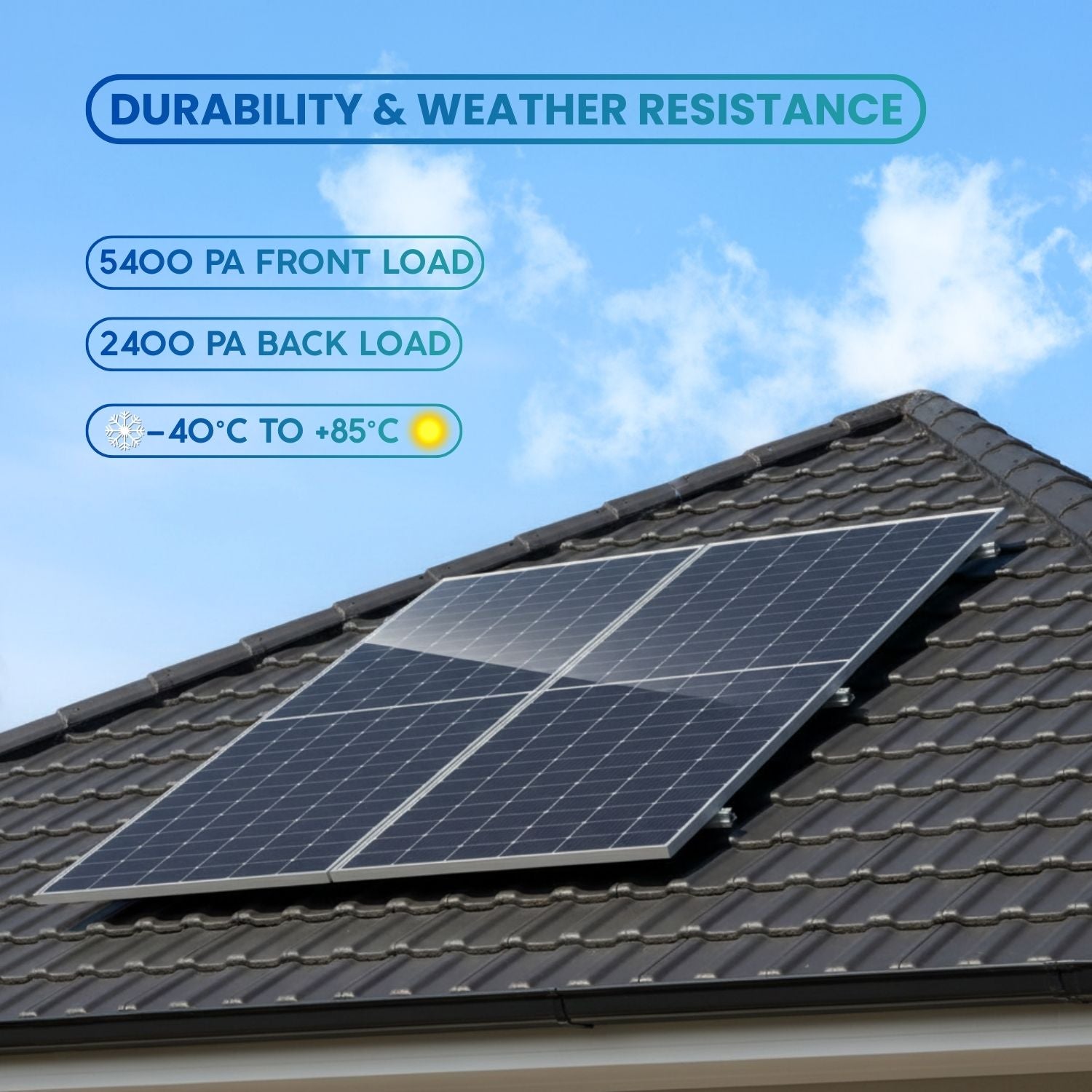

- High Mechanical Strength: 5400 Pa front load / 2400 Pa rear load
- System Voltage: Up to 1500V DC
- Excellent Low-Light Performance
- Product Warranty: 12 Years
- Performance Warranty: 30-Year linear power output
Designed for large rooftop systems, ground-mounted arrays, and utility-scale solar farms, the JA Solar 605W module provides high power density, strong durability, and reliable long-term performance.
JA Solar JAM66D45 LB 605W N-Type Double Glass Bifacial Module(0.395/W) está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Hable con verdaderos expertos en cualquier momento
Hable con verdaderos expertos en cualquier momento
Soporte técnico de por vida por parte de nuestros especialistas internos
Garantía sin complicaciones
Garantía sin complicaciones
Garantía sin esfuerzo para su comodidad.
Valor inmejorable, garantizado
Valor inmejorable, garantizado
¿Lo encuentras más barato en otro sitio? Te lo igualamos.
JA Solar JAM66D45 LB 605W N-Type Double Glass Bifacial Module(0.395/W)
Descripción
Descripción
The JA Solar JAM66D45 LB 605W is a high-performance N-Type double glass bifacial solar panel designed for commercial, industrial, and utility-scale solar installations. Built on JA Solar’s DeepBlue 4.0 Pro platform, this module delivers excellent energy yield, enhanced reliability, and a lower levelized cost of electricity (LCOE).

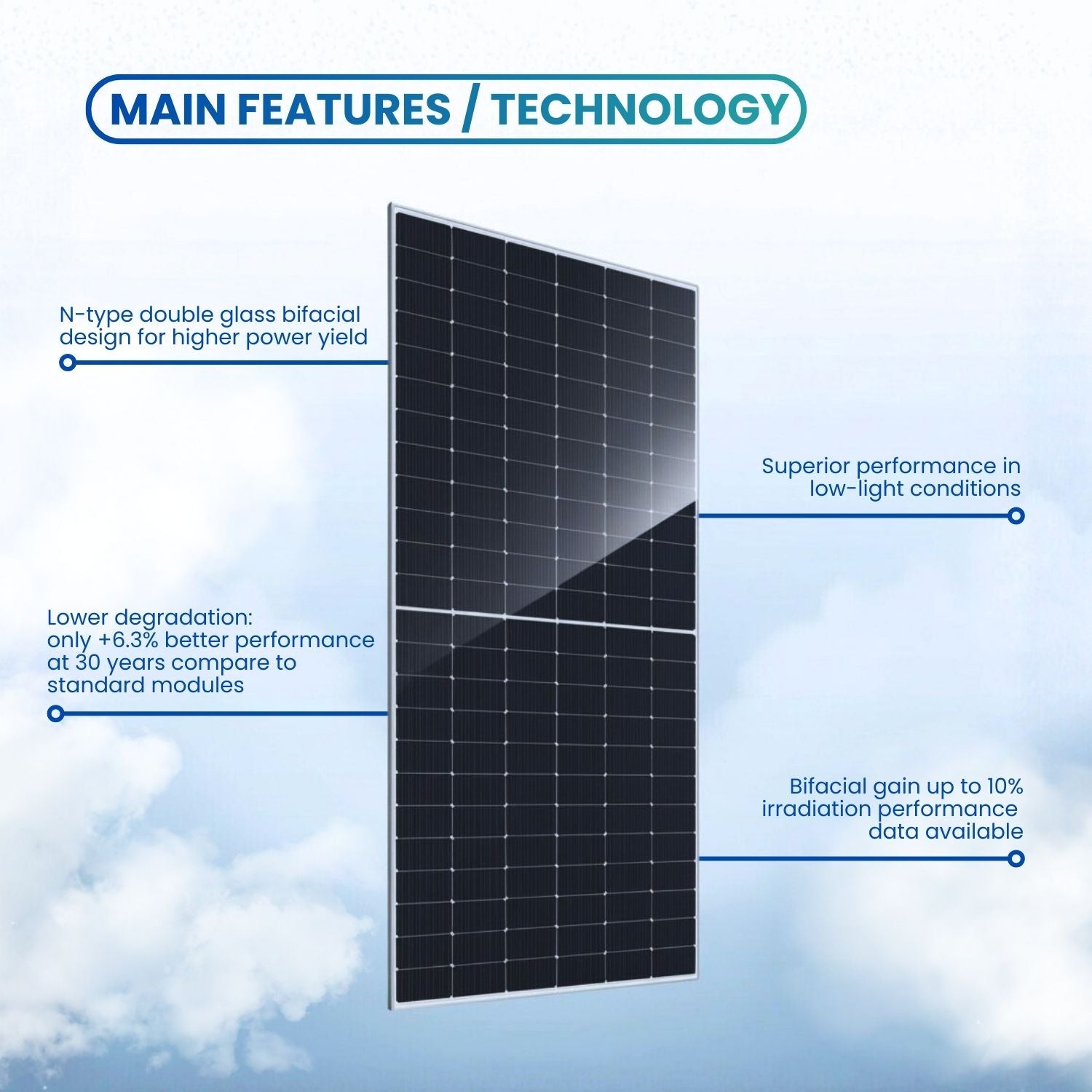

Featuring advanced N-Type Bycium+ cells with 16-busbar (16BB) half-cell technology, the JAM66D45 LB provides outstanding efficiency and stable power output. The bifacial double-glass design enables energy generation from both the front and rear sides of the panel, allowing additional energy gain from reflected sunlight depending on installation conditions.
With a module efficiency of up to 22.4%, this solar panel maximizes power generation per square meter while maintaining strong performance in different environmental conditions. Its low temperature coefficient of −0.29%/°C helps maintain higher output in hot climates, while improved low-irradiance performance ensures better energy production during cloudy or low-light conditions.
SPECIFICATIONS
SPECIFICATIONS
Technical Specifications
| Electrical Parameters (STC) | |
|---|---|
| Rated Maximum Power (Pmax) | 605 W |
| Open Circuit Voltage (Voc) | 47.9 V |
| Maximum Power Voltage (Vmp) | 39.6 V |
| Short Circuit Current (Isc) | 16.00 A |
| Maximum Power Current (Imp) | 15.28 A |
| Module Efficiency | 22.4% |
| Temperature Characteristics | |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.045% / °C |
| Mechanical Parameters | |
| Cell Type | N-Type Mono |
| Number of Cells | 132 Cells |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 33.2 kg |
| Front / Back Glass | 2.0 mm / 2.0 mm Double Glass |
| Junction Box | IP68, 3 Bypass Diodes |
| Connector | QC 4.10-351 / MC4-EVO2 |
| Operating Conditions | |
| Maximum System Voltage | 1500 V DC |
| Operating Temperature | -40°C to +85°C |
| Maximum Front Load | 5400 Pa |
| Maximum Rear Load | 2400 Pa |
| Bifaciality | 80% ±10% |
