Complete 3.8kW Grid-Tie Solar Kit with 4.5kW Bifacial Panels
Pickup available at USA Fulfillment Center
Usually ready in 24 hours
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Speak To a Solar Specialist

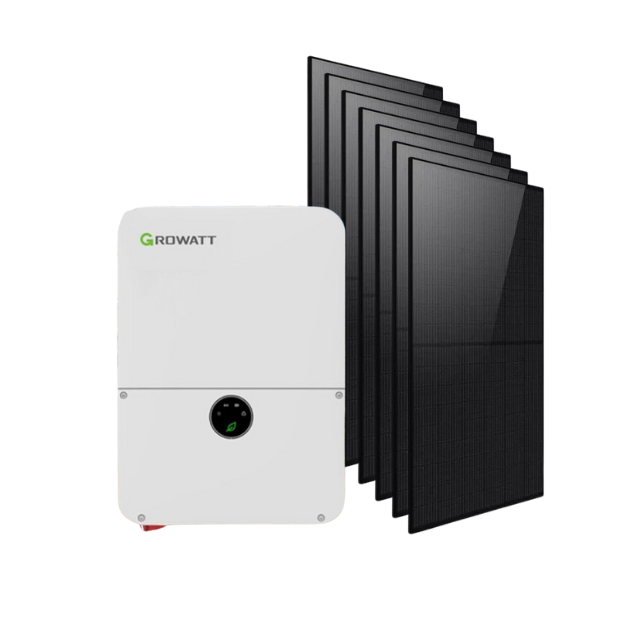

Complete 3.8kW Grid-Tie Solar Kit with 4.5kW Bifacial Panels
solar industry experience
10,000+ American
customers
return policy
Warranty
What it is, and what it is for
Power your home with a high-efficiency Complete 3.8kW grid-tie solar system featuring a Growatt MIN 3800TL-XH-US inverter ,10 × JA Solar JAM54D41 450W bifacial solar panels, 10 x Tigo TS4-A-F Rapid Shut down Devices and 1 Set of 40Ft 10 Awg PV cables delivering a total solar array capacity of 4.4kW.
Designed for residential grid-connected solar installations, this complete solar solution combines high-efficiency energy production, dual MPPT tracking, remote monitoring, rapid shutdown compatibility, and future battery-storage capability.
Key Features
- 4.5kW Solar Array: Includes 10 × JA Solar JAM54D41 450W high-efficiency monocrystalline bifacial solar panels.
- 3.8kW Growatt Grid-Tie Inverter: Reliable 208/240V output for residential solar installations.
- Up to 98% Inverter Efficiency: Converts more available solar energy into usable electricity.
- Dual MPPT Technology: Optimizes solar production across different roof orientations and operating conditions.
- Battery Ready: Supports future DC-coupled and AC-coupled energy storage configurations.
- Smart Solar Monitoring: Monitor system performance through compatible Wi-Fi/cloud connectivity.
- Rapid Shutdown & AFCI Support: Designed with advanced solar system safety features.
- Weather-Resistant Design: NEMA 4X/IP65-rated inverter suitable for indoor or outdoor installation.
- Bifacial Solar Technology: Panels can generate power from sunlight reaching both the front and rear surfaces.
- 10-Year Inverter Warranty: Backed by Growatt's comprehensive warranty coverage.
Growatt MIN 3800TL-XH-US Inverter
The Growatt MIN 3800TL-XH-US delivers 3,800W of rated AC output with up to 98% peak efficiency. Its two independent MPPT trackers help maximize solar production, while a maximum recommended PV input of up to 7,600W provides flexibility when designing your solar array.
Key specifications include:
Rated AC Output: 3,800W
Nominal AC Voltage: 208/240V
Maximum PV Input: 7,600W
Maximum DC Voltage: 600V
MPPT Range: 50–550V
Number of MPPTs: 2
Peak Efficiency: 98%
Enclosure: NEMA 4X / IP65
Grid Frequency: 60Hz
Warranty: 10 Years
JA Solar JAM54D41 450W Bifacial Solar Panels
The system includes 10 × JA Solar JAM54D41 450W monocrystalline bifacial solar panels, providing approximately 4.4KW of total rated PV capacity.
Each panel features high-efficiency solar cells, durable aluminum framing, tempered glass, integrated bypass diodes, MC4-compatible connectors, and a weather-resistant design for long-term residential solar installations.
Ideal for Residential Grid-Tie Solar
This 3.8kW grid-tie solar panel kit is ideal for homeowners looking to reduce grid electricity consumption, generate clean renewable energy, and build a solar system that can accommodate future energy-storage upgrades.
Professional installation by a qualified solar installer or electrician is recommended. Local permitting, utility interconnection and code requirements should be confirmed before installation.
4 components, and one thing that isn't here
Each one is a product we sell on its own, so you can read its full listing, and replace or add to it later.
-
Growatt 3.8kW MIN 3800TL-XH-US Grid-Tie Inverter | Battery Storage Solar Inverter
View →
-
JA Solar JAM54D41 LB 450W | N-Type Double Glass Bifacial Solar Panel | Black Module (0.42$/W)
View →
-
ROCKSOLAR PV Cables One Pair Red+Black for Off Grid Solar Systems
View →
-
Tigo TS4-A-F Rapid Shutdown Device | Solar RSD
View →
Rails, roof hooks, ground-mount posts and clamps depend on the roof or ground they go on, so no system ships with them. They are sold separately, and the finder adds the right pack for your surface when it sizes a system.
Published before you buy. No email required.
The wiring diagram and the commissioning record are drawn from this system's own figures.
- User manualInstallation, operation and settings, from the box.Download PDF →
- DatasheetThe manufacturer's ratings, limits and certifications.Download PDF →
- Wiring diagramSingle-line diagram: array, inverter, battery, disconnects and grounding.View and print →
- Commissioning recordThe checks and readings to take before the system goes live.View and print →
The wiring diagram and commissioning record are for customer reference only. They are not a stamped design. Installation, grounding and any grid connection must be carried out by a licensed electrician, and a professional engineer's review is required where your jurisdiction calls for one.
Every number, by component.
The figures the manufacturer publishes. The datasheet above is the reference if the two ever differ.
| Inverter Specification | Details |
|---|---|
| Manufacturer | Growatt |
| Model | MIN 3800TL-XH US (WIFI/LAN+TIGO) |
| Rated Power Output [W] | 3800 |
| Length [mm (in)] | 569 mm (22.41 in) |
| Width [mm (in)] | 400 mm (15.75 in) |
| Depth [mm (in)] | 170.5 mm (6.98 in) |
| Weight [kg (lb)] | 17.4 kg (38.36 lb) |
| Wormanship Warranty Period [Years] | 10 |
| Inverter Type | Hybrid inverter |
| Maximum/Peak Efficiency [%] | 98 |
| CEC weighted efficiency @ 240V [%] | 97 |
| Transformer / Transformerless | Transformerless |
| DC Power Rating [W] | 7600 |
| Nom. DC Voltage [V] | 360 |
| Max. Input Power [W] | 7600 |
| Max. Input Voltage [V] | 600 |
| Min. DC voltage / start voltage [V] | 50 |
| Number of DC String Inputs (Inlets) | 4 |
| Number of MPP Trackers | 2 |
| Max. Input Power per MPPT [W] | 3800 |
| Max. Input Voltage per MPPT [V] | 600 |
| Max. Input Current per MPPT [A] | 16.9 |
| Voltage Lower Limit for MPP Range [V] | 50 |
| Voltage Upper Limit for MPP Range [V] | 550 |
| DC Disconnection Type | Integrated |
| Reverse-Polarity Protection | Yes |
| Ground-Fault Isolation Detection | Yes |
| AC Power Rating [W] | 3800 |
| Nominal AC Power [W] | 3800 |
| Max. AC Power [W] | 3800 |
| AC voltage range [V] | 208V: 183-229V / 240V: 211-264V |
| AC grid frequency [Hz] | 60 |
| Max. output current [A] | 16 |
| Nominal AC Voltage [V] | 208/240 |
| Maximum AC Voltage Range [V] | 264 |
| Nominal AC Frequency [Hz], range [Hz-Hz] | 60 |
| AC Connection Type | L1/L2/N/PE |
| AC Current Distortion [THD%] | <3% |
| AC Input Wire Gauge Range [AWG] | 6 AWG - 8 AWG |
| Sleep (Night) Consumption [W] | <5W |
| NEMA Enclosure Rating | NEMA4X (IP65) |
| Cooling Method | Natural Convection |
| Ambient Temperature Range [°C(°F)] | -25°C to +60°C (-13°F to +140°F) |
| Operating Humidity [%] | 0~95% |
| Operating Altitude [ft/m] | 9843ft (3000m) |
| Display | OLED |
| Communication | RS485 included, WiFi/4G Optional |
| Basic Warranty [Years] | 10 |
| Warranty Extension Options [Years] | 15, 20 |
| Compliances | IEEE1547, CA Rule21, Rule14 (HECO Compliant), FCC Part15 Class B, UL1741, UL1741SA,CSA C22.2, UL1699B, UL1741 CRD |
| AC grid range [Hz] | 45-65 |
| Max. recommended PV power (@ module STC) | 7600 |
| JA Solar JAM54D41 LB 450W N-Type Double Glass Bifacial Solar Panel | Details |
|---|---|
| Rated Power (as supplied) | 450W |
| Brand | JA Solar |
| Model | JAM54D41 LB |
| Power Output Range | 430W – 455W |
| Cell Technology | N-Type Bycium+ Mono-Crystalline |
| Module Type | Double Glass Bifacial Half-Cell (16BB) |
| Number of Cells | 108 (6 × 18) |
| Maximum Module Efficiency | Up to 22.5% |
| Bifaciality Ratio | Approx. 80% |
| Power Tolerance | 0 ~ +3% |
| Module Dimensions | 1762 × 1134 × 30 mm |
| Module Weight | 22 kg |
| Front Glass | 1.6 mm Heat-Strengthened Glass |
| Rear Glass | 1.6 mm Heat-Strengthened Glass |
| Frame | Anodized Aluminum Alloy (Black, 30 mm) |
| Junction Box | IP68 Rated with MC4-EVO2 Connectors |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse | 30 A |
| Operating Temperature | −40°C to +85°C |
| Temperature Coefficient (Pmax) | −0.29% / °C |
| Mechanical Load (Front) | 5400 Pa |
| Mechanical Load (Rear) | 2400 Pa |
| Product Warranty | 12 Years |
| Performance Warranty | 30-Year Linear Power Warranty (≤ 0.4% annual degradation) |
| Country of Origin | China |
Before you order.
If yours isn't here, ask an engineer. It costs nothing and it's the step most people skip.
Is the racking or mounting hardware included?
No. Rails, roof hooks, ground-mount posts and clamps depend on the roof or ground they go on, so no system ships with them. They are sold separately. The finder adds the right pack for your surface when it sizes a system, or ask us and we will match one to your roof.
Can I install it myself?
The equipment ships ready to connect, but the AC side, the grounding and any connection to the grid must be done by a licensed electrician. A grid-tied or hybrid system also needs a permit and your utility's interconnection approval before it is switched on. The wiring diagram and commissioning record we publish are for reference; they are not a stamped design, and a professional engineer's review is required where your jurisdiction calls for one.
Are the solar panels included?
Where the title names an array — “7.04 kW panels”, say — the panels are in the box and appear under What ships. A backup system whose title names no array, such as the Growatt whole-home and partial-home backup systems, is the inverter and battery only, and its listing says so. Panels for those are sold separately.
What is the difference between off-grid, grid-tie and hybrid?
An off-grid system has no utility connection: the battery carries the night and the generator input carries the dark days. A grid-tie system has no battery: it feeds your panel and the grid by day and goes dark in an outage. A hybrid system does both — it works with the grid and keeps a battery, and with its transfer switch it carries your essential circuits through an outage.
Which tax credits and incentives apply?
The 30% federal residential credit ended on 31 December 2025, and nothing on this page assumes it. Some states still run their own credits, sales-tax exemptions or generation payments; the savings estimate above lists the ones we know of for your state, and our tax credit guide explains what applies in 2026.
Can I charge from a generator?
Most off-grid inverters in the range have a generator input for charging on dark days; the specification table says whether this one does and at what current. A grid-tie inverter has no generator input. A hybrid system takes a generator through its transfer switch, if your electrician wires one in.
What if I'm not sure this is the right product?
Ask before you order. Send us what you need to run, or your pool or well figures, and an engineer will confirm the choice — it costs nothing. Or use the finder below, which sizes from what you actually run and shows its reasoning.
