WIT 28kW Commercial AC-Coupled Hybrid Inverter

$26,341.78 $35,999.99
Shipping calculated at checkout.
  • High Efficiency: Max efficiency of 98.00%, minimizing energy loss.
  • Advanced Protection: Comprehensive safety mechanisms, including AC/DC surge protection.
  • Smart Cooling: Utilizes smart air cooling technology for optimal performance.
  • Environmental Durability: Rated IP66/NEMA 4X for indoor and outdoor use.
  • Flexible Connectivity: Supports RS485/CAN/USB, with optional RS485/4G/LAN-X for remote monitoring.
  • Wide Operating Range: Functions from -30°C to +60°C.
  • Robust Output: 28kW continuous power output, ideal for commercial systems.
  • Global Certifications: Meets UL1741 and IEEE1547 standards.
  • Extended Warranty: 5 to 7-year warranty for long-term reliability.
  • Comprehensive Monitoring: Advanced connectivity for system monitoring and management.

Free Shipping

Orders Over $100? Shipping's On Us!

Hassle Free Warranty

Effortless Warranty for Your Ease.

Lifetime Customer Support

Endless Support, Because You Matter.

Description

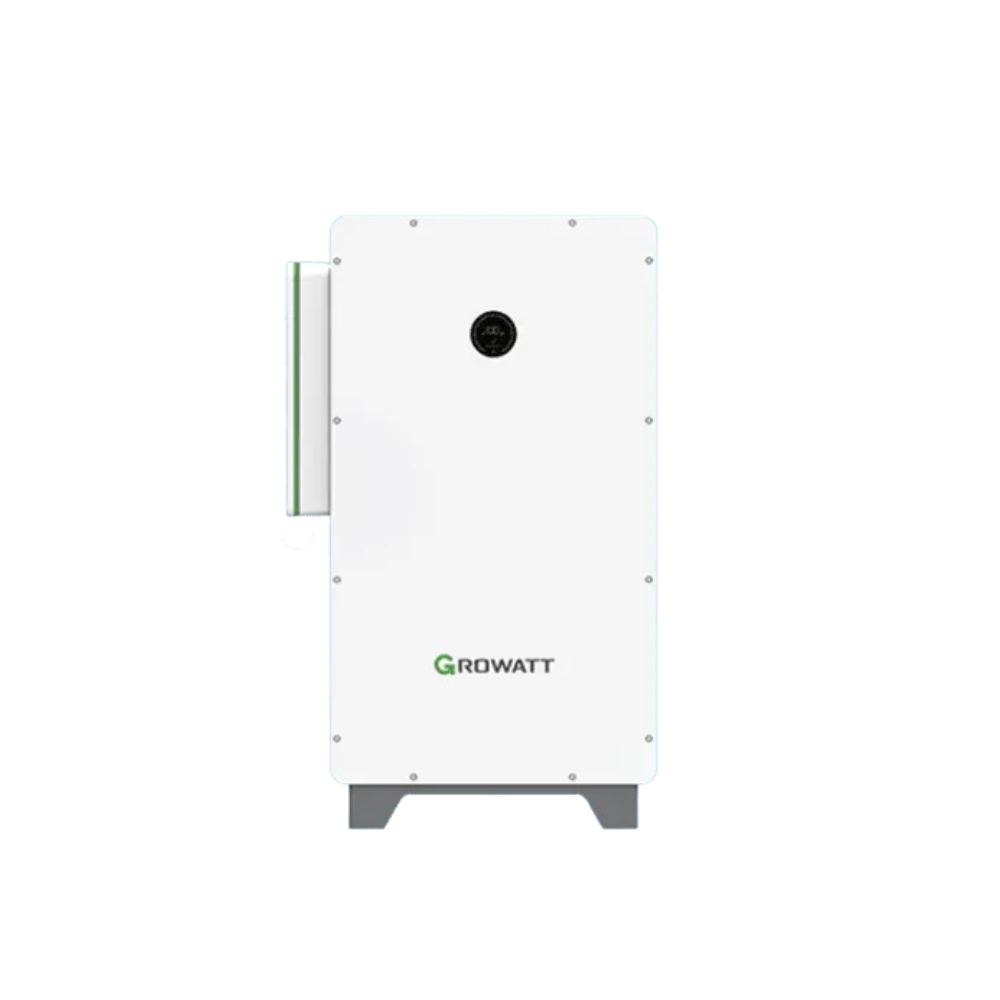

WIT 28kW Commercial AC-Coupled Hybrid Inverter

The WIT 28kW Commercial AC-Coupled Hybrid Inverter is designed for high-performance solar energy systems, offering an efficient and reliable solution for managing and enhancing solar energy storage and usage. This advanced inverter is part of the WIT series, specifically tailored for commercial applications that demand high power output and versatility in energy management.

Key Features:

  • High Efficiency: With a maximum efficiency of 98.00%, the WIT 28kW inverter ensures that a minimal amount of solar energy is lost during the conversion process, maximizing the energy available for storage or immediate use.
  • Robust Protection Mechanisms: Equipped with comprehensive protection features, including battery reverse protection, AC/DC surge protection, and more, it safeguards the solar energy system and connected devices against potential electrical issues.
  • Smart Cooling System: The inverter utilizes smart air cooling to maintain optimal performance levels even under high load conditions, extending the lifespan of the unit and ensuring consistent operation.
  • Durable and Weather-Resistant: Designed with an IP66/NEMA 4X rating, the WIT 28kW inverter is built to withstand harsh environmental conditions, making it suitable for both indoor and outdoor installations.

Technical Specifications:

  • Nominal Power Output: Delivers a continuous power output of 28kW, making it an ideal choice for commercial settings with substantial energy requirements.
  • AC Output Voltage and Frequency: Supports a nominal AC voltage of 208/220V and a frequency range of 45-65Hz, compatible with standard commercial electrical systems.
  • Max. Output Current: Designed to handle significant power demands with a robust output current capacity.
  • Operating Temperature Range: Operates efficiently across a wide temperature range from -30°C to +60°C, ensuring reliability across various climatic conditions.

Advanced Connectivity and Monitoring:

  • Comprehensive Interfaces: Comes equipped with RS485/CAN/USB for essential communication and offers optional RS485/4G/LAN-X for enhanced connectivity, facilitating easy system monitoring and management through various platforms.

Warranty and Certification:

  • Extended Warranty: Backed by a warranty of 5 years, demonstrating a strong commitment to quality and long-term performance.
  • Global Certifications: Meets critical standards like UL1741 and IEEE1547, ensuring compliance and suitability for a wide range of commercial applications globally.

The WIT 28kW Commercial AC-Coupled Inverter stands out as a top-tier solution for commercial solar installations, combining high efficiency, advanced protection, and smart features to optimize solar energy utilization. Whether for energy storage or direct use, this inverter delivers exceptional performance and reliability, making it an excellent investment for businesses looking to harness solar power effectively.

SPECIFICATIONS

Specification Details
Nominal AC Power 28kW
Max. Efficiency 98.00%
Protection Mechanisms Battery reverse protection, AC/DC surge protection, Insulation resistance monitoring, Ground fault monitoring, Grid monitoring, Residual current monitoring unit, AC short-circuit protection, Anti-islanding protection
Cooling System Smart air cooling
Ingress Protection IP66/NEMA 4X
Operating Temperature Range -30°C to +60°C (>50°C derating)
Communication Interfaces RS485/CAN/USB, optional RS485/4G/LAN-X
AC Output Voltage and Frequency 208/220V, 50/60Hz
Max. Output Current Varies by model, up to 168.1A@208V for the highest capacity models
Dimensions and Weight 820x1350x510mm, approx. 720kg
Warranty 5 to 7 years
Certifications UL1741, IEEE1547, and compliant with various other standards
