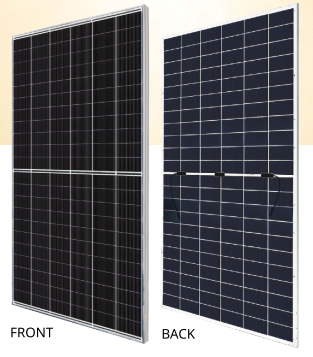

Canadian Solar TOPBiHiKu7 705W N-Type Bifacial TOPCon Solar Module 31Pc/Pallet
TOPBiHiKu7 CS7N-705TB-AG | 705W N-Type Bifacial TOPCon Solar Module
High-efficiency 705W solar module featuring N-Type TOPCon cells and bifacial power generation for up to 10% more energy output. Durable dual-glass design ensures long-term reliability, stability, and top performance under all environmental conditions.
- Up to 22.6% efficiency
- 705W high power output
- Bifacial gain up to 10%
- Lower LCOE and higher ROI
Canadian Solar TOPBiHiKu7 705W N-Type Bifacial TOPCon Solar Module 31Pc/Pallet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Canadian Solar TOPBiHiKu7 705W N-Type Bifacial TOPCon Solar Module ...
Description
Description
TOPBiHiKu7 CS7N-705TB-AG | 705W N-Type Bifacial TOPCon High-Efficiency Solar Module
Product Overview
The TOPBiHiKu7 CS7N-705TB-AG solar module utilizes advanced N-Type Bifacial TOPCon cell technology to deliver outstanding power output and reliability. With a nominal power of 705W, this module performs excellently under high-temperature and low-irradiance conditions, making it ideal for utility-scale power plants, commercial rooftops, and agrivoltaic applications. The bifacial design enables up to 10% additional energy gain from the rear side.
Electrical Data (STC)
| Item | Specification |
|---|---|
| Maximum Power (Pmax) | 705 W |
| Operating Voltage (Vmp) | 40.2 V |
| Operating Current (Imp) | 17.55 A |
| Open Circuit Voltage (Voc) | 48.1V |
| Short Circuit Current (Isc) | 18.54 A |
| Module Efficiency | 22.7% |
| Bifacial Gain | Up to 20% (Approx. 846 W output) |
Mechanical Data
- Cell Type: N-Type TOPCon Cells
- Cell Arrangement: 132 (2 × 11 × 6)
- Dimensions: 2384 × 1303 × 35 mm (93.9 × 51.3 × 1.38 in)
- Weight: 37.9 kg (83.6 lbs)
- Front Glass: 2.0 mm heat-strengthened glass with anti-reflective coating
- Back Glass: 2.0 mm heat-strengthened glass
- Frame: Anodized aluminum alloy
- Junction Box: IP68, 3 bypass diodes
- Cable: 6.0 mm² (IEC) / 10 AWG (UL)
- Connector: T6 or MC4 series
Temperature Characteristics
| Temperature Coefficient (Pmax) | -0.29 % / °C |
| Temperature Coefficient (Voc) | -0.25 % / °C |
| Temperature Coefficient (Isc) | +0.05 % / °C |
| Nominal Module Operating Temperature (NMOT) | 41 ± 3 °C |
Certification and Safety
- Operating Temperature Range: -40°C to +85°C
- Maximum System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
- Protection Class: Class I
- Maximum Series Fuse Rating: 35A
- Power Tolerance: 0 ~ +10 W
Main Features
- High efficiency up to 22.6%
- Bifacial power generation for up to 10% additional yield
- Excellent performance under low irradiance and high temperatures
- Durable design with anodized aluminum frame and dual-glass protection
- Lower Levelized Cost of Energy (LCOE) and improved return on investment
TOPBiHiKu7 705W Solar Module — Delivering superior efficiency, durability, and clean energy performance for modern solar projects.
