MidNite Solar MNBCB 500/50 500A DC Battery Combiner Box

Sale price $485.00 Regular price $525.00
Questions or Bulk Orders?

Pickup available at USA Fulfillment Center

Usually ready in 24 hours

Talk to Real Experts Anytime

Lifetime tech support from our in-house specialists

Hassle Free Warranty

Effortless Warranty for Your Ease.

Unbeatable Value, Guaranteed

Find it cheaper elsewhere? We'll match it.

Over 25 years of
solar industry experience
Trusted by
10,000+ American
customers
Hassle-free 30-day
return policy
Industry-Leading
Warranty
About this product

What it is, and what it is for

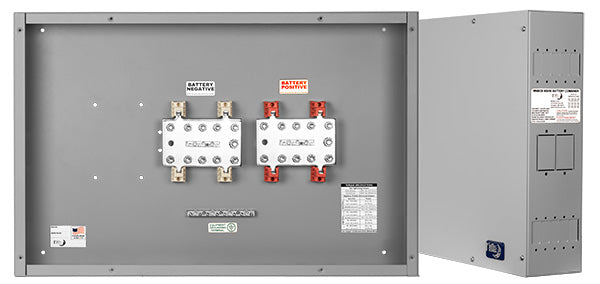

The MidNite Solar MNBCB 500/50 is a 500A battery combiner box with 500A positive and negative busbars and 3/8-inch connection studs. It provides a central connection point for battery cables in indoor battery systems, with a maximum DC voltage of 150V DC.

The enclosure is made from powder-coated aluminum with stainless steel hardware and has a Type 1 indoor environmental rating. The MNBCB 500/50 is ETL Listed to UL 1741 for use in the United States and Canada and carries a 5-year manufacturer warranty.

Key Features

  • 500A positive and negative busbars with 3/8-inch studs.
  • Cables can be double lugged. The copper busbars can be drilled for additional mounting locations; MidNite recommends 3/8-inch stainless steel bolts when drilling holes for additional ring terminals.
  • 24 combination 3/4-inch and 1-inch knockouts, plus 8 combination 1-1/2-inch and 2-inch knockouts.
  • Mounting provisions for optional large and small MNEDC circuit breakers.
  • Made in the USA.

Technical Specifications

Model MNBCB 500/50
Amperage rating 500A
Maximum DC voltage 150V DC
Maximum AC voltage listed in brochure 277V AC
Busbars 500A positive and negative copper busbars
Output stud size 3/8 inch
Enclosure material Powder-coated aluminum with stainless steel hardware
Enclosure rating Type 1 (indoor)
3/4-inch and 1-inch combination knockouts 24
1-1/2-inch and 2-inch combination knockouts 8
Large breaker locations 4 locations for optional MNEDC-125 (1-inch wide) and MNEDC-175–250 (1-1/2-inch wide) breakers
Small breaker locations 20 locations for optional MNEDC 1–100A breakers
Certification ETL Listed to UL 1741 for use in the United States and Canada
Warranty 5 years
Country of manufacture USA

Included and Optional Components

Includes the combiner enclosure and 500A positive and negative busbars. Circuit breakers are optional. Select breakers with voltage and current ratings appropriate to the installation.

Product Documentation

Download the MidNite Solar MNBCB Series Brochure, Rev B (PDF)
