JA 595W n-type Bifacial Double Glass High Efficiency Mono Module (0.335$/W)(36panels/ Pallet)
- 575–600W N-Type bifacial double-glass solar panel
- DeepBlue 4.0 Pro high-efficiency mono module
- Up to 22.7% module efficiency
- SMBB half-cell technology for higher yield
- Better weak-light performance and lower LID
- 1500V system compatibility for utility projects
- IP68 junction box with MC4-EVO2 connectors
- Strong load rating: 3600 Pa front / 1600 Pa rear
- Operating temperature: −40°C to +85°C
- 12-year product warranty + 30-year power warranty
JA 595W n-type Bifacial Double Glass High Efficiency Mono Module (0.335$/W)(36panels/ Pallet) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
JA 595W n-type Bifacial Double Glass High Efficiency Mono Module (...
Description
Description

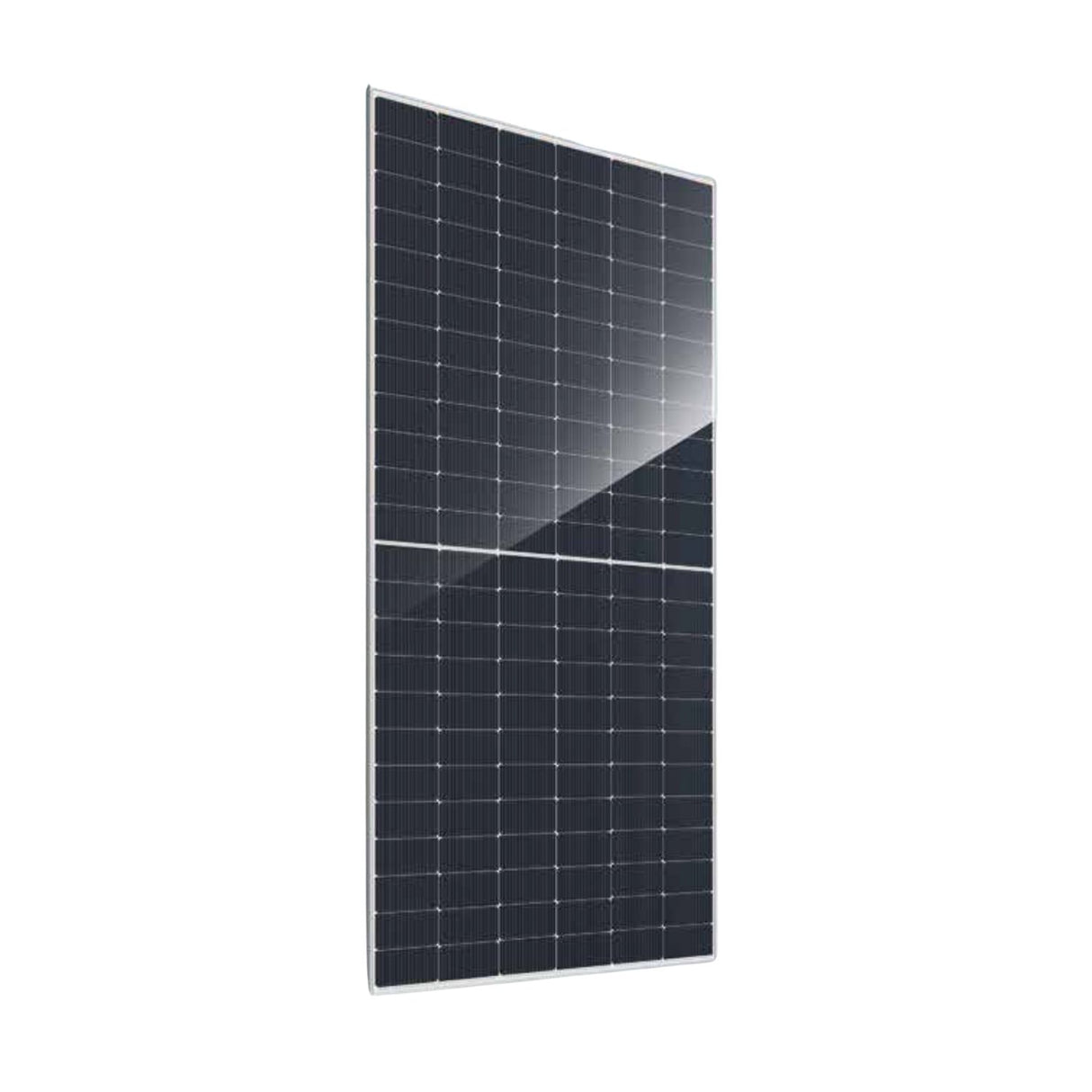

The JA Solar JAM72D40 575–600W /LB/1500V is a high-power N-Type bifacial double-glass solar module built on JA Solar’s advanced DeepBlue 4.0 Pro platform, engineered to deliver higher energy yield, lower LCOE, and long-term reliability for utility-scale and large commercial solar projects.
Powered by N-Type mono-crystalline cells with advanced SMBB half-cell technology, this module offers higher output power, lower LID, improved weak-light performance, and superior temperature behavior compared to conventional P-type modules. With module efficiencies reaching up to 22.7%, it maximizes power generation while optimizing land and balance-of-system costs.
The bifacial double-glass design enables energy generation from both the front and rear sides of the panel, providing additional rear-side power gain depending on installation conditions. The robust glass-glass structure enhances mechanical strength and long-term durability, making the module suitable for demanding outdoor environments.
Designed for modern high-voltage systems, the JAM72D40 series supports 1500V system voltage, features IP68-rated junction boxes, and is compatible with MC4-EVO2 connectors. It is certified to withstand 3600 Pa front load and 1600 Pa rear load, ensuring stable performance in wind and snow-prone regions.

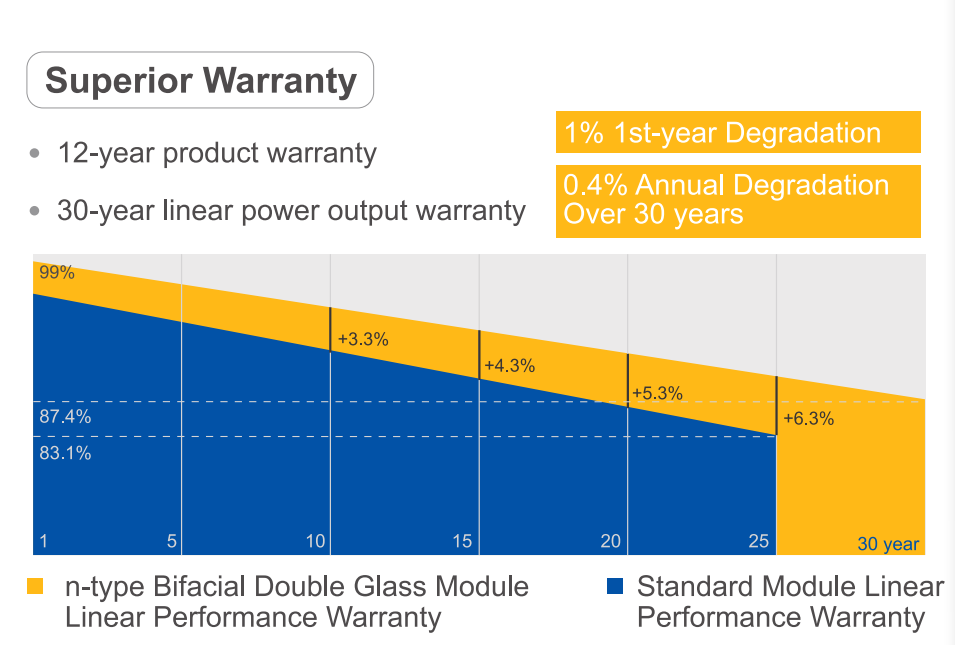

Backed by a 12-year product warranty and an industry-leading 30-year linear power output warranty, the JA Solar JAM72D40 module ensures consistent energy production and strong bankability over its service life. Manufactured by JA Solar, a globally recognized Tier-1 solar manufacturer, this module is a trusted choice for large-scale solar investments worldwide.
Ideal Applications
- Utility-scale solar power plants
- Large commercial and industrial PV systems
- Ground-mounted and tracker-based installations
- High-efficiency bifacial solar projects
SPECIFICATIONS
SPECIFICATIONS

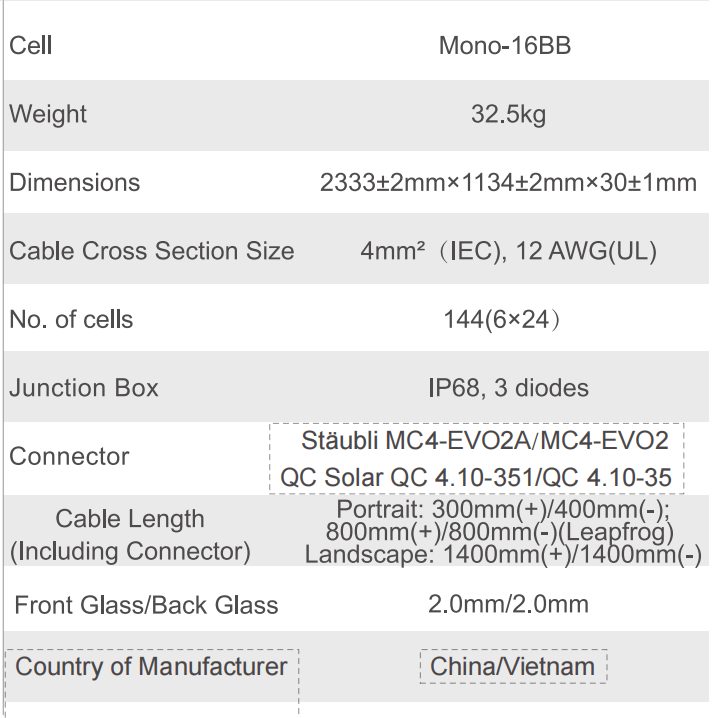

Specifications
- Cell Type: Mono 16BB
- Weight: 32.5 kg

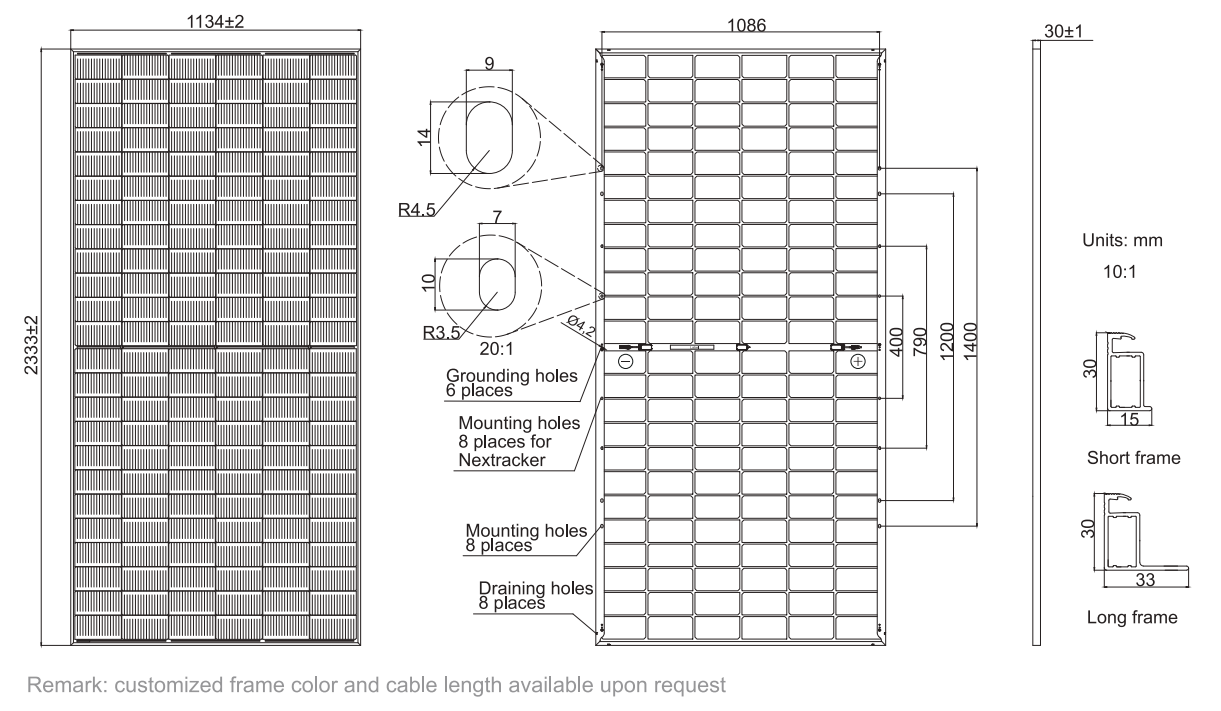

- Dimensions: 2333 × 1134 × 30 mm
- Cable Size: 4 mm² (IEC) / 12 AWG (UL)
- Number of Cells: 144 (6 × 24)
- Junction Box: IP68, 3 diodes
- Connector: MC4-EVO2 / QC Solar QC 4.10
- Cable Length: Portrait — 300mm (+) / 400mm (−); Portrait (Leapfrog) — 800mm (+) / 800mm (−); Landscape — 1400mm (+) / 1400mm (−)
- Front/Back Glass: 2.0 mm / 2.0 mm
- Country of Manufacturer: China / Vietnam
