Sol-Ark 15kW All-in-One Hybrid Inverter I Off-Grid & Grid-Tie Solar Power System with 13K Solar Input
Model: Sol-Ark 15K-LV Hybrid Inverter
PV Input Capacity: Supports up to 19.5kW (ideal for ~30 panels of 445W each)
Output Power: 15kW continuous output for residential and light commercial applications
MPPT: 3 independent MPPT trackers for maximum solar efficiency
Efficiency: Up to 97.5% peak efficiency
Battery Compatibility: Supports 48V lithium and lead-acid batteries
Backup Performance: Seamless power transfer with 5ms switching time
Monitoring: Built-in Wi-Fi and LAN for real-time system monitoring
Protection: Integrated safety features including surge protection, arc fault detection, and rapid shutdown
Enclosure: IP65 rated for indoor and outdoor installation
Expandability: Stackable up to 12 units for larger systems
Sol-Ark 15kW All-in-One Hybrid Inverter I Off-Grid & Grid-Tie Solar Power System with 13K Solar Input está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Hable con verdaderos expertos en cualquier momento
Hable con verdaderos expertos en cualquier momento
Soporte técnico de por vida por parte de nuestros especialistas internos
Garantía sin complicaciones
Garantía sin complicaciones
Garantía sin esfuerzo para su comodidad.
Valor inmejorable, garantizado
Valor inmejorable, garantizado
¿Lo encuentras más barato en otro sitio? Te lo igualamos.
Obtenga una cotización gratis
Sol-Ark 15kW All-in-One Hybrid Inverter I Off-Grid & Grid-Tie S...
Descripción
Descripción

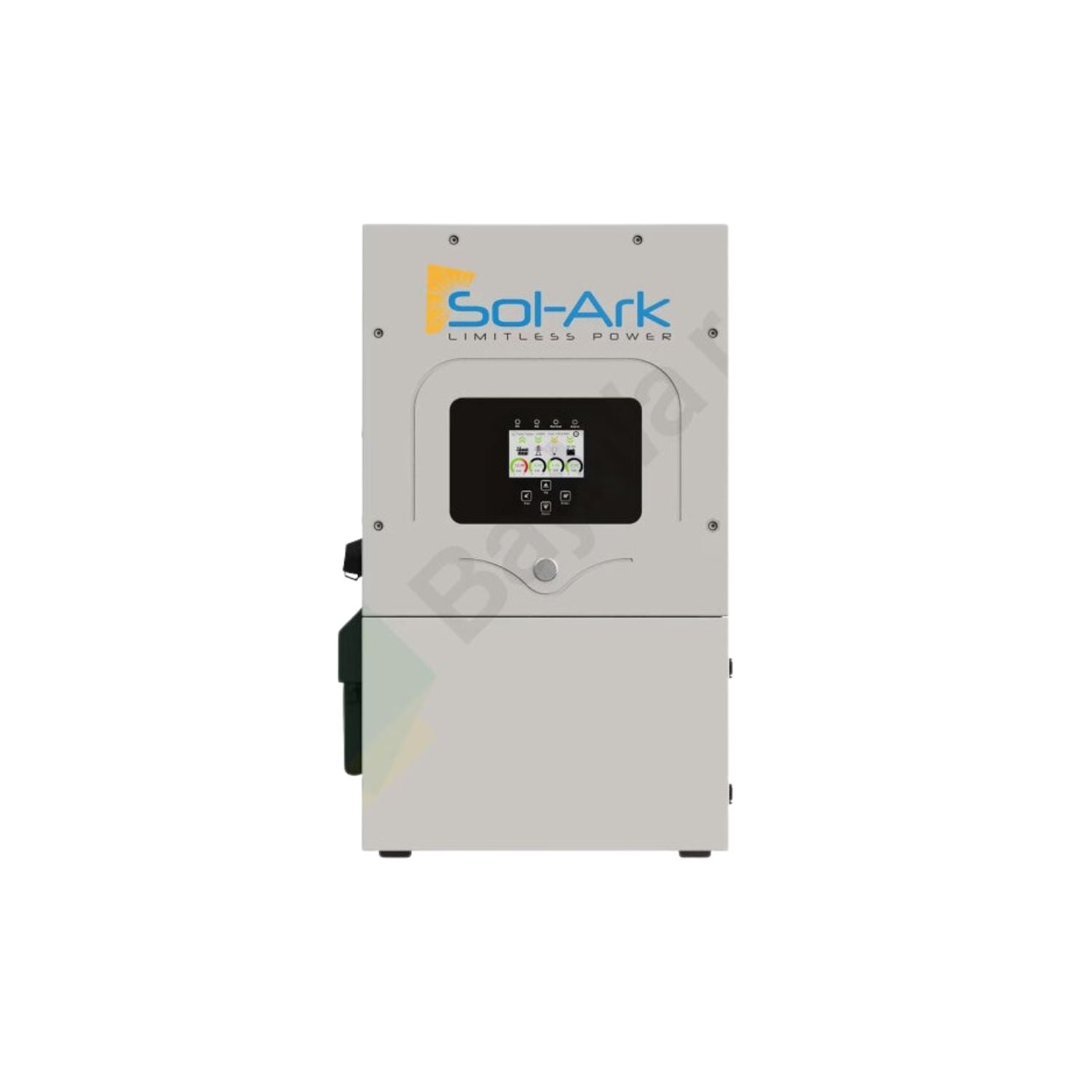

The Sol-Ark 15K-LV Hybrid Inverter is a high-performance residential energy solution designed to handle large solar systems with ease. Supporting up to 19.5kW PV input and delivering 15kW continuous output, it is ideal for systems with approximately 30 panels (445W each).
This inverter features 3 MPPT trackers for optimized energy harvesting, high efficiency up to 97.5%, and seamless backup power with a fast 5ms transfer time. It is compatible with both lithium and lead-acid batteries, making it a flexible choice for grid-tied, off-grid, or hybrid applications.
Built with advanced safety protections, integrated monitoring (Wi-Fi & LAN), and a durable IP65-rated enclosure, the Sol-Ark 15K-LV ensures reliable and efficient solar power management for residential and light commercial use.
SPECIFICATIONS
SPECIFICATIONS
| Solar Panel Specification (Hanersun 445W) | |
|---|---|
| Rated Power (Pmax) | 445W |
| Maximum Power Voltage (Vmp) | 32.90V |
| Maximum Power Current (Imp) | 13.53A |
| Open Circuit Voltage (Voc) | 38.90V |
| Short Circuit Current (Isc) | 14.33A |
| Module Efficiency | 22.8% |
| Cell Type | N-Type Monocrystalline (TOPCon), 108 Half Cells |
| Dimensions | 1722 × 1134 × 30 mm |
| Weight | 23.3 kg |
| Max System Voltage | 1500V DC |
| Operating Temperature | -40°C to +70°C |
| Temperature Coefficient (Pmax) | -0.28%/°C |
| Bifaciality | 80% ±5% |
| Warranty | 30 Years Product & Linear Power |
| Inverter Specification (Sol-Ark 15K-LV) | |
| Max PV Input Power | 19,500W |
| MPPT Voltage Range | 150V – 500V |
| Rated MPPT Range | 175V – 425V |
| Startup Voltage | 125V |
| Max DC Input Voltage | 500V |
| MPPT Trackers | 3 |
| Max Input Current per MPPT | 26A |
| Output Power | 15,000W |
| AC Voltage | 120/240V, 120/208V, 220V |
| Efficiency | Up to 97.5% |
| Battery Compatibility | 48V Lithium / Lead Acid |
| Transfer Time | 5ms |
| Monitoring | Wi-Fi & LAN |
| Protection | Arc fault detection, surge protection, rapid shutdown |
| Enclosure | IP65 Rated |
| Warranty | 10 Years |
