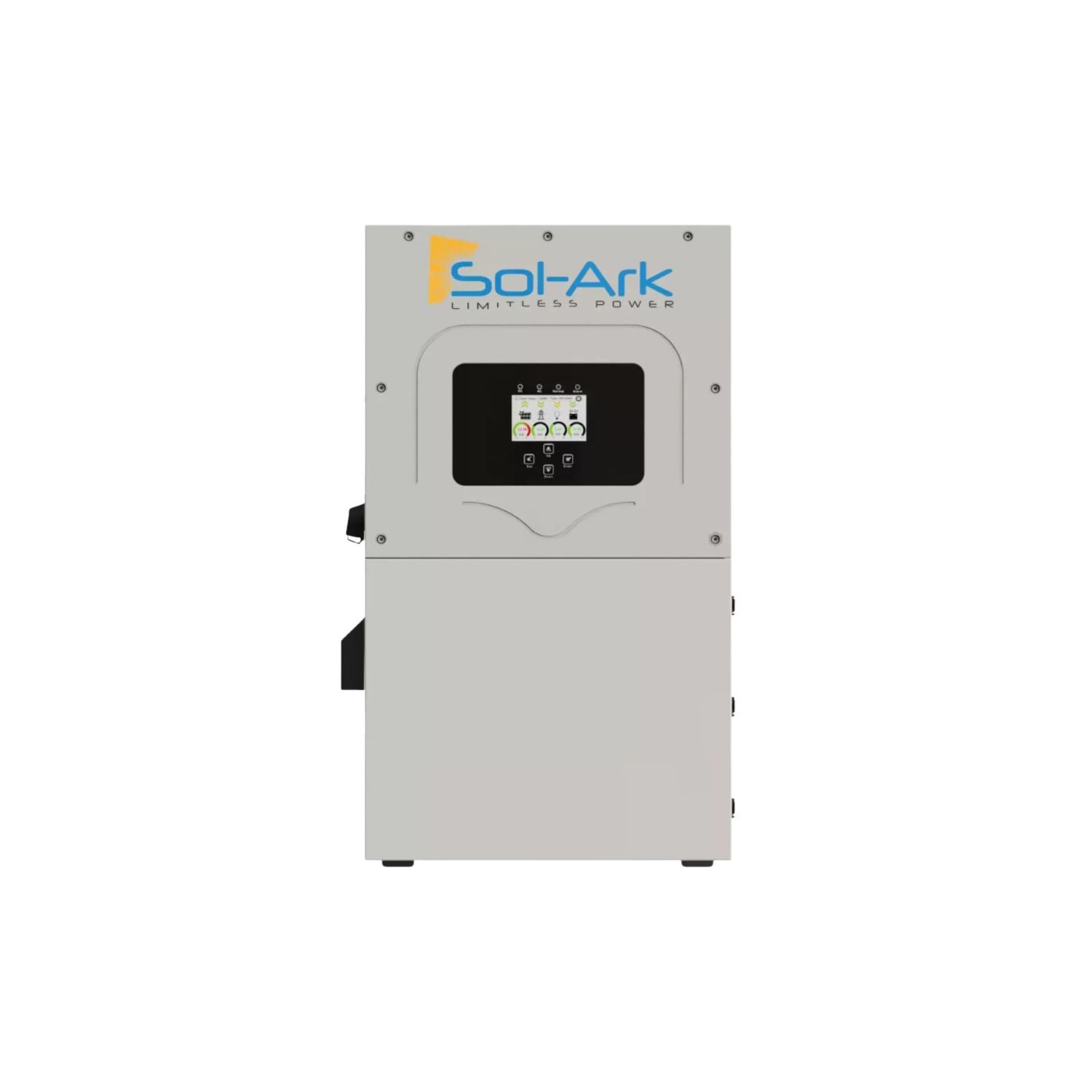

Sol-Ark 18kW All-in-One Hybrid Inverter | Off-Grid & Grid-Tie Solar Power System
18,000W continuous AC output power
36,000W surge power (10 seconds)
120/240V split-phase output (supports 208V)
Supports grid-tied, hybrid, and off-grid systems
Whole-home backup capability
Supports up to 32.4kW PV input
3 independent MPPTs
Max DC input voltage: 500V
Compatible with 48V lithium and lead-acid batteries
Battery communication via CANBus & RS485 (closed-loop BMS support)
Parallel capability: up to 12 units
IP65 / NEMA 3R rated (indoor & outdoor installation)
Maximum efficiency: 97.6%
Operating temperature: -40°C to +60°C
10-year manufacturer warranty
Sol-Ark 18kW All-in-One Hybrid Inverter | Off-Grid & Grid-Tie Solar Power System está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
Hable con verdaderos expertos en cualquier momento
Hable con verdaderos expertos en cualquier momento
Soporte técnico de por vida por parte de nuestros especialistas internos
Garantía sin complicaciones
Garantía sin complicaciones
Garantía sin esfuerzo para su comodidad.
Valor inmejorable, garantizado
Valor inmejorable, garantizado
¿Lo encuentras más barato en otro sitio? Te lo igualamos.
Obtenga una cotización gratis
Sol-Ark 18kW All-in-One Hybrid Inverter | Off-Grid & Grid-Tie S...
Descripción
Descripción
The Sol-Ark 18K-2P-N Hybrid Inverter is a powerful and intelligent energy management solution designed for off-grid, grid-tied, and backup power applications. With 18,000W continuous output and up to 36,000W surge power, it can easily support large residential loads and demanding appliances. The inverter supports high PV input capacity, advanced battery integration, and smart monitoring, making it ideal for modern solar energy systems. Built with high efficiency and robust protection features, it provides reliable performance for both residential and commercial installations.
SPECIFICATIONS
SPECIFICATIONS
Product Specifications
| Input Data (PV) | |
|---|---|
| Max Supported PV Power | 32,400 W |
| Max Usable PV Power | 28,800 W |
| Max AC Coupled Input | 19,200 W |
| Rated MPPT Operating Voltage | 150 – 425 V |
| Startup Voltage | 125 V |
| Max DC Input Voltage | 500 V |
| Max Input Current per MPPT | 36 A |
| Max Short Circuit Current | 54 A |
| MPPT / Inputs | 3 / 2 |
| Output Data (AC) | |
| Continuous Output Power | 18,000 W |
| Surge Power (10s) | 36,000 W |
| Grid Voltage / Frequency | 120/240V, 208V / 55–65 Hz |
| Max Output Current | 75 A |
| Max Grid Passthrough Current | 200 A |
| Max Efficiency | 97.6% |
| Stackable | Yes (Max 12 Units) |
| Battery Input Data | |
| Nominal Battery Voltage | 48 V |
| Battery Voltage Range | 40 – 60 V |
| Battery Capacity | 50 – 9900 Ah |
| Charge / Discharge Current | 350 A |
| BMS Communication | CANBus & RS485 MODBUS |
| General Specifications | |
| Dimensions (H × W × D) | 863 × 464 × 282 mm |
| Weight | 62.4 kg (137 lb) |
| Enclosure Rating | IP65 / NEMA 3R |
| Operating Temperature | -40°C to +60°C |
| Operating Altitude | Up to 3000 m |
| Noise Level | < 50 dB |
| Warranty | 10 Years |
