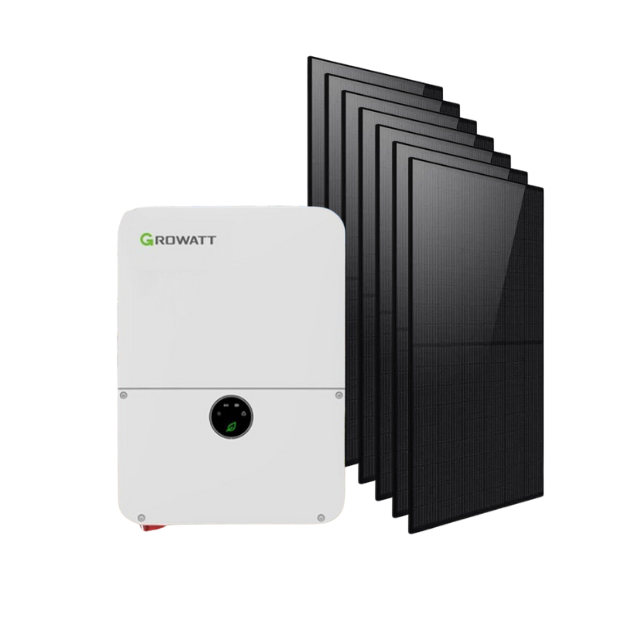

Complete 6kW Grid-Tie Solar Kit with 7.04kW Bifacial Panels
Pickup available at USA Fulfillment Center
Usually ready in 24 hours
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Speak To a Solar Specialist
Complete 6kW Grid-Tie Solar Kit with 7.04kW Bifacial Panels
solar industry experience
10,000+ American
customers
days return policy
Warranty
With backup power and dark start operations

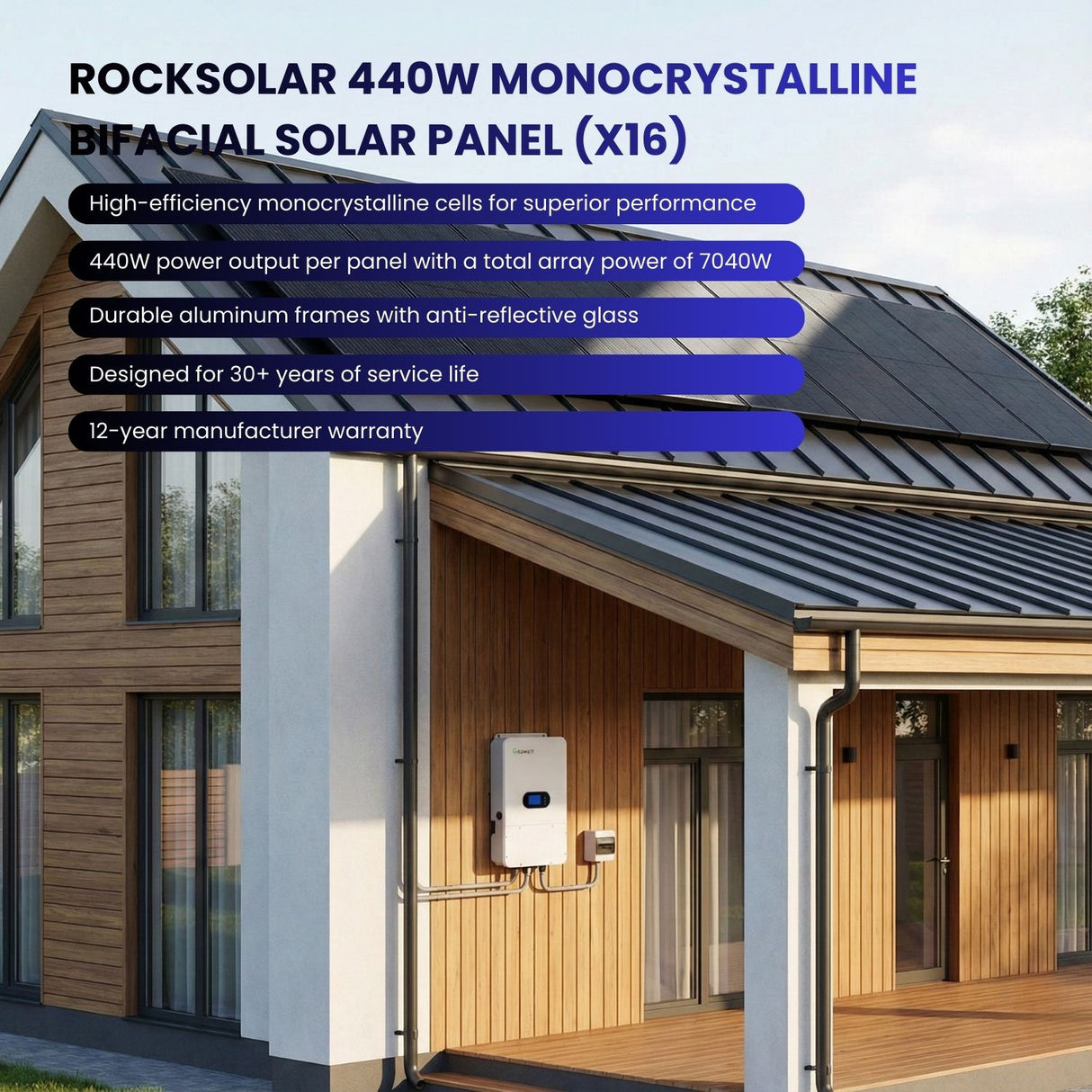

Higg Efficiency Bifacial Solar Panel
Description
Description

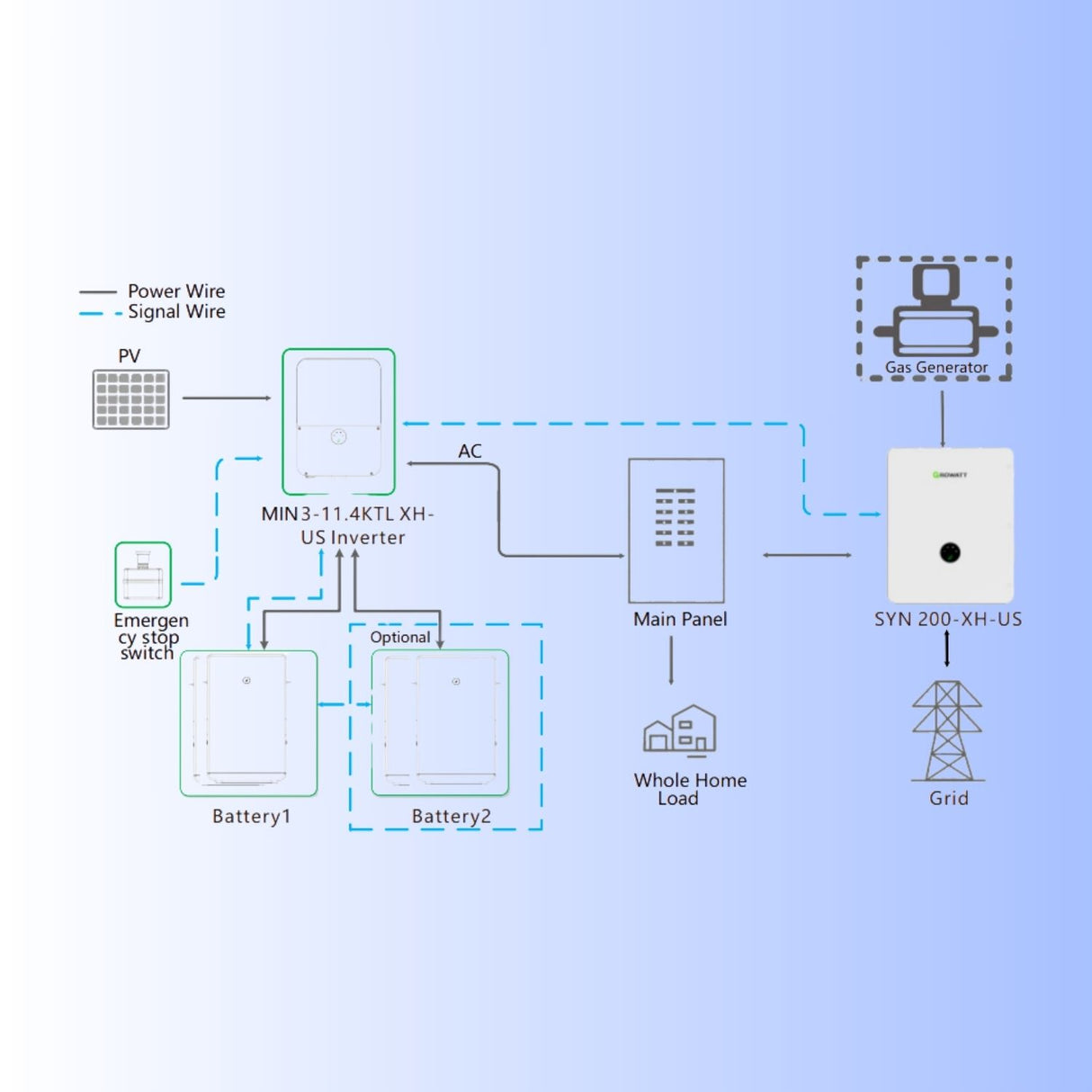

Power your home with the ROCKSOLAR Complete 6kW Grid-Tie Solar Kit, featuring a Growatt MIN 6000TL-XH-US inverter, 16 × 440W bifacial solar panels, 16 x Tigo TS4-A-F rapid shutdown devices, and 2 sets of 40 ft 10 AWG PV cable.
With 7.04kW of total solar panel capacity, this residential grid-tie solar system is designed for efficient energy production, rooftop safety, and future battery-storage expansion.
What's Included
- 1 × Growatt MIN 6000TL-XH-US 6kW Grid-Tie Inverter
- 16 × 440W Bifacial Solar Panels
- 16 × Tigo TS4-A-F Rapid Shutdown Devices
- 2 Sets × 40 ft 10 AWG PV Cable
- Wi-Fi monitoring capability
- Compatible solar connectors
Key Features
- 7.04kW Bifacial Solar Array – 16 high-efficiency 440W panels
- 6kW Growatt Inverter – Up to 98.4% efficiency with 3 MPPT trackers
- Tigo Rapid Shutdown Included – One device per panel for enhanced rooftop safety
- PV Cable Included – Two 40 ft sets of 10 AWG solar cable
- Battery Ready – Supports compatible future energy-storage upgrades
- Indoor/Outdoor Installation – Durable inverter design for residential solar applications
- Smart Monitoring – Track system performance through compatible Wi-Fi monitoring
Growatt Inverter Specifications
- Rated AC Output: 6,000W
- Maximum DC Voltage: 600V
- MPPT Range: 50–550V
- MPPT Trackers: 3
- Maximum Efficiency: 98.4%
- AC Voltage: 208/240V
- Warranty: 10 Years
Ideal for Residential Grid-Tie Solar
This complete 6kW grid-tie solar kit is ideal for homeowners looking to reduce electricity costs, generate clean solar energy, and install a reliable system with rapid shutdown and PV wiring already included.
Professional installation is recommended. Racking, AC protection, permits, utility interconnection, and final electrical requirements may vary by installation.
SPECIFICATIONS
SPECIFICATIONS
| Inverter Specification | |
|---|---|
| Manufacturer | Growatt |
| Type | Grid-Tied/ Battery Storage |
| AC Power | 6.0kW |
| Max PV Input Power | 12 kW |
| MPP Trackers | 3 |
| MPPT Voltage Range | 50~550V |
| Max Efficiency | 98.4% |
| Compatible Battery | Growatt ARO/APX HV Battery, LG Prime(Gen3) Battery |
| Warranty | 10 years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
| PV INPUT - Max Input Voltage | 600V |
| PV INPUT - Full load Voltage Range | 210~500V |
| PV INPUT - Max Input Current per MPPT | 13.5A |
| PV INPUT - Max Short-circuit Current per MPPT | 16.9A |
| Battery Connection - Battery Voltage Range | 360~550V |
| Battery Connection - Rated Battery Voltage | 400V |
| Battery Connection - I/O DC Current | 14.3A |
| Battery Connection - I/O DC Power | 5.0kW |
| AC OUTPUT (GRID) - Nominal Power | 6.0kW |
| AC OUTPUT (GRID) - Max Output Current | 25A |
| AC OUTPUT (GRID) - Nominal AC Voltage | 208/240V |
| GENERAL DATA - Dimensions(W*H*D) | 15.75*22.4*6.98 inch (400*569*170.5mm) |
| GENERAL DATA - Weight | 32.3lbs (14.65kg) |
| Installation | Indoor, Outdoor, Wall-mounted |
| Monitoring Module | WiFi+ LAN, 4G(Optional) |
| Solar Panel Specification | |
|---|---|
| Panel Type | Monocrystalline Bifacial |
| Power Output | 440W |
| System Voltage | 32V |
| Cell Efficiency | 20-22% |
| Frame Material | Aluminum |
| Dimensions | 1722mm x 1134mmX30mm |
| Weight | approx. 25-30 lbs |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
