ROCKSOLAR 2000W 24V Pure Sine Wave Power Inverter
solar industry experience
10,000+ American
customers
return policy
Warranty
What it is, and what it is for

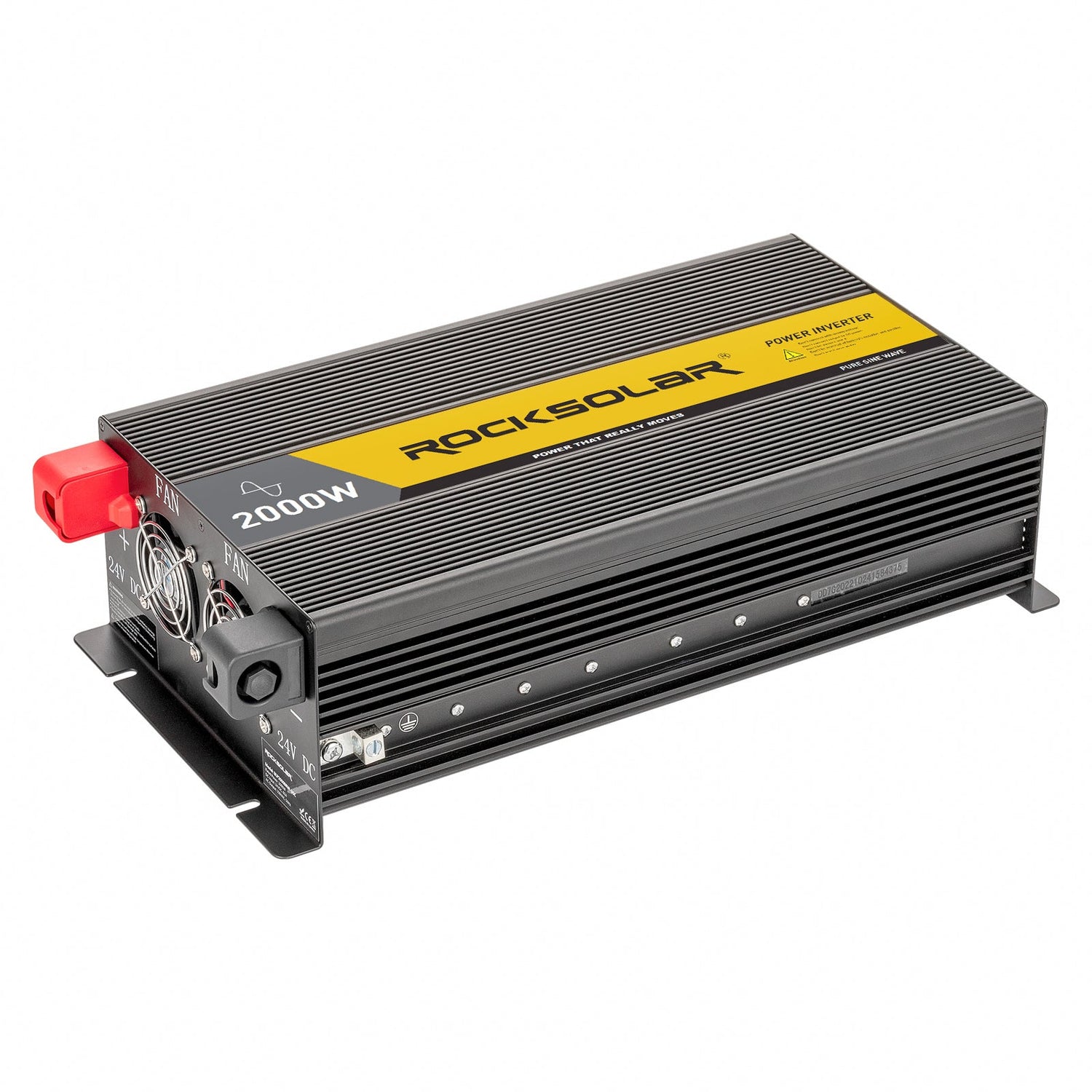

ROCKSOLAR 2,000 W 24 V Pure Sine Wave Inverter
A 2,000 W inverter for a 24 V battery bank: the size for an RV, boat or cabin running a microwave, coffee maker, power tools or a small air conditioner from a LiFePO4 bank. At full load it draws about 96 A from the battery, which is why 24 V is the better choice over 12 V at this power: half the current, thinner cable, less loss.

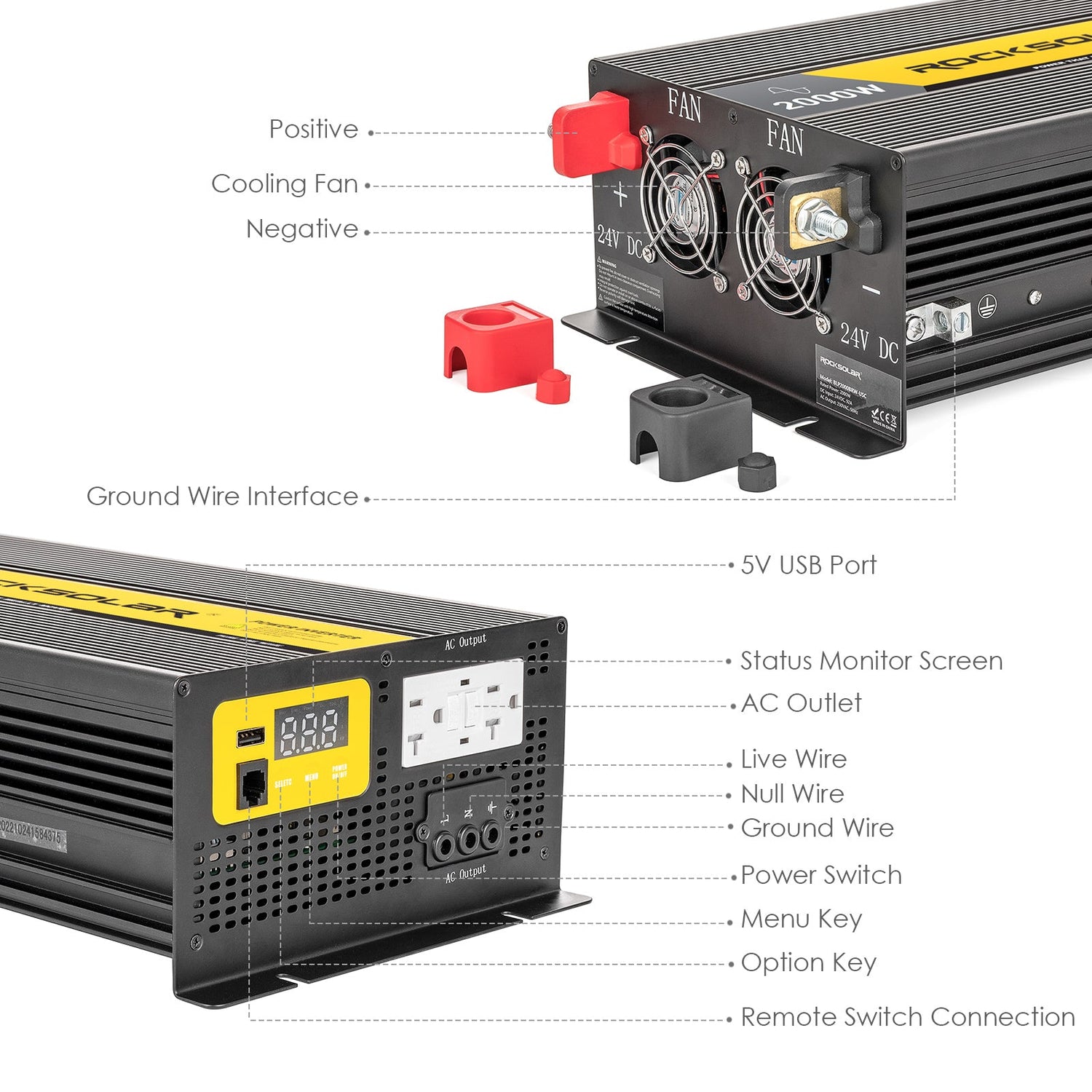

Pure sine wave output at 120 V, 60 Hz with under 5 percent distortion, which is the same quality as utility power, so microwaves, variable-speed tools, CPAP machines, TVs and laptop chargers run without buzzing or overheating. A digital display on the front shows battery voltage, output and load, and an error code if it trips. Two 120 V outlets and a 2.1 A USB port on the front; the AC output voltage and frequency can be set from the menu.

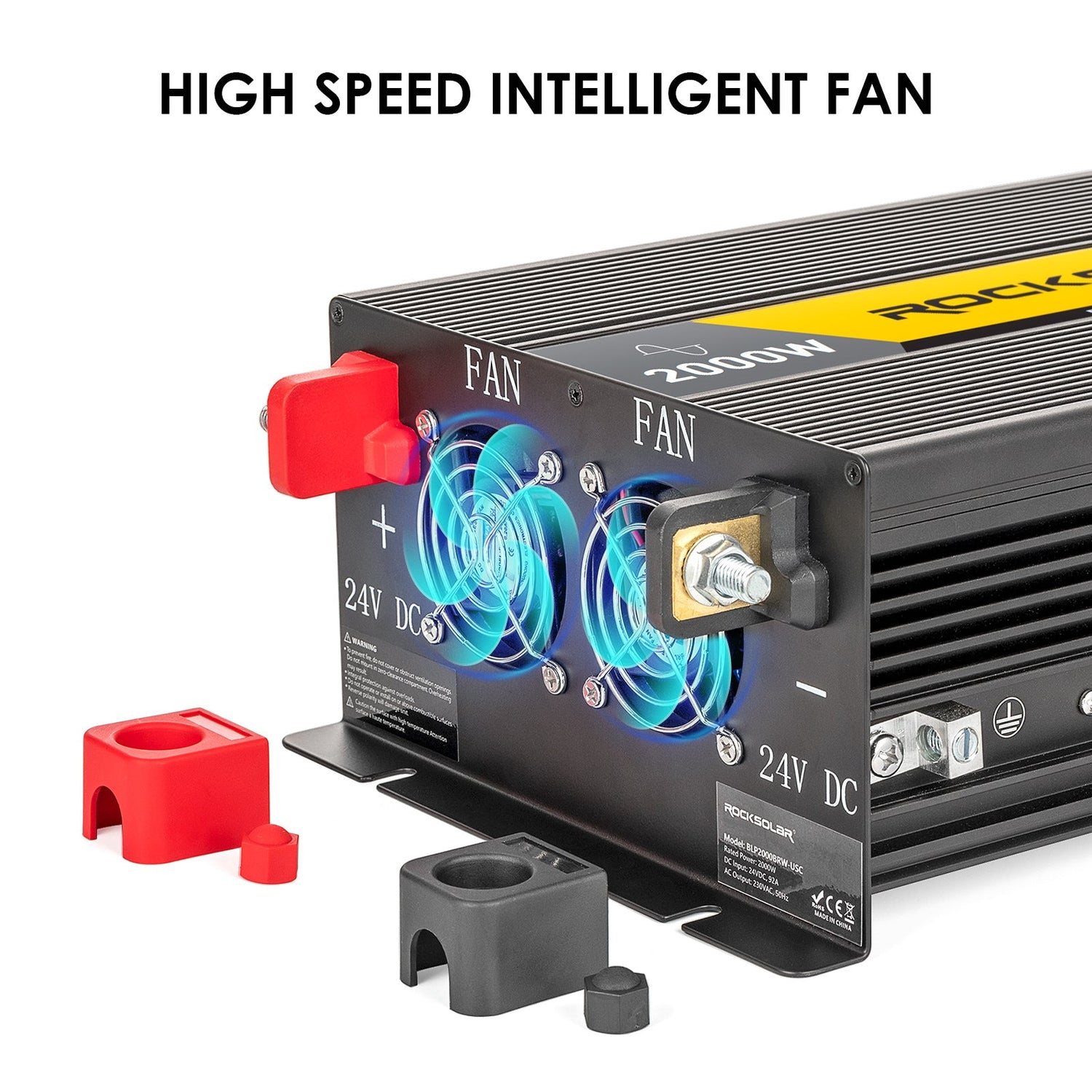

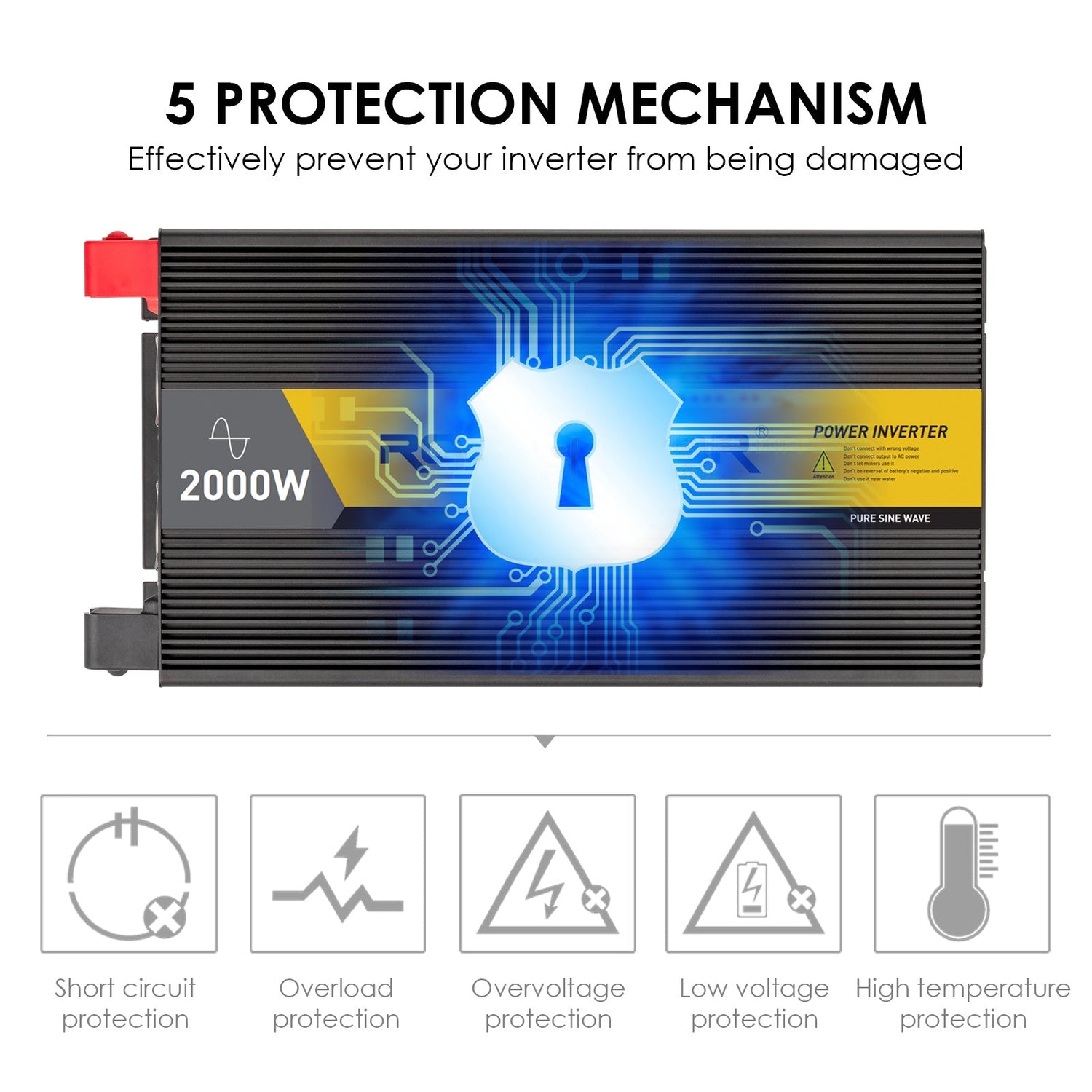

Protection: low-battery alarm and shutdown (adjustable), high-battery shutdown, overload, output short circuit and over-temperature, with a thermostat-controlled fan. Continuous rating 2,000 W, 4,000 W surge for motor starts; the datasheet rates it at 1,500 W continuous for inductive loads such as a pump or compressor.
Ships with the inverter and the manual. Add battery cable sized for 100 A over the run, a 150 A fuse or breaker on the positive lead, and keep the cable run under 6 ft. A wired remote panel is available for mounting the switch and display in the living space. For a 12 V bank see the 2,000 W 12 V model. 1-year warranty. Wiring is for reference; a licensed electrician should make the connections on a permanent installation.
Every number, by component.
The figures the manufacturer publishes. The datasheet above is the reference if the two ever differ.
| Continuous output | 2,000 W (1,500 W inductive loads) |
|---|---|
| Surge output | 4,000 W |
| AC output | 120 V AC, 60 Hz (100/110/120 V and 50/60 Hz selectable) |
| Waveform | Pure sine wave, THD ≤5% |
| Battery voltage | 24 V DC, 18–32 V range |
| Battery types | LiFePO4 and lead-acid, 24 V |
| DC current at full load | 95.8 A |
| No-load draw | 0.6 A; 1 mA switched off |
| Peak efficiency | 91% |
| Outlets | 2 × 120 V AC, 1 × USB 5 V 2.1 A |
| Low-voltage alarm / shutdown | Adjustable 19–25 V alarm, 18–24 V shutdown |
| High-voltage shutdown | 32 V |
| Protection | Overload, short circuit, over-temperature, reverse polarity (150 A fuse) |
| Cooling | Thermostat-controlled fan |
| Operating temperature | -20 °C to 40 °C |

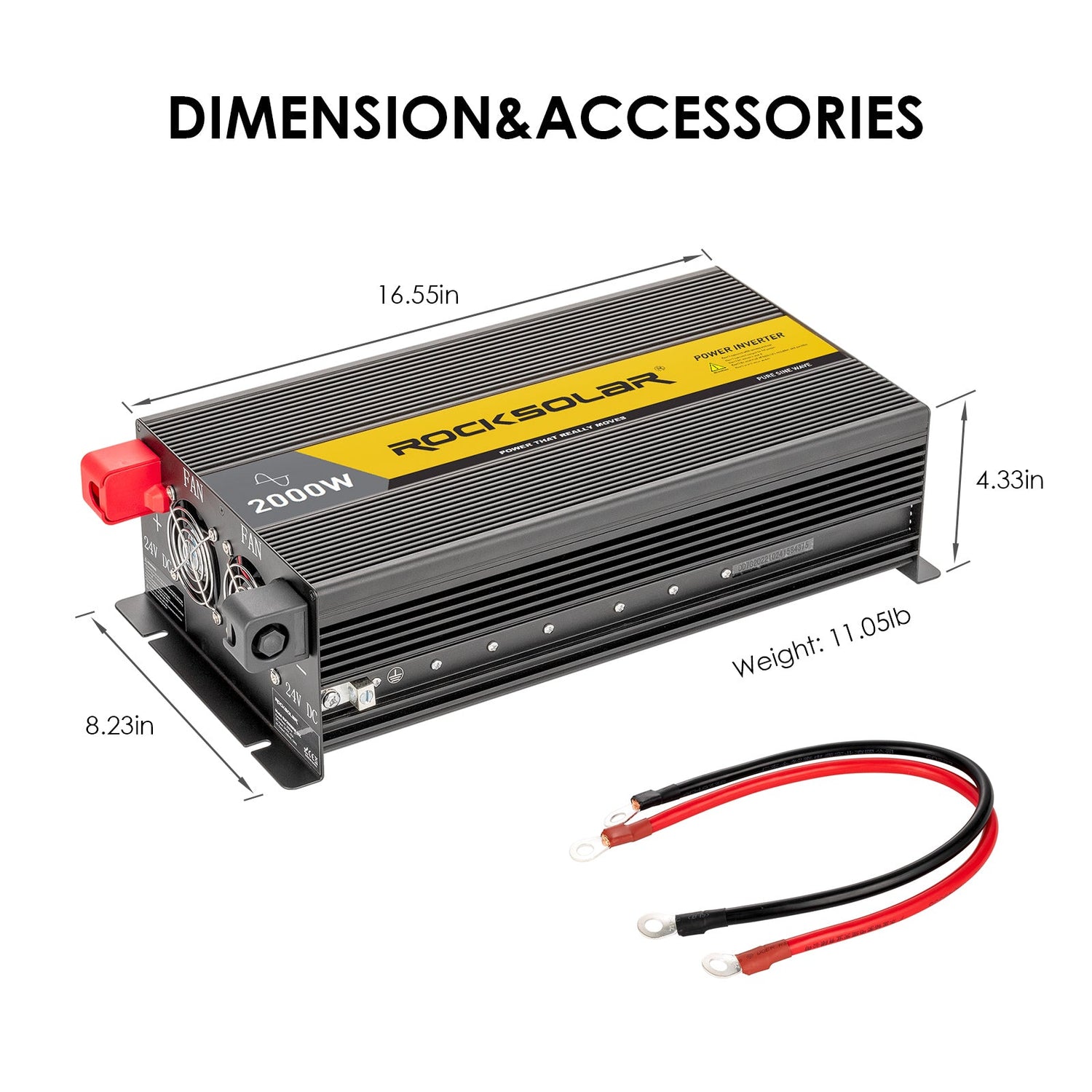

| Size / weight | 420 × 209 × 110 mm; 5.0 kg (11 lb) |
| Warranty | 1 year |
Before you order.
If yours isn't here, ask an engineer. It costs nothing and it's the step most people skip.
What if I'm not sure this is the right product?
Ask before you order. Send us what you need to run, or your pool or well figures, and an engineer will confirm the choice — it costs nothing. Or use the finder below, which sizes from what you actually run and shows its reasoning.
