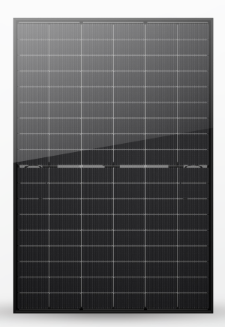

Matesolar 430W N-Type Bifacial TOPCon all black Solar Panel ($0.38/W)
$163.40
$229.99
Unit price /
Unavailable
Shipping calculated at checkout.
Solar Panel Product Specification
Electrical Characteristics (STC)
| Module Type | MS-54H |
|---|---|
| Maximum Power (Pmax/W) | 430 |
| Open Circuit Voltage (Voc/V) | 38.95 |
| Short Circuit Current (Isc/A) | 13.73 |
| Voltage at Maximum Power (Vmpp/V) | 32.38 |
| Current at Maximum Power (Impp/A) | 13.28 |
| Module Efficiency (%) | 22.02% |
Mechanical Parameters
| Solar Cells | N-type Mono |
|---|---|
| No. of Cells | 108 (6×18) |
| Dimensions | 1722 × 1134 × 30 mm |
| Weight | 21.5 kg |
| Glass | Front: 2.0 mm coated semi-tempered glass Back: 2.0 mm semi-tempered glass |
| Frame | Black anodized aluminum alloy |
| Junction Box | IP68 rated (3 bypass diodes) |
| Output Cables | 4mm², 300 mm (+) / 300 mm (–), customizable length |
| Connectors | MC4 compatible |
| Mechanical Load Test | 5400 Pa |
| Packaging | 36 pcs/box, 72 pcs/20GP, 936 pcs/40HQ |
Operating Characteristics
- Operating Temperature: −40°C to +85°C
- Maximum System Voltage: 1500 V DC
- Maximum Series Fuse Rating: 30 A
- Power Tolerance: 0~+5W
Temperature Characteristics
- Nominal Operating Cell Temperature (NOCT): 45 ± 2°C
- Temp. Coefficient of Pmax: −0.29%/°C
- Temp. Coefficient of Voc: −0.24%/°C
- Temp. Coefficient of Isc: +0.045%/°C
Matesolar 430W N-Type Bifacial TOPCon all black Solar Panel ($0.38/W) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Matesolar 430W N-Type Bifacial TOPCon all black Solar Panel ($0.38/W)
$163.40
$229.99
Unit price /
Unavailable
All Black Bifacial
Better Weak Illumination Response
Description
Description
- 430W output
- 22.02% efficiency
- 1722×1134×30 mm
- 23.5 kg weight
- 2.0 mm dual glass
- MC4 compatible
- 5400 Pa load
- 1500V DC system
- 25 year warranty for material and processing
SPECIFICATIONS
SPECIFICATIONS
430W N type Topcon Bifacial all black solar panel
