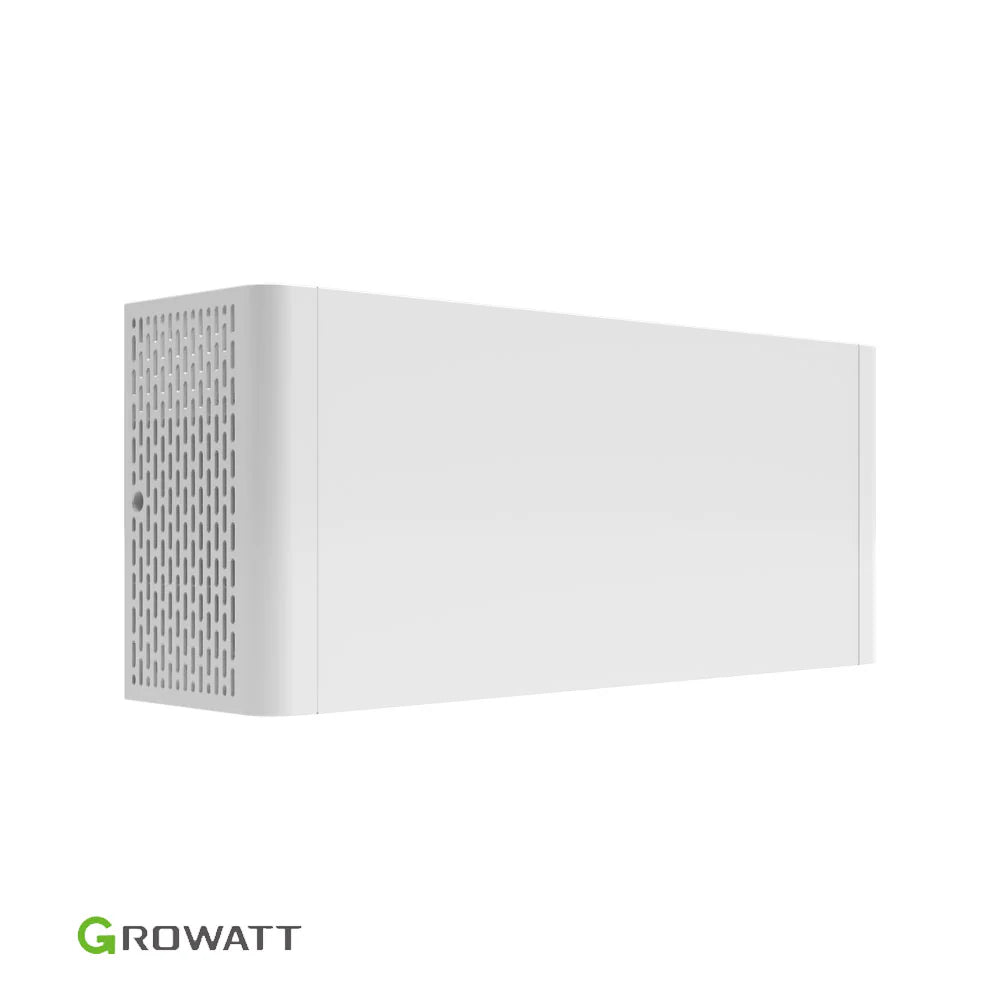

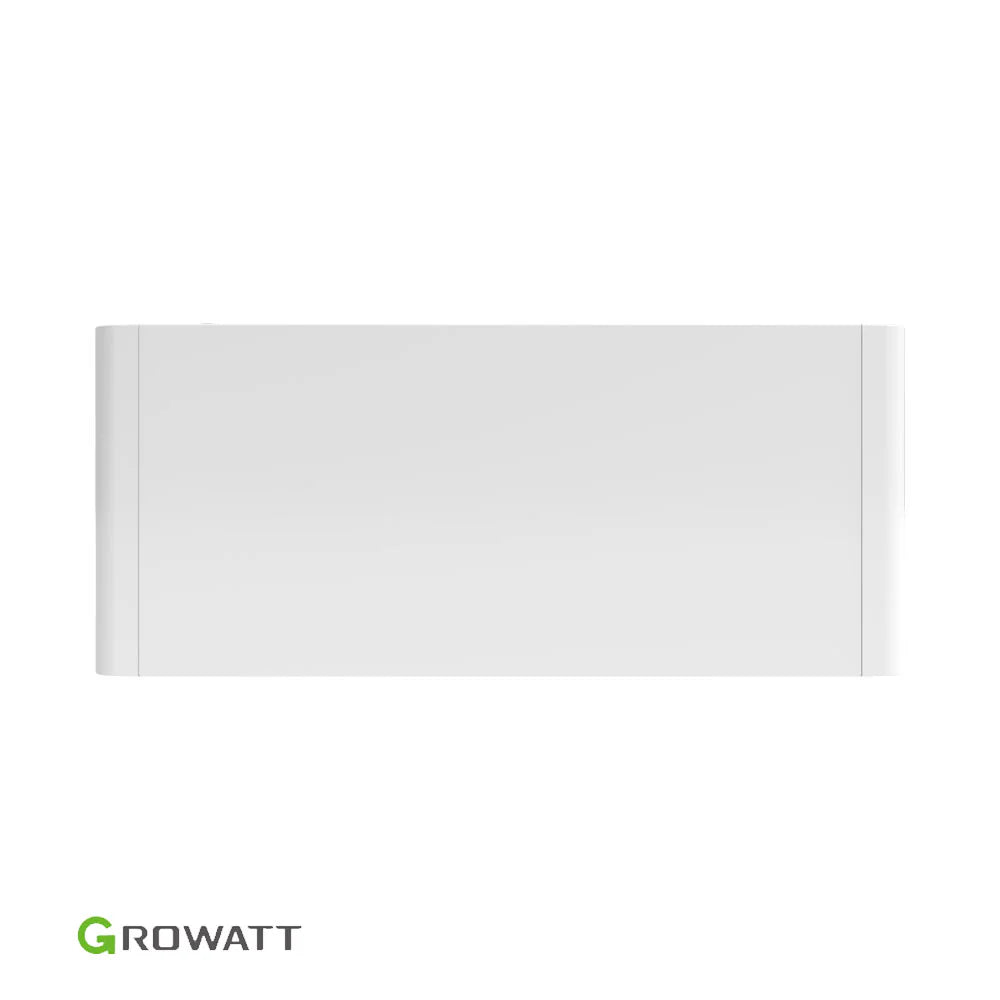

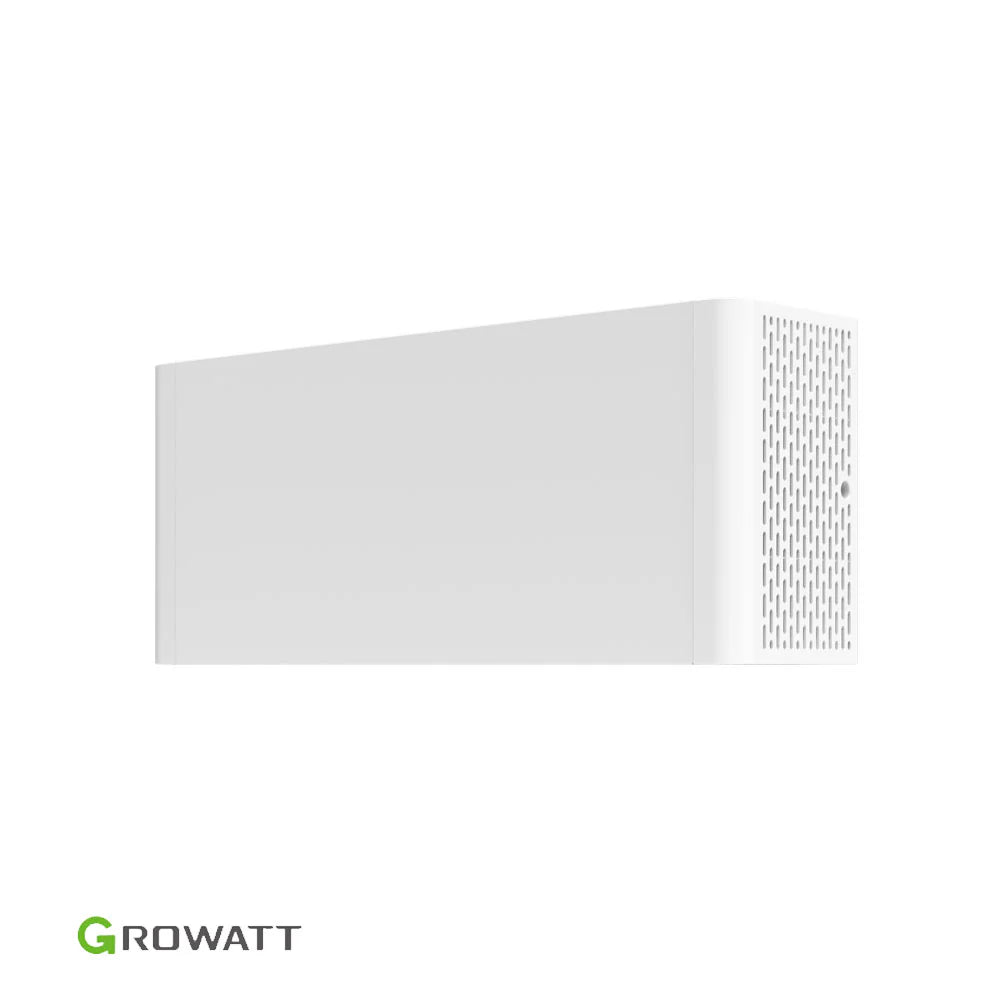

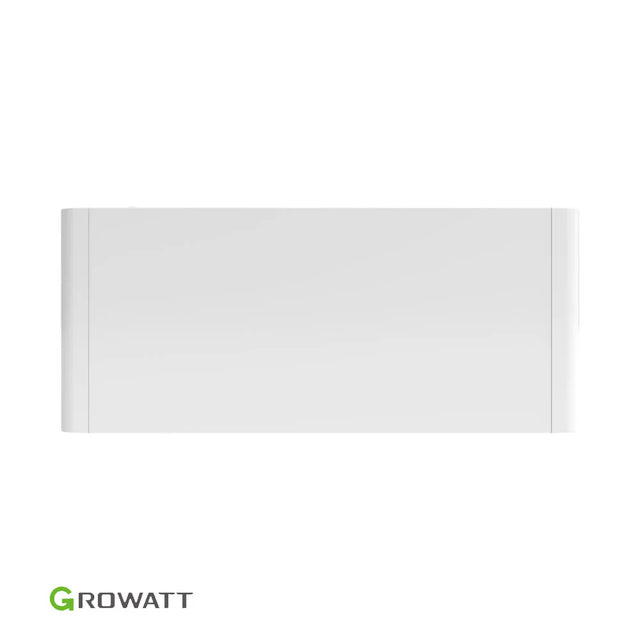

Growatt APX 5.0P-B1-US 5.0kWh Battery Module

$3,399.99

Shipping calculated at checkout.

5kWh Capacity: Compact, efficient energy storage.
LFP Safety: Cobalt-free, environmentally friendly.
Flexible Install: Wall or floor options for any space.
IP66 Rated: Ready for all weather conditions.
Smart BMS: Optimal performance, extended life.
Efficient Cooling: Maintains peak operation.
High Voltage: Superior power efficiency.
10-Year Warranty: Guaranteed support and reliability.

Free Shipping

Orders Over $100? Shipping's On Us!

Hassle Free Warranty

Effortless Warranty for Your Ease.

Lifetime Customer Support

Endless Support, Because You Matter.

Description

Growatt APX 5.0P-B1-US 5.0kWh Battery Module: A Revolution in Energy Storage

The Growatt APX 5.0P-B1-US stands at the forefront of battery storage technology, embodying advanced features and unparalleled efficiency. This high-voltage battery system, specifically designed for residential energy storage, supports both grid-tie and off-grid applications, seamlessly integrating with Growatt's Auto Transfer Switch (ATS) for a comprehensive energy solution.

Optimized Energy Capacity: Offers a nominal energy storage capacity of 5kWh with a usable energy rating of 4.5kWh, ensuring reliable power backup and enhanced solar utilization.
High Voltage Operation: Operating at a nominal voltage of 385V, this battery module supports an extensive operating voltage range from 330V to 450V, catering to diverse energy demands.
Advanced Battery Chemistry: Utilizing Cobalt Free Lithium Iron Phosphate (LFP) technology, the APX 5.0P-B1-US ensures safety, stability, and a longer lifecycle.
Robust and Durable Design: With an IP66 rating, the module is engineered to withstand challenging environmental conditions, offering reliability and longevity.
Intelligent Management System: Embedded with a state-of-the-art Battery Management Unit (BMU), it guarantees optimal performance through precise monitoring and balancing.
Flexible Installation Options: Designed for both wall-mounted and floor-mounted setups, it offers versatility to suit any installation requirement.
Seamless System Integration: Features easy integration with Growatt's hybrid inverters via RS485 communication, facilitating smooth operation and monitoring.
Comprehensive Protection: Equipped with multiple safety mechanisms, including overvoltage, undervoltage, overcurrent, and temperature protections, ensuring utmost security.

Backed by a decade of warranty and compliance with major international standards, the Growatt APX 5.0P-B1-US 5.0kWh Battery Module represents a significant leap forward in renewable energy storage, offering efficiency, safety, and peace of mind.

SPECIFICATIONS

Specification	Details
Module	APX 5.0P-B1
Nominal Capacity/Energy	100Ah/5kWh
Rated Usable Capacity/Energy	100Ah/4.5kWh
Rated Voltage	385V
Operating Voltage	330-450V
Rated Current (25℃)	7.6A
Maximum Current (25℃)	12.5A
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Operating Temperature Range	-10~50℃
Storage Conditions	-20℃~50℃/7 days; -20℃~40℃/6 months; 5%-95%RH
Cooling	Natural cooling
Dimensions (W/D/H)	690/185/295mm±2mm
Weight	50±1kg
Model (Power Module)	APX 55027-P0
B+/B- Voltage Range	330V-450V
BAT+/BAT- Voltage Range	380-550V
Temperature Range	-10~50℃
IP Rating	IP66
Warranty	10 years
Communication Method	CAN2.0
Certification & Licensing	IEC62040/IEC62619/IEC62477/CE/UKCA/UN38.3
Environment Requirements	RoHS
