Rocksolar 4.0 HP Solar Submersible Pump
Rocksolar 4.0 HP Solar Submersible Pump - Model A(4SPW1-26P): 16.9GPM/1050ft/464PSI 4" pump with 2" outlet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.

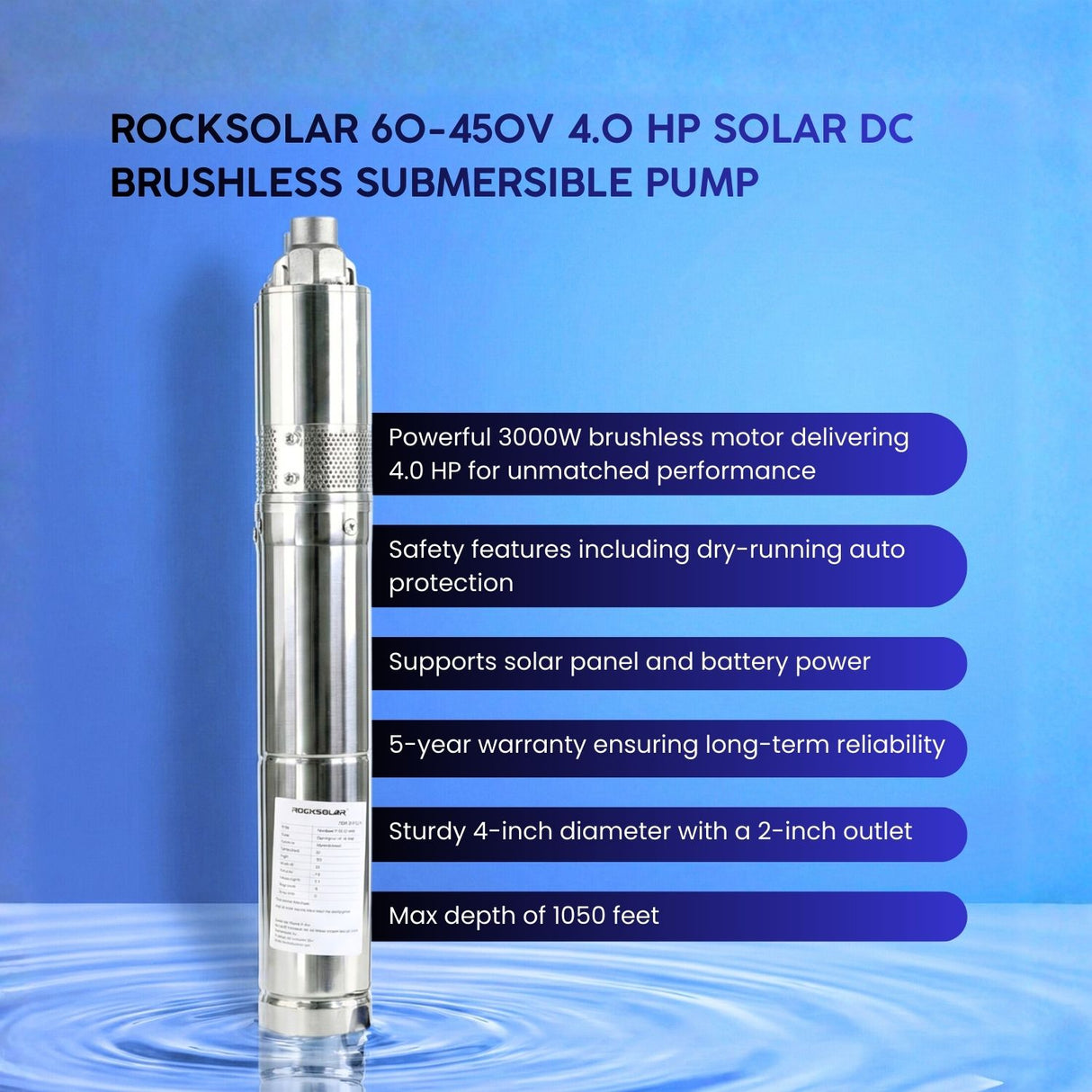

Rocksolar 4.0 HP Solar Submersible Pump
High Efficiency DC Brushless Motor
Made of Stainless Steel
Description
Description
Experience Superior Water Management with the Rocksolar 4.0HP Pump
Engineered for high efficiency, this pump is compatible with solar power systems, ensuring optimal performance across a range of applications from expansive agricultural irrigation to large-scale industrial water management. With a robust 4.0HP motor and a voltage range of 60-450V, it combines significant power with energy efficiency.
Technical Specifications
- Solar Panel Compatibility: Suitable for a setup of ten 440W solar panels, allowing for robust energy collection and flexibility in solar configurations.
- DC Brushless Motor: Water cooled, permanent magnetic DC Bruchless Motor.

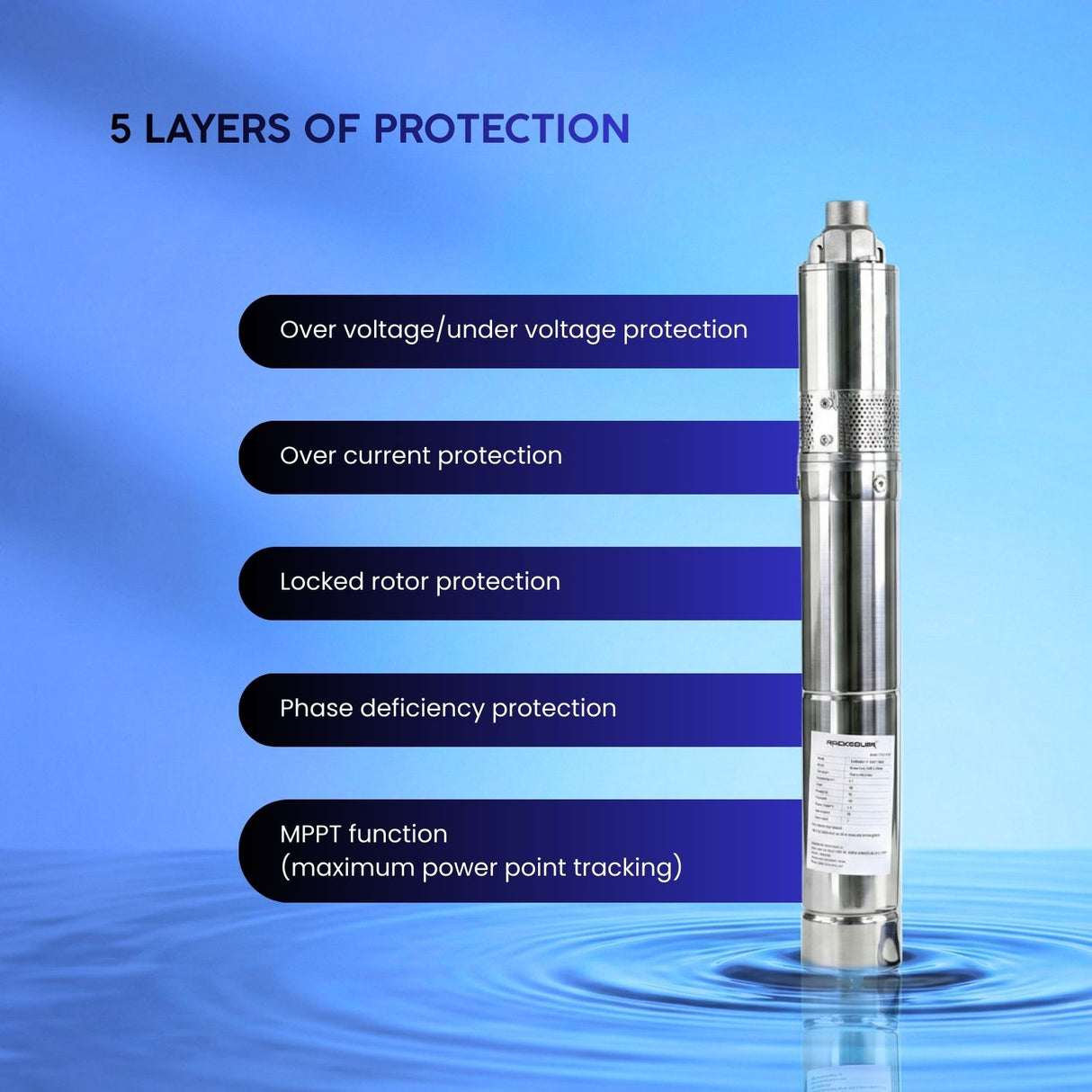

- Safety: Dry-running auto protection.
- Power: Can be powered directly by solar panels or battery.
- Easy Installation and Maintenance Free
- Material: High-quality SS304 Stainless Steel.
- Dimensions: 4" diameter, 2" outlet.
- Warranty: 5 Year Manufacturer Warranty.

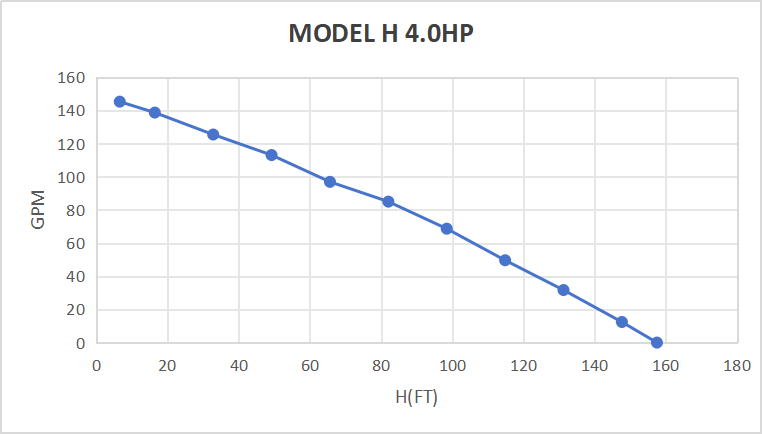

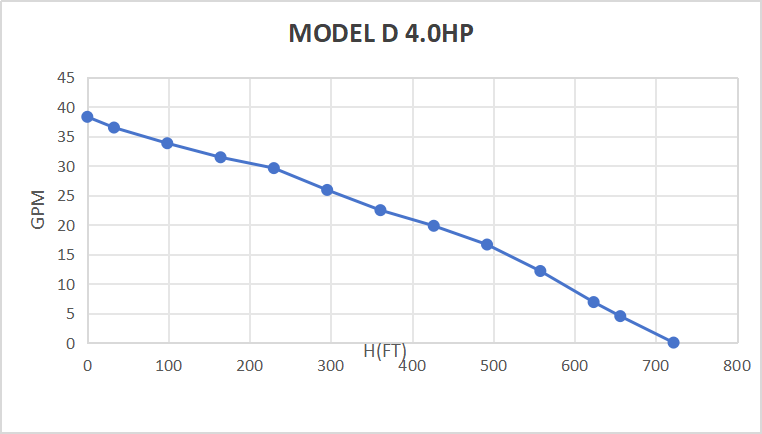

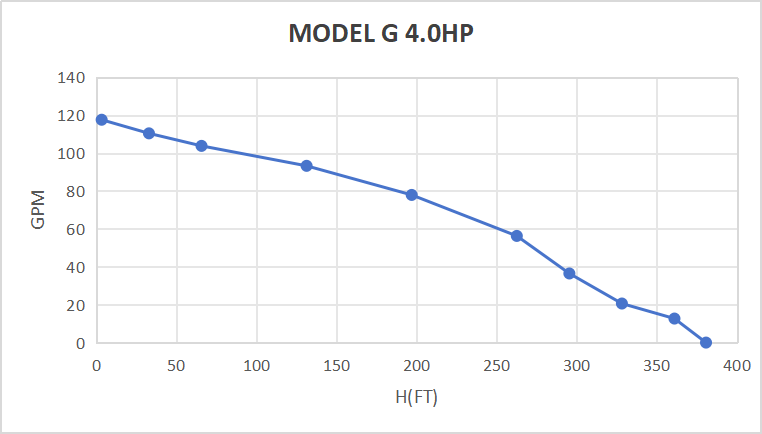

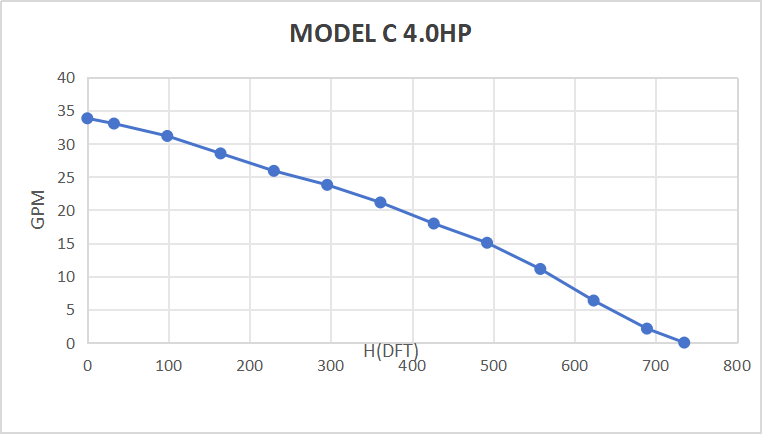

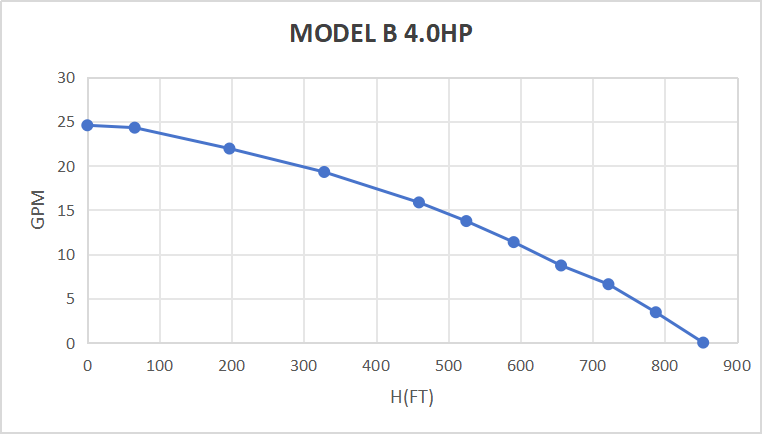

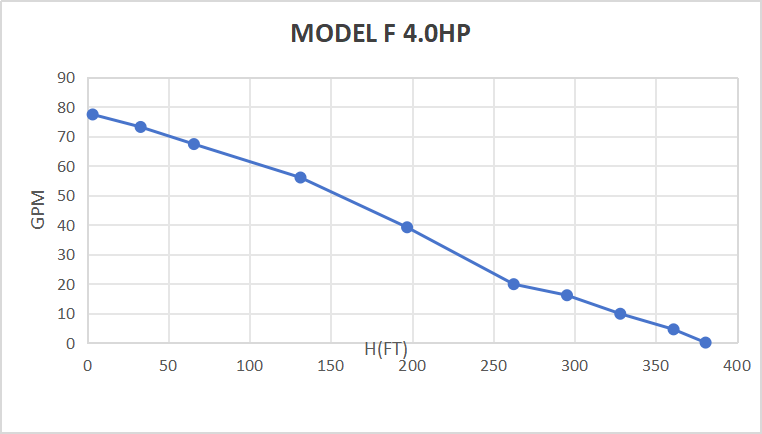

- 4 Models available : offer maximum flow rate from 16.9 GPM to 117 GPM and maximum head from 1050ft to 230ft.
The Rocksolar 4.0HP Pump not only offers significant operational flexibility but also stands out with its compatibility with both existing and new solar installations. Whether for daily operation or emergency use, this pump is your dependable choice for efficient and renewable water pumping solutions.
SPECIFICATIONS
SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | Rocksolar 3000W Brushless Solar Pump with In-Built Controller |
| Power and Motor | 3000W, 4.0 HP |
| Voltage Range | 60-450V, Best at 300-380V |
| Solar Panel Compatibility | Can be paired with ten 440W solar panels |
| Max Flow Rate | 16.90 GPM |
| Max Head | 1050 feet |
| Pump Diameter | 4 inches |
| Pump Outlet | 2 inches |

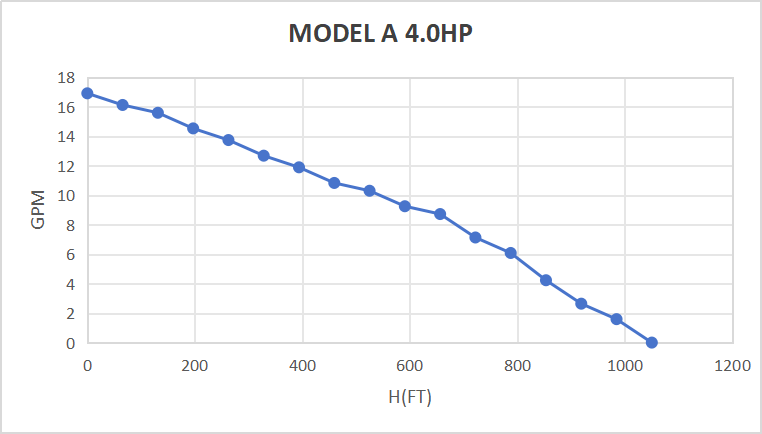

| GPM | 16.9, 16.1, 15.6, 14.5, 13.7, 12.7, 11.9, 10.8, 10.3, 9.2, 8.7, 7.1, 6.1, 4.2, 2.6, 1.6, 0 |
| Height (Ft) | 0, 65, 131, 197, 262, 328, 394, 459, 525, 590, 656, 721, 787, 853, 919, 984, 1050 |
