Rocksolar 2.41HP Solar-Powered Submersible Pump Kit
solar industry experience
10,000+ American
customers
days return policy
Warranty
High Efficiency DC Brushless Motor
High Efficiency Bifacial Solar Panels
Description
Description
ROCKSOLAR 2.41HP Solar-Powered Submersible Pump Kit

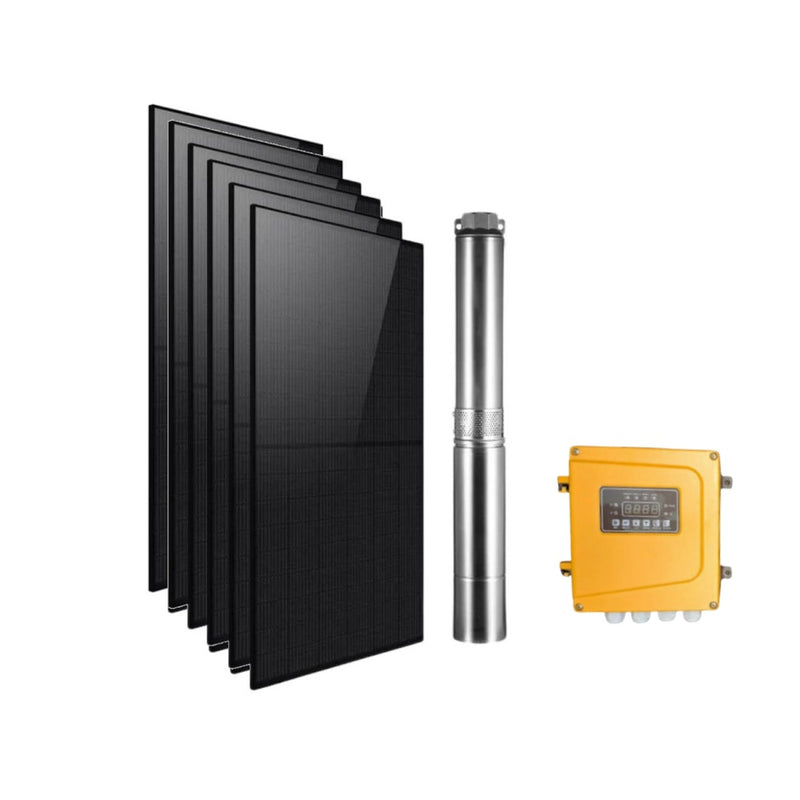

What's included:
- 1 × 2.41HP 60–450V DC brushless submersible pump + built-in controller
- 6 × 440W rigid monocrystalline bifacial solar panels (2,640W array)
- 2 × 10 ft 10 AWG PV cable
- 1 × 2-string waterproof DC disconnect box with 1000V 40A circuit breaker
- 6 × Z-bracket solar panel mounting sets (optional)
- Ground or roof mount rack (optional)
- User manuals + warranty card
Key specs — all models:
- Motor: 2.41HP DC brushless | Water-cooled | Permanent magnetic | Built-in controller
- Input: 60–450V DC | Solar: 6 × 440W bifacial panels included (2,640W)
- Material: SS304 stainless steel | Pump body: 4" | Outlet: 2" (all models)
- Works in cloudy conditions | Battery-addable for extended operation
Four kit models — choose by flow vs. depth priority:
| Model A (4SPN1-16P) | Model C (4SPN3-8P) | Model E (4SPN6-5P) | Model G (4SPN12-3P) | |
|---|---|---|---|---|
| Max flow | 16.12 GPM | 31.2 GPM | 60.32 GPM | 97.5 GPM |
| Max head | 574 ft | 410.76 ft | 247.76 ft | 153.22 ft |
| Max pressure | 248.48 PSI | 177.81 PSI | 107.25 PSI | 66.23 PSI |
| Pump body | 4" | 4" | 4" | 4" |
| Outlet | 2" | 2" | 2" | 2" |
Built for: Very deep commercial and agricultural wells, large-scale farm irrigation, large livestock operations, remote off-grid properties with extreme depth requirements, remote cabins with no grid access
Key features:
- 2,640W solar array included — six 440W bifacial panels, precisely matched to the pump's 2,640W+ requirement
- Model A reaches 574 ft — the deepest head in the entire ROCKSOLAR submersible lineup
- Model G delivers 97.5 GPM — the highest flow of any submersible pump in the lineup
- Works in cloudy conditions — customers confirm reliable performance even at reduced sunlight
- Built-in controller — no separate controller needed
- Battery-addable — extend operation beyond daylight hours
- Dry-run auto protection — shuts off if well level drops
- Float switch / pressure switch compatible — automates fill and shutoff
Warranty: 5 years
How the System Works
The ROCKSOLAR Solar Powered Water Pump System converts solar energy into a reliable water supply for livestock watering, irrigation, and remote agricultural applications.
The operating sequence is as follows:
- Solar panels convert sunlight into direct current (DC) electricity.
- The solar pump controller continuously monitors the available solar power and adjusts the voltage and current to maximize energy harvest from the solar array.
- The controller supplies optimized DC power to the brushless submersible pump, ensuring efficient operation under varying sunlight conditions.
- The pump draws water from the well, pond, cistern, or other approved water source and delivers it through the discharge pipeline.
- Depending on the application:
- Livestock Watering: Water is pumped into a storage tank or watering trough. When an optional float switch is installed, the controller automatically stops the pump once the tank reaches the preset water level and restarts pumping when the water level drops.
- Agricultural Irrigation: Water is supplied to irrigation systems such as drip irrigation, sprinkler systems, soaker hoses, or storage reservoirs for crop, orchard, greenhouse, vineyard, pasture, and garden irrigation. Flow can be controlled using irrigation valves, timers, or storage tanks based on the specific irrigation design.
- During periods of insufficient sunlight, such as early morning, late evening, or heavy cloud cover, the controller automatically reduces pump speed or stops the pump to protect the system and optimize energy use.
- When adequate sunlight returns, the controller automatically restarts the pump without requiring manual intervention.
This intelligent, fully automatic operation minimizes maintenance while providing a dependable and sustainable water supply for livestock, irrigation, and other off-grid agricultural applications.
SPECIFICATIONS
SPECIFICATIONS
Specification Details
| Specification | Details |
|---|---|

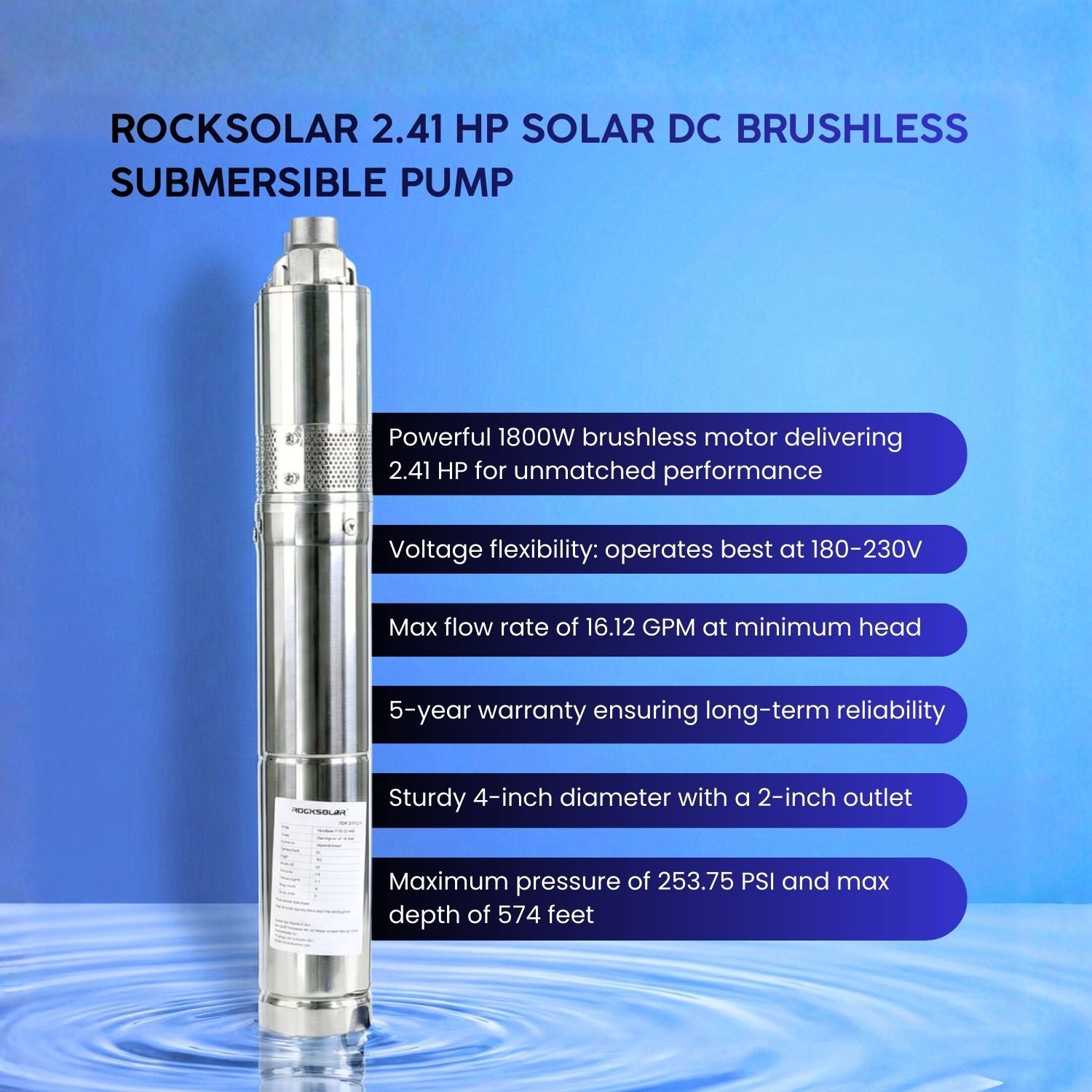

| Product | Rocksolar 1800W Brushless Solar Pump with In-Built Controller |
| Model | Brushless Motor, In-Built Controller |
| Power | 1800W |
| Voltage | 60-450V, Best at 180-230V |
| Solar Panel Requirement | 440W*6 PCS |
| Max Head | 574 feet |
| Max Flow Rate | 16.38GPM |
| Pump Diameter | 4 inches |
| Pump Outlet | 2 inches |
| GPM | 16.38, 14.53, 12.94, 11.36, 10.04, 8.19, 6.08, 3.70, 2.11, 0 |
| Height(F) | 0, 65, 131, 196, 262, 328, 393, 459, 525, 574 |
| Water Cooled Motor | Yes |
| Warranty | 5 Years |
| ROCKSOLAR Philadelphia 440W Rigid Monocrystalline Bifacial Solar Panel | Details |
|---|---|
| Panel Type | N-Type Topcon Mono-Crystalline |
| Power Output | 440W |
| Max Power Volt | 32.98V |
| Module Efficiency | Up to 22.57% |
| Frame Material | Aluminum |
| Dimensions | 1722mm x 1134mm x 30mm |
| Weight | Approx. 29 kg |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
| Warranty | 10 years |
