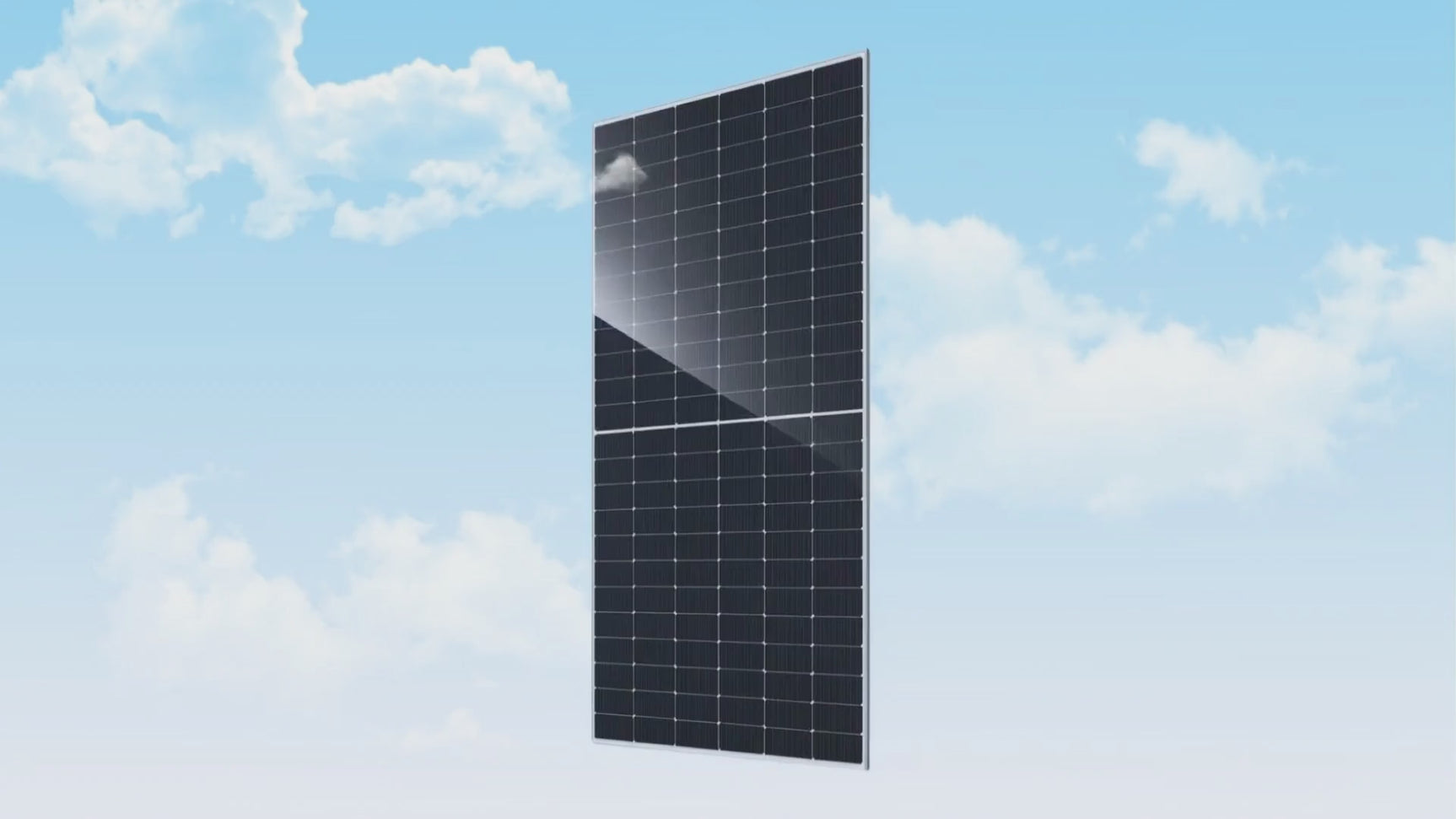

JA 595W n-type Bifacial Double Glass High Efficiency Mono Module (0.403$/W)

JAM72D40-595/LB/1500V — 595W High-Efficiency Monocrystalline Solar Module

JAM72D40-595/LB/1500V is a premium 595W monocrystalline bifacial solar module engineered for maximum energy yield, long-term reliability and reduced balance-of-system (BOS) costs. Designed for residential, commercial and utility-scale projects, this 1500V-compatible panel delivers high power density and excellent temperature performance.

Key Technical Highlights

  Rated Maximum Power (Pmax): 595 W

  Open-Circuit Voltage (Voc): 52.20 V

  Maximum Power Voltage (Vmp): 43.59 V

  Short-Circuit Current (Isc): 14.42 A

  Maximum Power Current (Imp): 13.65 A

  Module Efficiency: 22.5%

  System Voltage Rating: 1500 V DC

  Power Tolerance: 0 ~ +5 W (positive tolerance)

  STC Reference: irradiance 1000 W/m², cell temperature 25°C, AM1.5G

Temperature Coefficients (Performance Stability)

  Isc coefficient (α_Isc): +0.046% / °C

  Voc coefficient (β_Voc): −0.260% / °C

  Pmax coefficient (γ_Pmp): −0.300% / °C

Performance Advantages

  Ultra-high power: 595W rating reduces module count and BOS costs for large projects.

  High conversion efficiency: 22.5% efficiency yields more energy per square meter — ideal where space is limited.

  1500V system support: Longer string lengths, fewer combiner boxes, and lower cable costs for utility-scale arrays.

  Positive tolerance: Guaranteed ≥ rated power or better gives stronger first-year production.

  Robust thermal behavior: Conservative temperature coefficients minimize output loss in hot climates.

Typical Applications

  Residential rooftops where high power density is required

  Commercial and industrial rooftop systems

  Large ground-mounted and utility-scale solar farms

  Hybrid and off-grid systems paired with inverters and battery storage

Specification Table

Durability & Warranty

This module is built to industry standards for mechanical load, PID resistance and long-term performance. Typical warranties provided by manufacturers for this class of module include multi-year product and performance guarantees; please consult your supplier for the specific warranty terms applicable to your purchase.

Installation & Compatibility Notes

  Designed for 1500V systems — reduces BOS and cable costs on large arrays.

  Compatible with most modern string inverters and central inverters; check inverter MPPT range and Voc limits before design.

  Bifacial performance benefit depends on albedo (ground reflectance) — higher albedo surfaces (white gravel, concrete, snow) increase rear-side gain.

  Observe manufacturer guidance on stringing limits, temperature derating and mounting torque specifications during installation.

Why Choose JAM72D40-595?

For projects that demand maximum output per module and lower installed cost per watt, the JAM72D40-595/LB/1500V offers an excellent combination of high power, strong efficiency and system-level savings through 1500V compatibility. It is an ideal option where roof or land area is at a premium and where long-term, reliable energy yield matters.

Data above is based on Standard Test Conditions (STC). Actual site production will vary with irradiance, temperature, shading, system design and local conditions. Always verify final system design with an engineer and consult the module datasheet for full electrical/mechanical details.
