ROCKSOLAR 500W 12V Off-Grid Solar System

$599.99 ~~$1,299.99~~

Shipping calculated at checkout.

Complete Kit: Battery, panel, inverter, controller included.
Powerful Battery: 12V 50Ah LiFePO4 with BMS.
Efficient Panel: Two 50W Monocrystalline, 22% efficiency.
Pure Sine Inverter: 500W, steady power output.
MPPT Controller: 20A, maximizes battery life.
Rugged Design: Waterproof, corrosion-resistant panel.
Safe Operations: Full protection with BMS.
Versatile: Powers various devices; ideal for off-grid.
Long Warranty: 10 years on battery and panel.
Easy Install: Z-Bracket, MC4 connectors.
Expandable: Designed for future upgrades.
Temperature Tolerant: Battery -20°C to 60°C, Controller -20°C to 55°C.

Free Shipping

Orders Over $100? Shipping's On Us!

Hassle Free Warranty

Effortless Warranty for Your Ease.

Lifetime Customer Support

Endless Support, Because You Matter.

Inverter

500W Pure Sine Wave

Charge Controller

20A MPPT

Description

The ROCKSOLAR 500W 12V Off-Grid Solar System is a superior off-grid power solution perfect for cottage owners in Canada. Equipped with four key components - a 12V 50Ah Deep Cycle LiFePO4 Battery with BMS System, 2X50W Rigid Solar Panel, a 20A MPPT Solar Charge Controller, and a 500W Pure Sine Wave Inverter, it is designed to provide round-the-clock power for essential devices. This system is suitable for powering a mini fridge, LCD TV, DC brushless water pump, lighting, stereo, laptop, and phone chargers. Ideal for summer usage, it offers a dependable power source. The 12V 50Ah Deep Cycle LiFePO4 Battery and the 50W Rigid Solar Panel come with a 10-year warranty, while the other components have a 1-year warranty. The system is designed for easy upgrades, with free upgrade services and exchangeable key components to expand your energy independence confidently. Invest in the ROCKSOLAR 500W 12V Off-Grid Solar System and experience 24/7 power without interruptions, all backed by a reliable long-term warranty.

Product Features

ROCKSOLAR 12V 50Ah Deep Cycle LiFePO4 Battery with BMS System:

12V 50Ah capacity.
3500+ cycle life and 100% discharge rate for ultra-long service life.
Flat voltage curve for steady power output.
Deep Cycle LiFePO4 Battery Technology.
Patented Smart Battery Management System.
Lightweight at only 13 pounds for easy portability and installation.
BMS offers protection from temperature, short circuits, over-discharge, over current, and overcharge.
Operating temperature range of charging: 0C∽45C, discharging: -20~-60C.
11-year warranty and 10+ year service life.

ROCKSOLAR 50W 12V Rigid Monocrystalline Solar Panel - Waterproof with Corrosion-Resistant Aluminum Alloy Frame:

50W 12V output (each panel).
Rigid Monocrystalline Solar Panel.
Waterproof and Corrosion-Resistant Aluminum Alloy Frame.
High-Efficiency Solar Cell with 22% Conversion Efficiency.
Pre-drilled holes for easy mounting and securing to any surface.

ROCKSOLAR 20A MPPT Solar Charge Controller:

20A MPPT Solar Charge Controller.
Compatible with Lithium and Lead Acid batteries.
Maximum open voltage of 75Vdc and MPP tracking efficiency of 99.5%.
3-stage charge algorithm and 12/24V nominal system voltage.
Rated charging current of 20A and battery voltage range of 8-32V.
High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V.
Operating temperature range of -20°C to 55°C.
IP30 rated for protection.

ROCKSOLAR 500W Pure Sine Wave Power Inverter:

500W Pure Sine Wave Power Inverter.
DC 12V to 110V AC Conversion.
2.1A USB Charging Port.
Ideal for RVs, Camping, Off-grid power solutions, and more.

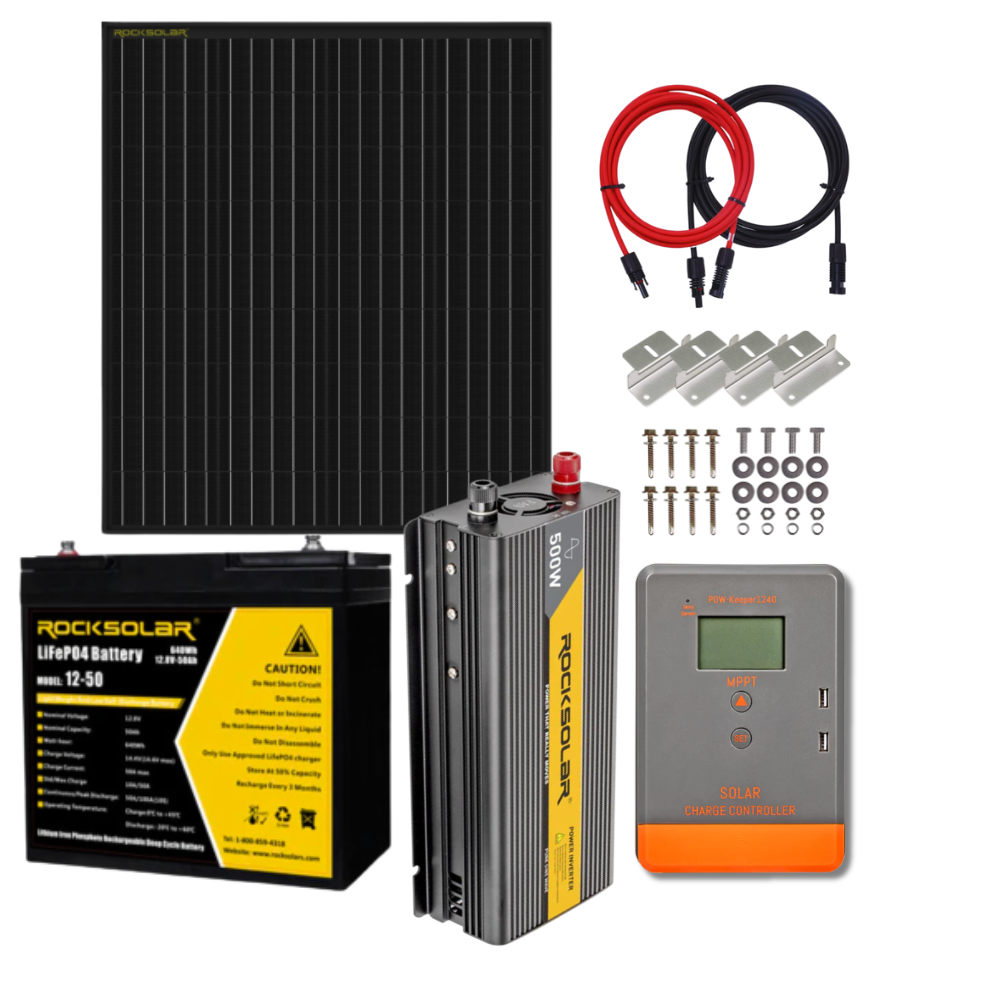

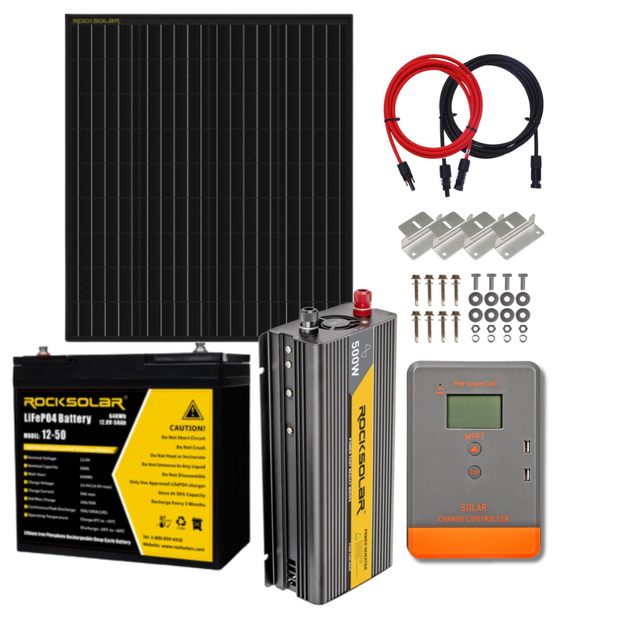

Included:

1 x 12V 50Ah Deep Cycle LiFePO4 Battery
2 x 50W 12V Rigid Monocrystalline Solar Panel
1 x 500W Pure Sine Wave Power Inverter
1 x 20A MPPT Solar Charge Controller
1 x Y Connector
1 x M8 Connector
1 x 10 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black
2 x Z-Bracket Mount System (Set of 4)
1 x User Manual

SPECIFICATIONS

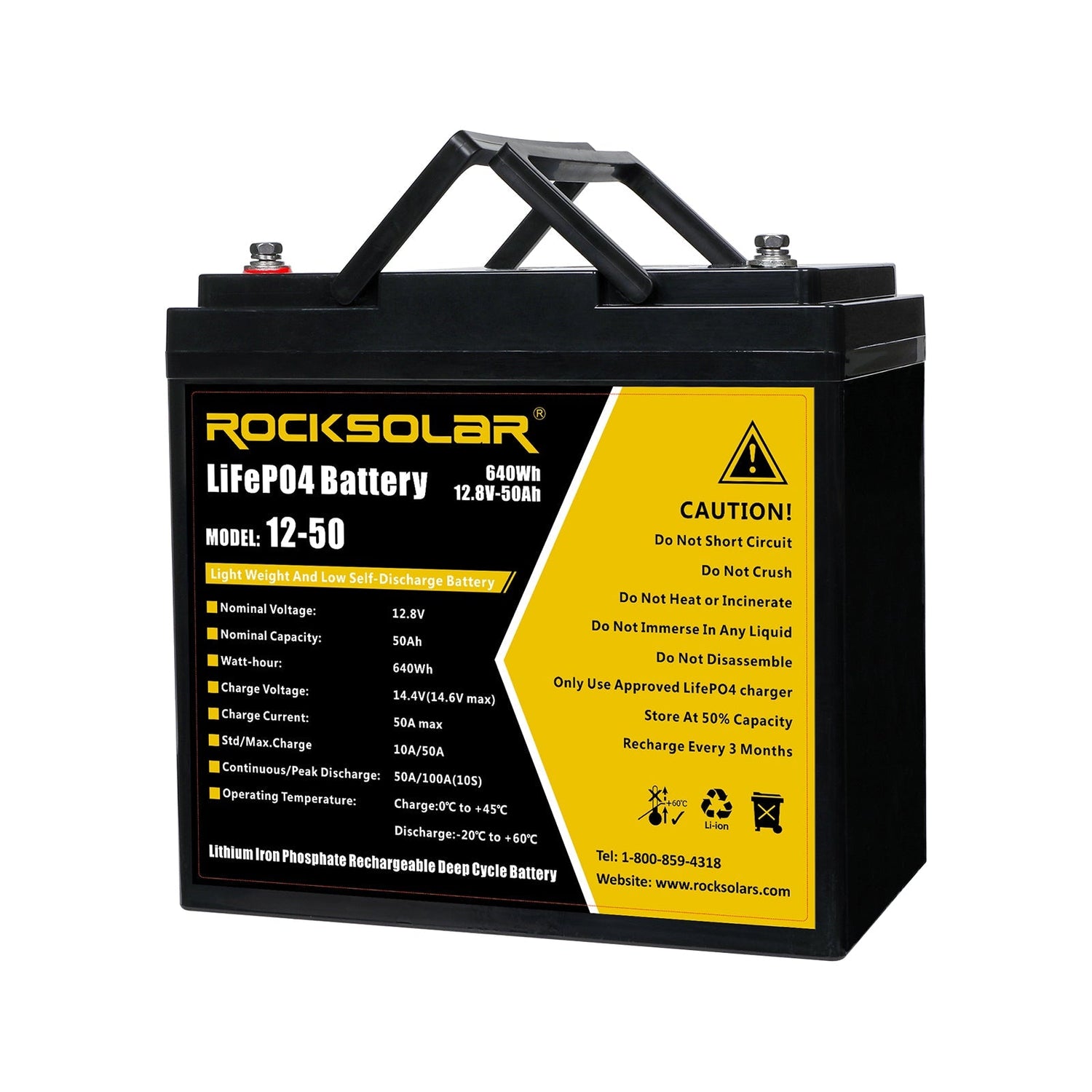

12V 50Ah Deep Cycle LiFePO4 Battery Details

Product Dimensions	14.99 x 6.6 x 9.4 cm
Battery Type	Lithium Ion battery
Special Features	Deep cycle
Working Temperature	-20°C - 60°C
Voltage	12 Volts (DC)
Item Weight	5.9 kg
Warranty	11 Years

50W 12V Rigid Monocrystalline Solar Panel Details

Rated Power	50W
Type	Mono-crystalline silicon
System Voltage	12V
Cell Efficiency	20-22%
Frame Material	Aluminum
Dimensions	760 x 670 x 30 mm
Weight	approx. 25-30 lbs
Operating Temperature	-40°C to +85°C
Waterproof Rating	IP65
Front Glass	High light transmittance, low-iron tempered glass
Bypass Diodes	Integrated
Connectors	MC4
Cable Length	Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations	Pre-drilled
Service Life	25 years or more
Warranty	10 Years

20A MPPT Solar Charge Controller Details

Max Open Voltage of PV Module	75Vdc
MPP Tracking Efficiency	99.50%
Light Control Voltage	5V
Charge Algorithm	3 Stage
Battery Type	Lithium and Lead Acid Battery
Nominal System Voltage	12/24V
Rated Charging Current	20A
Battery Voltage Range	8~32V
High Voltage Disconnection	16V (24V x 2)
Duration for Absorption Charging	2 hours
Charge Loop Voltage Drop	≤0.29V
Self-consumption	≤ 9.2mA 12V; ≤ 11.7mA 24V
Equalized Charging Voltage	AGM: 14.6V; GEL: No; FLd: 14.8V
Absorption Charging Voltage	AGM: 14.4V; GEL: 14.2V; FLd: 14.6V
Floating Charging Voltage	AGM/ GEL/ FLd: 13.8V
Low Voltage Re-connection (LVR)	AGM/ GEL/ FLd: 12.6V
Low Voltage Disconnection (LVD)	AGM/ GEL/ FLd: 10.8V
Operating Temperature Range	-20℃~55℃ (To run at full rated current continuously)
LCD Temperature Range	-20℃~70℃
Humidity Range	≤95% No condensation
Protection Class	IP30
Dimension	12317848 mm
Installation Hole	108*120 ∅5 mm
Warranty	1 Year

500W Pure Sine Wave Power Inverter Details

Rated Power	500W
AC Voltage	120V
Frequency	60HZ
Resistive Load Continuous Output Power	500W
Inductive Load Continuous Output Power	450W
Capacitive Load Continuous Output Power	150±30W，PF：0.6
Waveform	Pure Sine Wave
Waveform Distortion（THD)	≤5%
Voltage Range	10～15.5Vdc
Battery Voltage	12Vdc
DC Current	52.1A(500W resistive load when 12Vdc is input)
No Load Loss	≤0.8 A(input 12Vdc)
Shutdown Mode Static Current	15mA
Maximum Efficiency	88%
Battery Type	All 12V batteries
Insurance Slice	40A*2
Battery Low Voltage Alarm	10.5Vdc Peak buzzer alarm
Battery Low Voltage Alarm Recovery	11Vdc
Battery Low Voltage Protection	10Vdc Peak buzzer alarm, bright red and green lights
Battery Low Voltage Protection Recovery	12Vdc
Battery High Voltage Protection	15.5Vdc Peak buzzer alarm, bright red and green lights
Battery High Voltage Protection Recovery	15Vdc
Over Temperature	Turn off output, bright red and green indicators, buzzer alarm, temperature reduction, automatic recovery output
Output Short Circuit	Turn off output and lock, bright red and green lights, whistle alarm, remove short circuit and restart to normal output
Overload (550W)	10S Turn off output, self-lock bright red and green lights, resume normal output after load reduction restart
Overload (650W)	1S Turn off output, self-lock bright red and green lights, resume normal output after load reduction restart
USB Output Voltage	5V
USB Output Current	2.1A
Working Temperature	0～40℃
Operating Humidity	10～90%RH
Storage Temperature, Humidity	-30℃～70℃, 10～95%RH
Weight	Net weight: 0.94Kg
Size	250.611856 mm (LWH)
Warranty	1 Year
