Rocksolar 1.88HP 60-450V Solar Brushless water transfer Pump Kit

ROCKSOLAR 1.88HP Solar DC Brushless Water Transfer Pump Kit

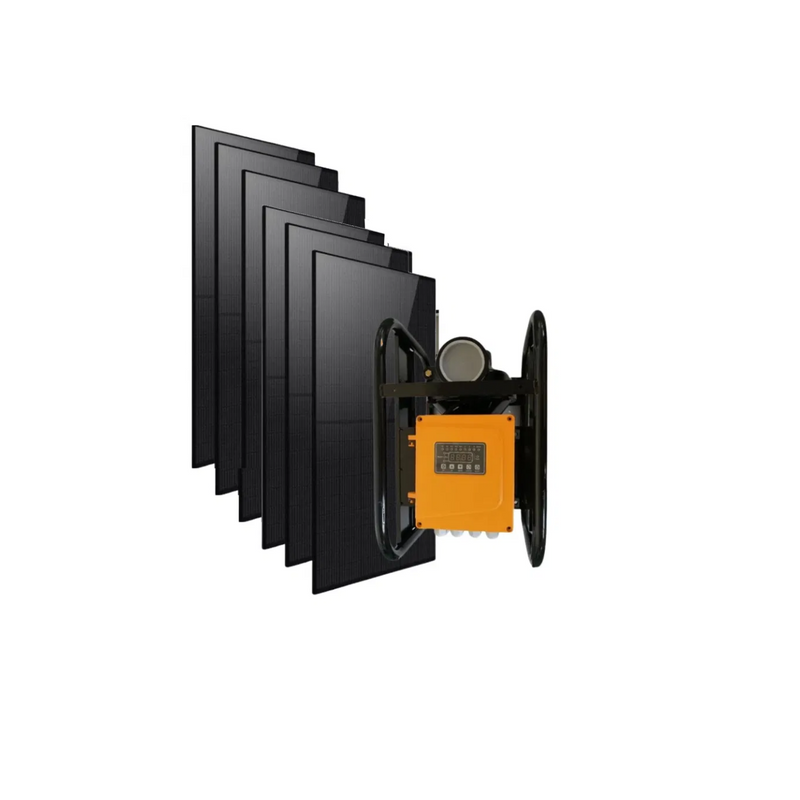

What's included:

• 1 × 1.88HP 60–450V DC brushless water transfer pump + MPPT controller
• 6 × 440W rigid monocrystalline solar panels (2,640W array)
• 10 ft 10 AWG PV cable
• 1 × 2-string waterproof DC disconnect box with 1000V 40A circuit breaker
• Mounting brackets for solar panels (optional)
• Ground or roof mount rack (optional)
• User manuals + warranty card

Key specs:

• Motor: 1.88HP DC brushless | Rated power: 1,400W
• Input: 60–450V DC (optimal range: 180–230V)
• Max flow rate: 97.3 GPM (at minimum head) | Max head: 85 ft
• Outlet: 2" diameter
• Solar array: 6 × 440W panels (2,640W)

Built for: Large livestock operations, large-scale agricultural irrigation, ponds, water features, pools, high-volume off-grid water transfer

Key features:

• Wide voltage input (60–450V) = flexible panel string configurations for large arrays
• 97.3 GPM max flow = highest flow rate in the DC transfer pump lineup — moves large volumes quickly
• 1,400W brushless motor = powerful yet quiet, confirmed by customers even near living areas
• MPPT controller — auto-adjusts to sunlight, stops and restarts automatically
• Float switch / pressure switch compatible — automates tank fill and shutoff for livestock troughs
• Dry-run auto protection — shuts off if water supply is interrupted

How the System Works

The ROCKSOLAR Solar Powered Water Pump System converts solar energy into a reliable water supply for livestock watering, irrigation, and remote agricultural applications.

The operating sequence is as follows:

1. Solar panels convert sunlight into direct current (DC) electricity.
2. The solar pump controller continuously monitors the available solar power and adjusts the voltage and current to maximize energy harvest from the solar array.
3. The controller supplies optimized DC power to the brushless submersible pump, ensuring efficient operation under varying sunlight conditions.
4. The pump draws water with its intake pipeline from the well, pond, cistern, stream, river or other approved water source and delivers it through the discharge pipeline.
5. Depending on the application:
   • Livestock Watering: Water is pumped into a storage tank or watering trough. When an optional float switch is installed, the controller automatically stops the pump once the tank reaches the preset water level and restarts pumping when the water level drops.
   • Agricultural Irrigation: Water is supplied to irrigation systems such as drip irrigation, sprinkler systems, soaker hoses, or storage reservoirs for crop, orchard, greenhouse, vineyard, pasture, and garden irrigation. Flow can be controlled using irrigation valves, timers, or storage tanks based on the specific irrigation design.
6. During periods of insufficient sunlight, such as early morning, late evening, or heavy cloud cover, the controller automatically reduces pump speed or stops the pump to protect the system and optimize energy use.
7. When adequate sunlight returns, the controller automatically restarts the pump without requiring manual intervention.

This intelligent, fully automatic operation minimizes maintenance while providing a dependable and sustainable water supply for livestock, irrigation, and other off-grid agricultural applications.
