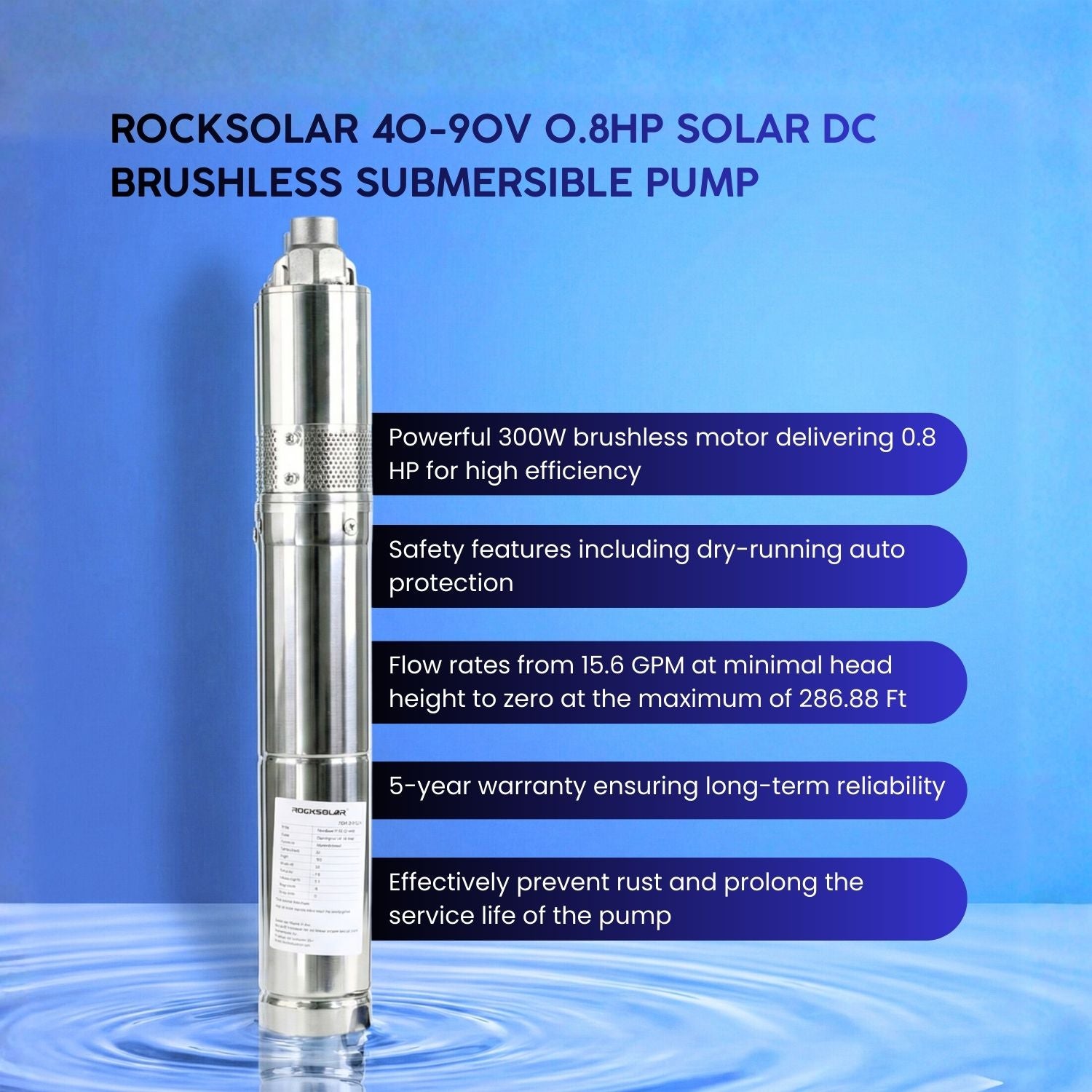

Rocksolar 0.8HP Solar submersible Pump
solar industry experience
10,000+ American
customers
days return policy
Warranty
High Efficiency DC Brushless Motor
Made of Stainless Steel
Description
Description
ROCKSOLAR 0.8HP Solar DC Brushless Submersible Pump (Pump Only)

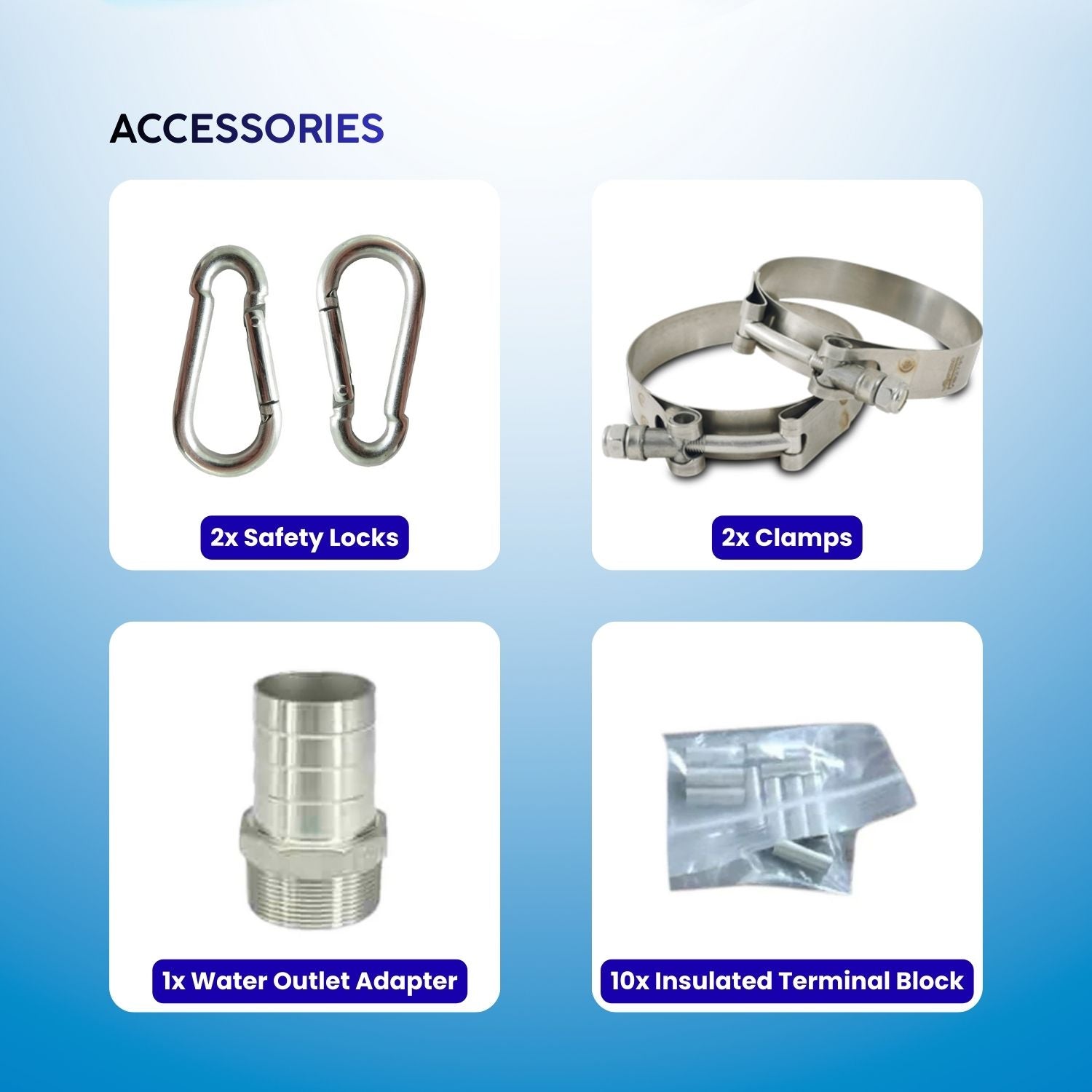

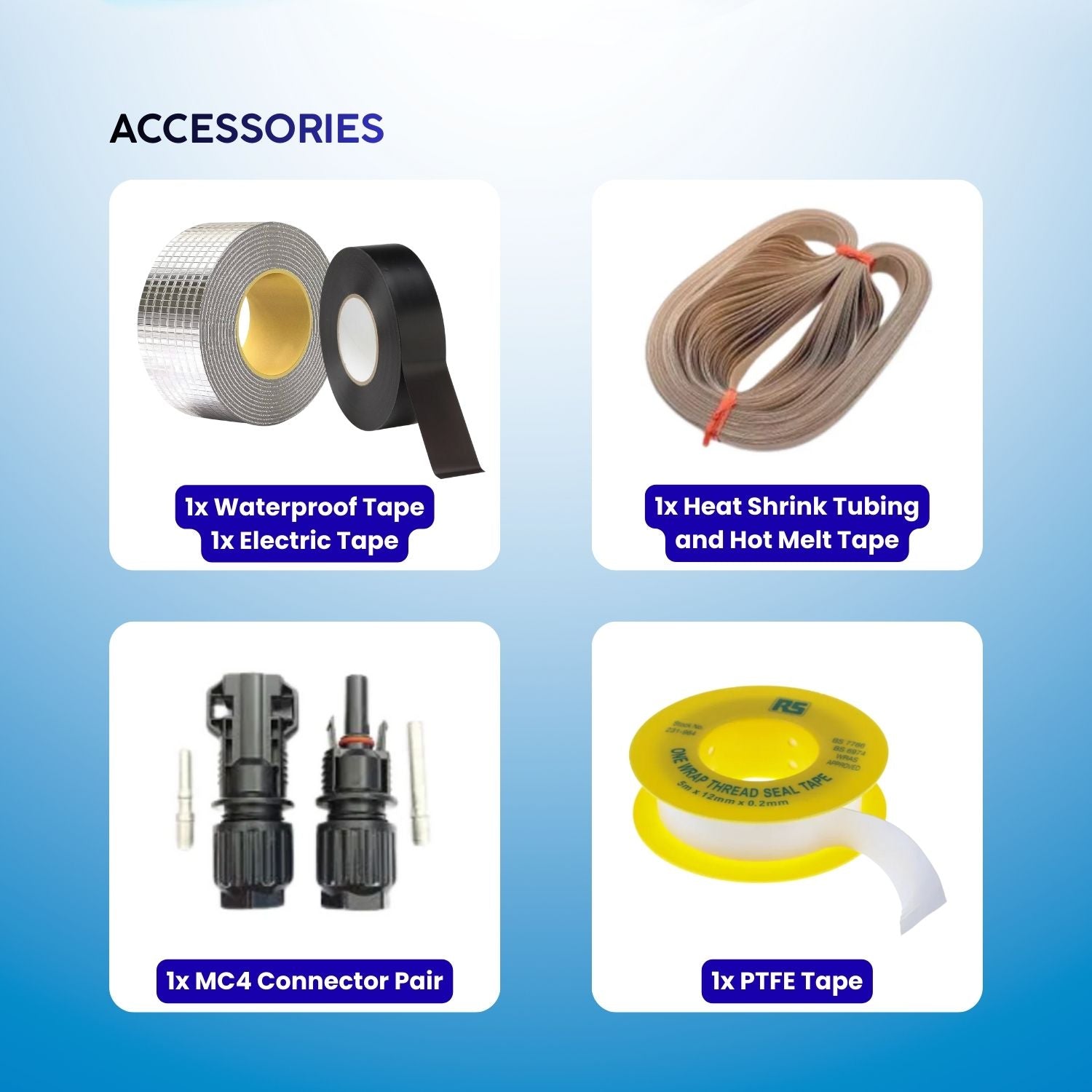

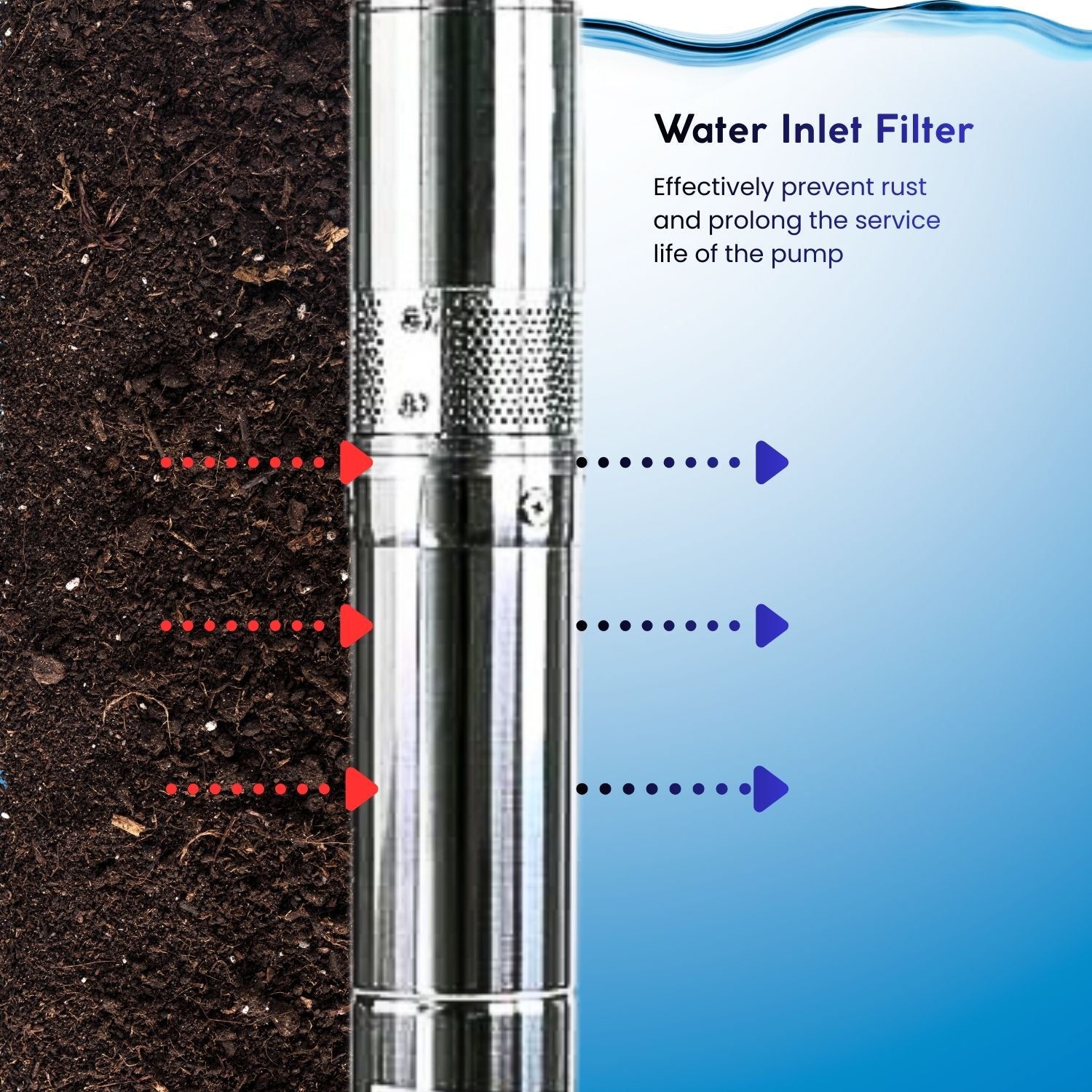

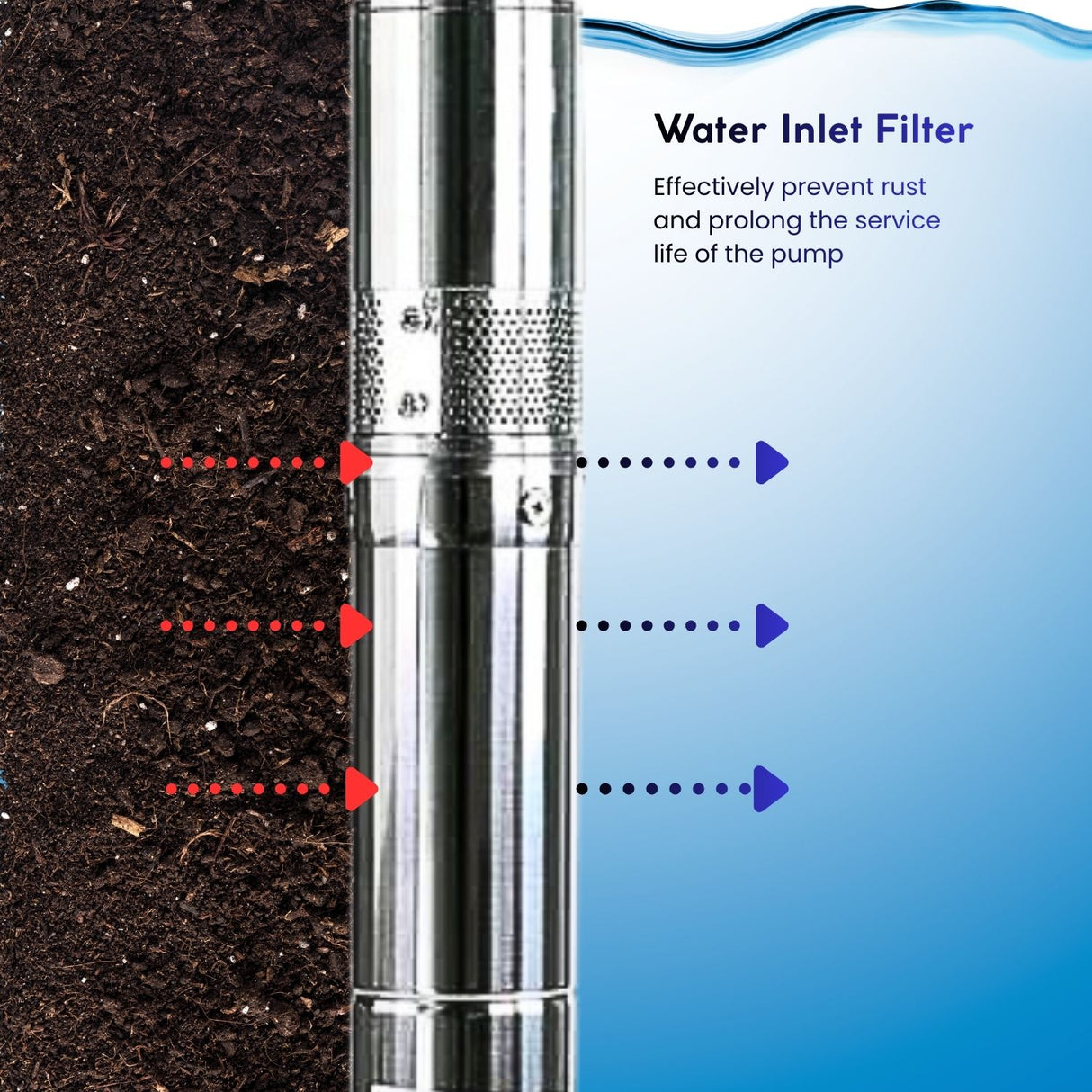

What's included: Pump + built-in controller, solar panel connectors, water intake mesh filter, user manual, warranty card — panels not included
Key specs — all models:
- Motor: 0.8HP DC brushless | Water-cooled | Permanent magnetic
- Built-in controller (no separate controller needed)
- Material: SS304 stainless steel | Pump type: impeller (centrifugal)
- Solar: 800W+ recommended | Battery compatible
Three models — choose by flow vs. depth priority:
| Model A (3SPN1-11P) | Model D (4SPN3-4P) | Model E (4SPN4-3P) | |
|---|---|---|---|
| Max flow | 15.6 GPM | 25.48 GPM | 35.1 GPM |
| Max head | 289.88 ft | 179.3 ft | 140.18 ft |
| Max pressure | 127.6 PSI | 77.63 PSI | 60.70 PSI |
| Pump body | 3" | 4" | 4" |
| Outlet | 1.5" | 2" | 2" |

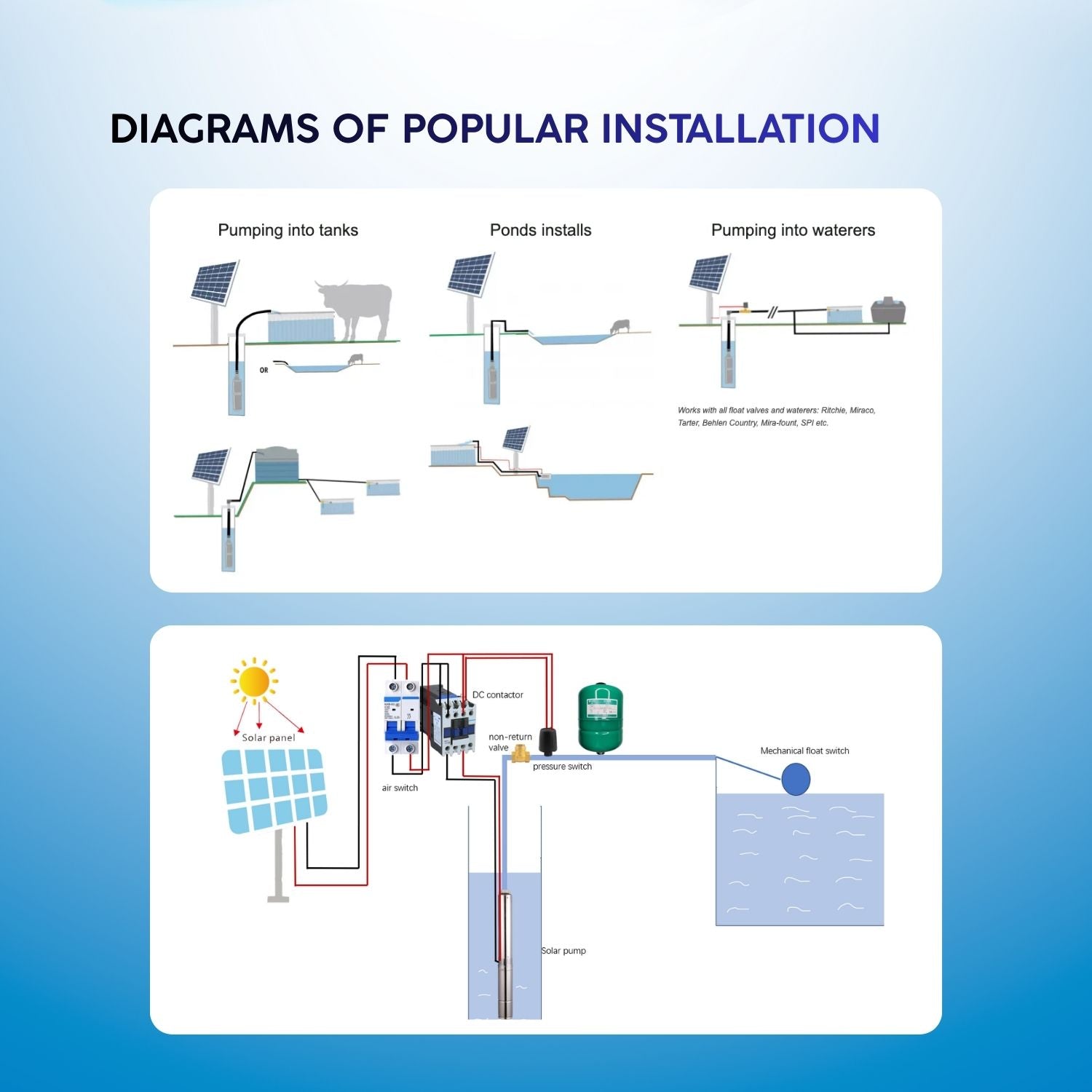

Built for: Deep wells, livestock watering, agricultural irrigation, remote cabins, off-grid properties, cisterns
Key features:
- Built-in controller — no separate controller needed, cleaner installation
- Deepest well capability in the 0.8HP lineup — Model A reaches 289.88 ft, the deepest head rating across the submersible range
- SS304 stainless steel — corrosion-resistant, built for permanent submersion
- Water-cooled motor — stays cool during extended operation
- Float switch / pressure switch compatible — automates fill and shutoff

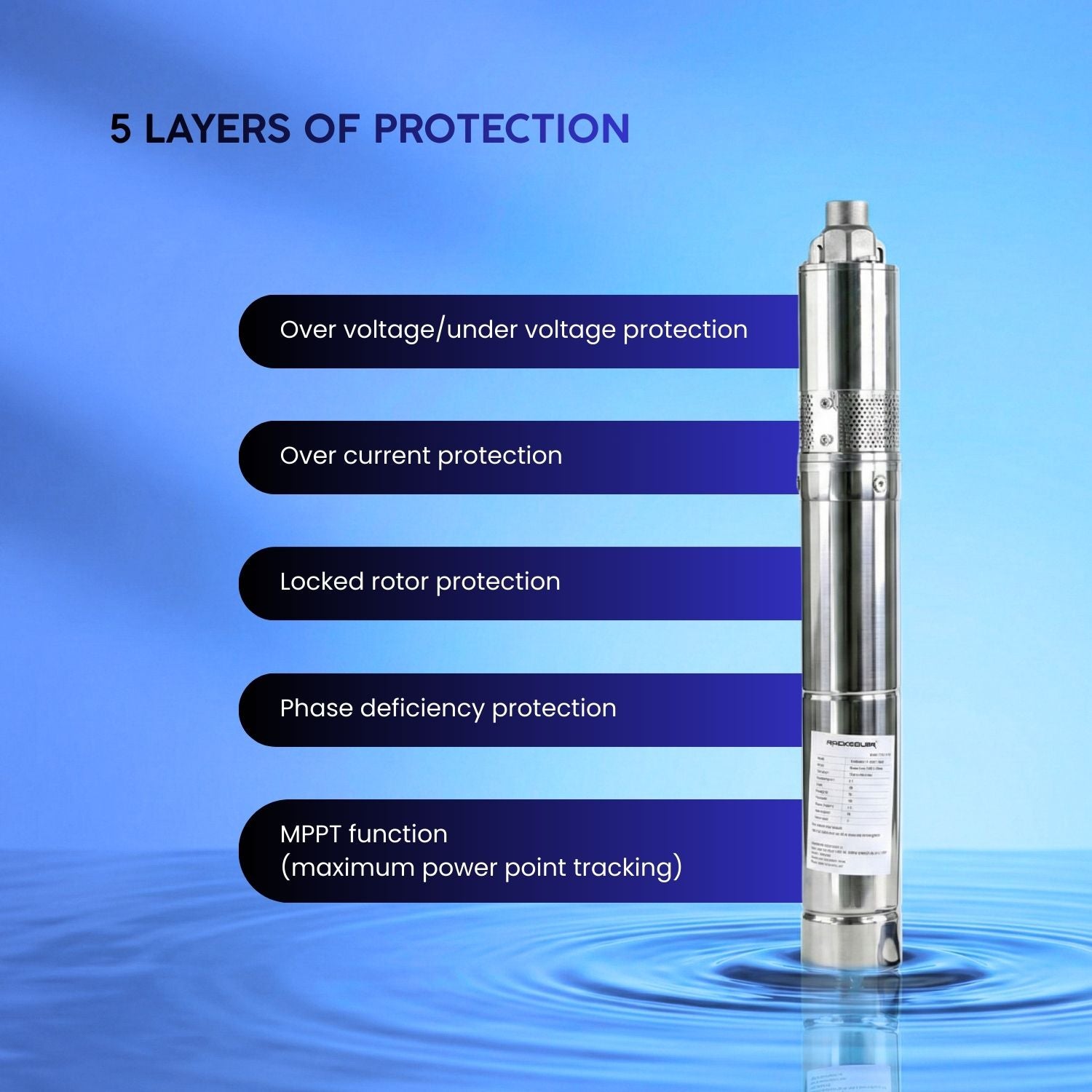

- Dry-run auto protection — shuts off if water supply is interrupted
- Maintenance-free sealed design
Warranty: 5 years
SPECIFICATIONS
SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | Rocksolar 600W Brushless Solar Pump with In-Built Controller |
| Power and Motor | 600W, 0.8 HP |
| Voltage Range | 40-90V, Best at 60-76V |
| Solar Panel Compatibility | Can be paired with two 440W solar panels |
| Max Flow Rate | 15.85 GPM at 0 meters head |
| Max Head | 289 Feet |

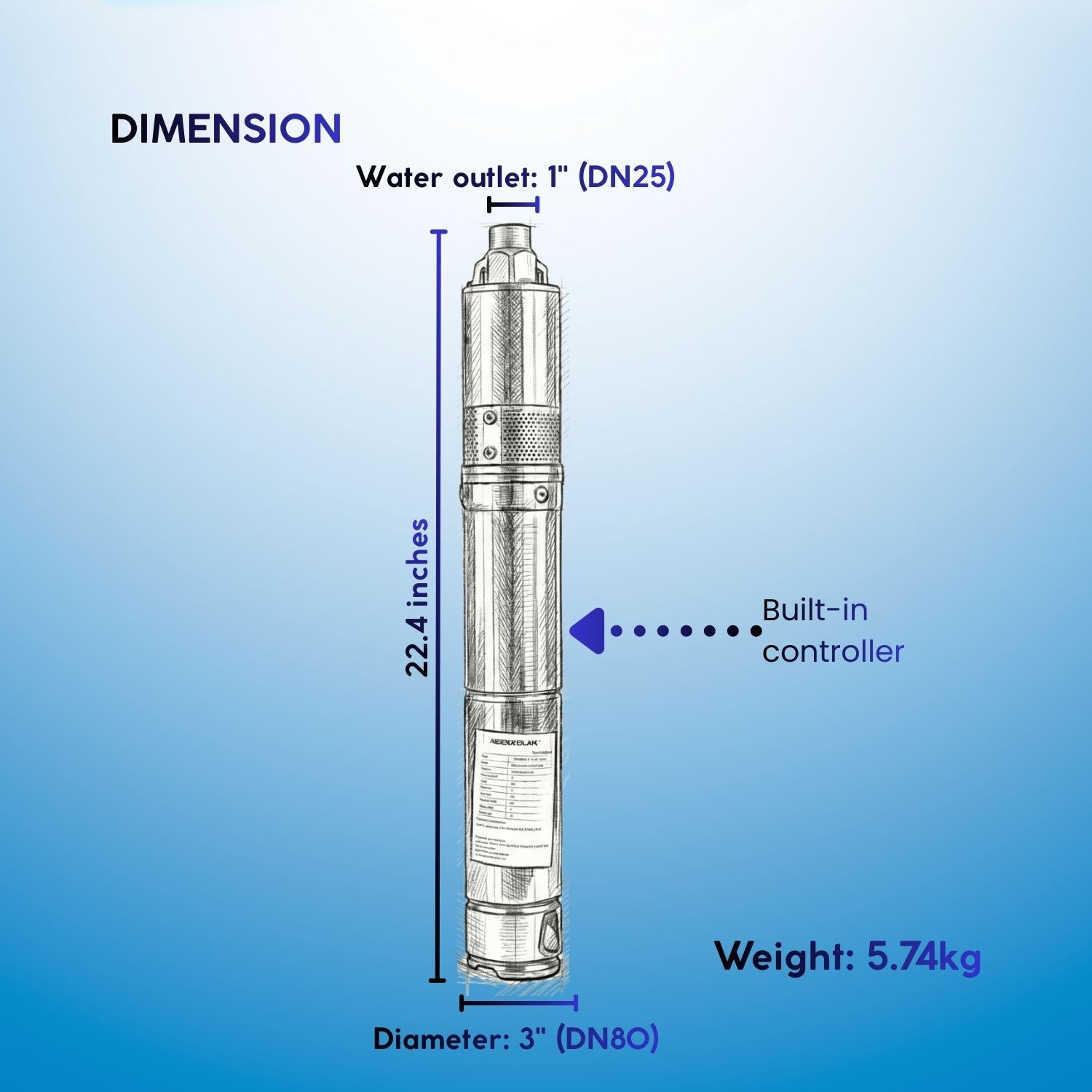

| Pump Diameter | 3 inches |
| Pump Outlet | 1.5 inches |
| GPM | 15.85, 15.06, 13.74, 12.42, 10.57, 8.45, 6.60, 4.75, 2.64, 0 |
| Height (Ft) | 0, 33, 65, 98, 131, 164, 197, 230, 262, 289 |
