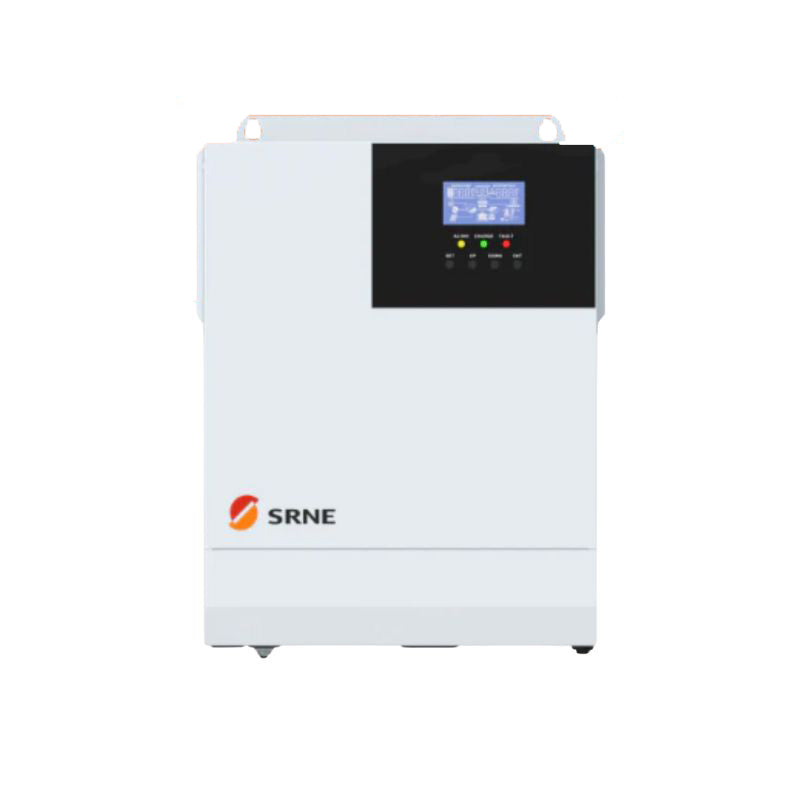

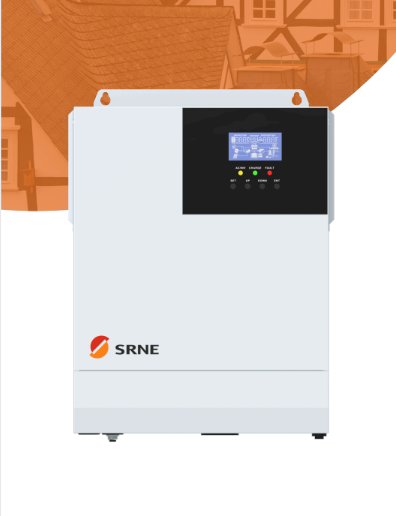

24V 3kW Single-Phase off-grid Solar Storage Inverter
$999.99
$1,699.99
Unit price /
Unavailable
Shipping calculated at checkout.
HF2430U60–100 Inverter Specifications
Model: HF2430U60–100
Inverter Output
- Rated Output Power: 3,000W
- Max. Peak Power: 6,000VA
- Output Voltage: 120Vac (Single-Phase)
- Load Motor Capacity: 2HP
- Frequency: 50/60Hz
- Waveform: Pure sine wave
- Switch Time: 10ms (typical)
Battery
- Type: Lead-acid / Lithium-ion / User-defined
- Rated Voltage: 24V
- Voltage Range: 20Vdc–33Vdc
- Max. Solar Charging: 60A
- Max. Grid/Generator Charging: 40A
- Max. Hybrid Charging: 100A
Solar Input
- MPPTs: 1
- Max. PV Power: 1,600W
- Max. Input Current: 60A
- Open Circuit Voltage: 108Vdc
- MPPT Range: 30–90Vdc
Grid / Generator Input
- Voltage Range: 90–140Vac
- Frequency Range: 50/60Hz
- Bypass Overload Current: 40A
Efficiency
- MPPT Tracking: 99.9%
- Max Efficiency: 92%
General Data
- Dimensions: 378×280×103mm
- Weight: 6.8kg
- Protection: IP20 (Indoor use)
- Temp Range: -15°C to 55°C
- Humidity: 0–100%
- Cooling: Fan cooled
- Warranty: 5 years
- Communication: RS485, CAN, USB, Dry Contact
- External Module: Wi-Fi / GPRS (Optional)
- Topology: Transformerless
Certifications
RoHs, ENG1000, IEC 62109, cETL UL17418, CSA C22.2, PSE
24V 3kW Single-Phase off-grid Solar Storage Inverter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
24V 3kW Single-Phase off-grid Solar Storage Inverter
$999.99
$1,699.99
Unit price /
Unavailable
Description
Description
- Generator connection ready
- MPPT Charge Controller integrated
- Multiple charging and on-load modes to maximise energy use
- Efficient heat dissipation, prolonging system life
- Support remote monitoring of equipment operating parameters
SPECIFICATIONS
SPECIFICATIONS
HF2430U60–100 Inverter Specifications
Model: HF2430U60–100
Inverter Output
- Rated Output Power: 3,000W
- Max. Peak Power: 6,000VA
- Output Voltage: 120Vac (Single-Phase)
- Load Motor Capacity: 2HP
- Frequency: 50/60Hz
- Waveform: Pure sine wave
- Switch Time: 10ms (typical)
Battery
- Type: Lead-acid / Lithium-ion / User-defined
- Rated Voltage: 24V
- Voltage Range: 20Vdc–33Vdc
- Max. Solar Charging: 60A
- Max. Grid/Generator Charging: 40A
- Max. Hybrid Charging: 100A
Solar Input
- MPPTs: 1
- Max. PV Power: 1,600W
- Max. Input Current: 60A
- Open Circuit Voltage: 108Vdc
- MPPT Range: 30–90Vdc
Grid / Generator Input
- Voltage Range: 90–140Vac
- Frequency Range: 50/60Hz
- Bypass Overload Current: 40A
Efficiency
- MPPT Tracking: 99.9%
- Max Efficiency: 92%
General Data
- Dimensions: 378×280×103mm
- Weight: 6.8kg
- Protection: IP20 (Indoor use)
- Temp Range: -15°C to 55°C
- Humidity: 0–100%
- Cooling: Fan cooled
- Warranty: 5 years
- Communication: RS485, CAN, USB, Dry Contact
- External Module: Wi-Fi / GPRS (Optional)
- Topology: Transformerless
Certifications
RoHs, ENG1000, IEC 62109, cETL UL17418, CSA C22.2, PSE
